What Is CAE Software? Computer-Aided Engineering from Simulation to Signoff

Beyond the Acronym—What CAE Actually Does

Most engineers assume computer-aided engineering (CAE) equals finite element analysis—a limiting and outdated perception. Modern CAE integrates multiple physics domains: structural mechanics (MSC Nastran for linear problems, Marc for nonlinear, Dytran for explicit/crash), computational fluid dynamics (Fidelity CFD GPU-native CFD, Cradle CFD for industrial applications), thermal analysis (Celsius Thermal Solver for electronics), acoustics (Actran for noise-vibration-harshness), and dynamics (Adams for multibody systems).

These disciplines now converge in unified platforms—Cadence's portfolio, expanded through acquisitions of BETA CAE (2024) and MSC Software (February 2026), now encompasses ANSA preprocessing, META post-processing, EPILYSIS solvers, and FATIQ fatigue analysis alongside the gold-standard MSC Nastran and a comprehensive suite spanning manufacturing simulation (Simufact, Dytran), materials modeling (Digimat), and AI-driven digital twins (ODYSSEE). This integration transforms product development: virtual prototyping replaces iterative physical testing, revealing failure modes weeks before prototype hardware arrives. The scope expands beyond stress analysis to chip-to-system design validation, combining electromagnetic simulation (Clarity 3D Solver, Sigrity signal/power integrity) with mechanical and thermal workflows. For engineers evaluating competitive designs, this breadth of integrated capability compresses decision cycles from months to days—a decisive advantage in product development.

How CAE Integrates Multiple Physics Domains

Modern CAE succeeds because multiple physics interact. A smartphone processor experiences mechanical stress (assembly forces, impact), thermal load (power dissipation), and electromagnetic effects (signal timing, antenna coupling) simultaneously. Addressing these interdependencies requires an integrated simulation where outputs from one solver feed as inputs to another. Coupled workflows iterate seamlessly: thermal analysis predicts junction temperatures; material properties vary with temperature and feed into structural analysis; vibration patterns affect fatigue life under cyclic loading. This coupling multiplies predictive accuracy far beyond what isolated tools achieve.

Cadence's acquisition strategy reflects this reality—building a platform where finite element analysis (FEA) (Nastran, Marc), CFD (Fidelity, Cradle), thermal (Celsius), and electromagnetic solvers (Clarity, Sigrity) share common preprocessing (ANSA, Patran), unified meshing infrastructure, and advanced post-processing (META).

Structural FEA—MSC Nastran for Linear, Marc for Nonlinear, Dytran for Explicit/Crash

FEA discretizes continuous geometry into finite elements and solves structural equations at discrete points. MSC Nastran—the gold standard in FEA—handles linear elasticity (stress-strain relationships), normal modes (natural frequencies), and frequency response with industry-proven accuracy. For nonlinear problems—contact, material plasticity, large deformations—Marc provides robust algorithms that capture real physics. Explicit dynamics through Dytran solve crash, impact, and rapid deformation problems where implicit methods struggle. FEA within modern CAE automates preprocessing: feature suppression removes design details irrelevant to physics, mid-surface extraction handles sheet-metal assemblies efficiently, and adaptive meshing focuses elements where stress concentrations emerge. A smartphone drop test requires Dytran's explicit solver; automotive crash simulation—validating regulatory compliance—relies on proven Nastran and Marc capabilities.

Advanced capabilities, including buckling analysis (detecting instability in slender structures), vibration analysis (mode shapes guiding acoustic design), fatigue assessment (predicting cycles-to-failure under operating loads), and topology optimization (automatically refining geometry for maximum stiffness per unit mass), address real engineering constraints. Aerospace structures must be lightweight yet withstand extreme loads; automotive components must survive 10-year service with minimal warranty exposure. FEA within CAE bridges from design intent to performance validation, catching issues before manufacturing commitment.

CFD and Fluid Dynamics—Fidelity CFD (GPU-Native LES) and Cradle CFD

Computational fluid dynamics solves the Navier-Stokes equations to predict velocity fields, pressure distributions, and turbulence. Cadence Fidelity CFD—GPU-native and leveraging large-eddy simulation (LES) for unsteady flows—enables thermal management optimization (chip cooling, heat sink design) and aerodynamic prediction (drag reduction, lift). Cradle CFD extends coverage to industrial applications: mixing processes, separation efficiency, thermal-hydraulic systems. Energy management increasingly drives CFD adoption. Data centers dissipating megawatts use CFD to optimize cooling airflow, reducing operating costs by 15-25 percent through refined air distribution and lower fan power.

Electric vehicle thermal management—cooling batteries, power electronics, and cabin climate—requires transient CFD simulation tracking temperature evolution over duty cycles. Fluid-structure interaction (FSI) couples CFD results to mechanical deformation, critical for aircraft wing flutter prediction and pump blade fatigue. The integration of CFD with structural and thermal analysis in unified CAE enables engineers to predict coupled phenomena: aerodynamic heating during transonic flight, thermal-structural coupling affecting component fatigue, and fluid-induced vibration phenomena.

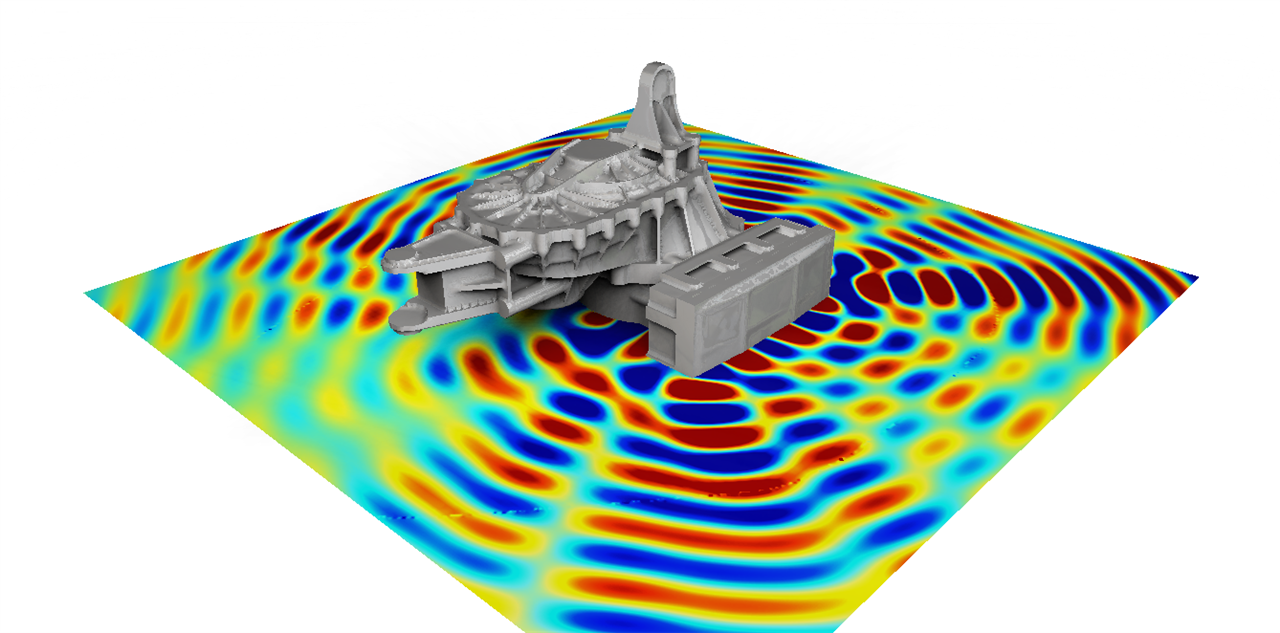

Thermal, Acoustic, and Electronics—Celsius, Actran, and Sigrity

Thermal analysis solves the heat conduction equation to predict temperature distributions and thermal stress. Cadence Celsius specializes in electronics thermal management—predicting reflow soldering outcomes during manufacturing, ensuring silicon junction temperatures remain within operating limits. Coupling thermal with structural analysis reveals thermal stress: warping, cracking, or solder joint fatigue. Acoustic simulation through Actran addresses noise-vibration-harshness (NVH): predicting radiated noise from vibrating structures, identifying dominant frequencies driving customer perception, and guiding material and geometry modifications to reduce sound pressure.

Signal and power integrity (Sigrity) ensure high-speed digital circuits function reliably—crosstalk prediction, impedance discontinuity detection, and timing analysis across interconnect layers prevent costly silicon respins. These disciplines converge in system-level simulation: power electronics dissipate heat (thermal analysis), affecting material properties and signal timing (electromagnetic effects). Modern CAE platforms unite these domains, enabling accurate prediction of complex failure mechanisms across electrical, thermal, and mechanical scales.

CAE vs CAD—Complementary, Not Competing

CAD and CAE address different questions in the design process. CAD—computer-aided design—creates and modifies geometry: sketches, solid models, assemblies, technical drawings. CAD is about shape, manufacturing representation, and design intent. CAE—computer-aided engineering—simulates physics on that geometry: stress under load, thermal gradients, fluid flow, electromagnetic fields. CAD answers "What does it look like?" CAE answers "Will it work?"

They form an inseparable design-to-simulation pipeline: design teams iterate geometry in CAD; engineers validate performance through CAE analysis; insights drive refinement. This feedback loop is where engineering excellence emerges. The evolution toward integrated design-engineering environments—where CAD geometry connects directly to CAE solvers without manual translation—reflects this reality. Cadence's platform, spanning electronics EDA (Clarity, Sigrity) and mechanical CAE (Nastran, Fidelity, and Celsius), enables "what-if" exploration where designers modify geometry and immediately see physics impacts, compressing convergence to optimal designs.

The CAE Workflow: From Geometry to Insight

Effective CAE execution follows a structured workflow: geometry preparation, meshing, physics setup, solver execution, and post-processing. Understanding each phase reveals where automation and expertise create competitive advantage.

Preprocessing with ANSA, Patran, and Modern Automation

CAE begins with geometry import from CAD (STEP, IGES, Parasolid formats). ANSA—Cadence's universal preprocessor from the BETA CAE acquisition—automates defeaturing: removing design details irrelevant to physics (small fillets, internal cooling channels) while preserving accuracy-critical features. Defeaturing requires engineering judgment: remove too little and mesh explodes in element count; remove too much and results become unreliable.

Modern CAE platforms automate heuristics, but expert manual intervention often improves efficiency. Meshing discretizes the domain into elements—tetrahedra for solid volumes, triangles for surfaces. Mesh quality directly affects convergence and solution accuracy; poor element aspect ratios, skewed shapes, or inadequate refinement in stress concentration regions introduce error. Advanced meshing strategies employ adaptive refinement: coarse initial mesh, solve, identify high-error regions, refine locally—reducing overall element count while maintaining accuracy. For CFD applications, boundary layer meshing near walls is critical to resolving viscous effects; inadequate boundary layer resolution causes convergence failure or incorrect drag and heat transfer prediction.

Solver Execution—Choosing the Right Engine

Physics definition specifies boundary conditions (applied loads, fixed constraints, prescribed temperatures, velocity inlets) and material properties (Young's modulus, conductivity, viscosity). Solver algorithms translate discretized equations into matrix systems, then solve for nodal unknowns. Direct solvers (Gaussian elimination) suit smaller problems; iterative solvers (Krylov subspace methods like GMRES, BiCG) scale to millions of elements. Modern solvers exploit multicore and GPU acceleration—Fidelity's GPU-native architecture delivers orders-of-magnitude speedups for CFD.

Convergence checking ensures solution stability; nonlinear problems require iteration until residuals fall below tolerance, adding computational expense but capturing material plasticity and contact nonlinearity critical for accurate prediction. Experienced CAE practitioners monitor solver residuals and solution fields during execution, catching divergence early rather than discovering it after days of wasted computation. Many modern CAE platforms provide real-time solver monitoring dashboards enabling remote oversight and early intervention.

Post-Processing with META and Patran—Visualization and Design Decisions

Solving equations produces nodal values; extracting engineering insight requires post-processing. META—Cadence's post-processor—provides visualization: color-mapped stress contours, deformed geometry overlays, vector fields for velocity distributions. These communicate results to stakeholders. Quantitative assessment follows: peak stress, safety factor, pressure drop, thermal gradient. Design optimization iterates: adjust geometry, remesh, resolve, evaluate. High-throughput workflows parametrize geometry (radius, thickness, material) and run dozens of simulations exploring the design space.

Machine learning increasingly augments traditional CAE, training surrogate models on simulation databases to predict performance without re-solving, enabling real-time optimization during design reviews. ODYSSEE—Cadence's AI and digital twin platform—takes this further, predicting long-term product behavior and supporting continuous optimization across product lifecycles. Post-processing rigor determines decision confidence: a single stress contour can mislead if viewed in isolation—stress singularities at geometric discontinuities require understanding mesh refinement effects. Validated metrics like von Mises stress averaged over elements provide more reliable indicators. Advanced post-processing extracts probabilistic insight: if 1,000 manufactured parts vary slightly in geometry and material, what percentage exceeds safety limits? Uncertainty quantification in CAE provides risk assessment, which is increasingly critical for safety-critical applications.

Where CAE Fits in Modern Product Development

CAE occupies a critical position between design conception and manufacturing reality. Before CAE matured, organizations relied on physical prototyping—build, test, fail, redesign, iterate—consuming months and capital. Virtual prototyping through CAE compresses this timeline decisively. Automotive suppliers predict crashworthiness and NVH before first metal; aerospace engineers validate aeroelastic stability before flight test; electronics manufacturers assess thermal margin and signal integrity before first silicon. The business case is straightforward: simulation-driven iteration reduces physical prototypes by 60-80 percent, accelerates time-to-market, and reduces development cost.

Regulatory compliance amplifies CAE's value: medical device manufacturers submit CAE-supported biocompatibility and fatigue analysis to FDA; automotive suppliers provide crash simulation data to National Highway Traffic Safety Administration (NHTSA); these analyses carry legal and liability weight. Across industries—automotive, aerospace, energy, electronics, medical devices—CAE has become non-negotiable. The integration of CAE into early-stage design conversations ("shift-left") moves performance validation from late-stage prototype testing into concept development. This shift eliminates costly rework and enables exploration of more design alternatives within fixed budgets.

Industry leaders embed CAE simulation into design reviews, making performance data as visible as cost and schedule. Cadence's integrated platform—unifying structural FEA, multiphysics CFD, thermal analysis, electronics simulation, and digital twin intelligence—serves this full lifecycle, from concept validation through manufacturing optimization and field service prediction.

Frequently Asked Questions

What does CAE stand for?

CAE stands for computer-aided engineering. It encompasses software tools and methodologies for simulating physical phenomena—stress, heat transfer, fluid flow, electromagnetic fields—on digital geometry. CAE enables engineers to predict product behavior before physical prototyping, reducing development cost and cycle time while identifying design flaws early when changes are inexpensive.

Is CAE the same as FEA?

No. FEA is one methodology within the broader CAE discipline. FEA addresses structural mechanics—stress, deformation, vibration. CAE includes FEA plus computational fluid dynamics (CFD), thermal analysis, electromagnetic simulation, and coupled multiphysics workflows. CAE is the umbrella; FEA is one specialized tool under it.

What software is used for CAE?

A wide range of software is used for CAE, depending on the type of simulation and analysis required. Cadence offers MSC Nastran (gold-standard FEA), Marc (nonlinear), Fidelity CFD (GPU-native CFD), Celsius (electronics thermal), Adams (dynamics), Actran (acoustics), Clarity (3D EM), Sigrity (signal/power integrity), Simufact (manufacturing), Digimat (materials), and ODYSSEE (AI digital twin). Selection depends on the physics scope, performance requirements, and integration with existing design systems.

How is CAE different from CAD?

Computer-aided design (CAD) creates and modifies geometry; CAE simulates physics on that geometry. CAD answers "What does it look like?" while CAE answers "Will it work?" They are complementary—CAD produces the geometry, CAE validates its performance, and guides iterative refinement toward optimal designs.

Why should manufacturers invest in CAE?

CAE reduces development time, minimizes physical prototypes (60-80 percent fewer), cuts testing costs, and accelerates time-to-market. It enables risk assessment before manufacturing, supports regulatory compliance with simulation-backed evidence, and identifies design improvements earlier when modifications are inexpensive. For competitive industries—automotive, aerospace, electronics, medical devices—CAE is cost-justified and strategically essential for maintaining market position.
