"3D Mapper" button does not displayed. OrCAD PCB Designer STD 17.4

KAnalog 26 days ago

I tried to set the ".step" file into the ".dra" file I created, but the 3D mapper button does not appear.

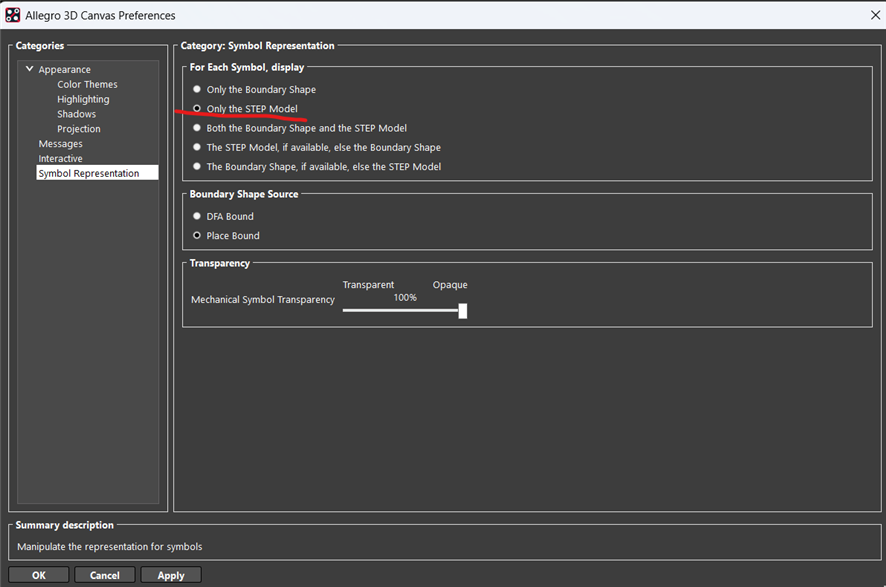

I already checked this on the preference page.

However, the button does not exist on the window. It does not exist on the View>Windows.

0 mahimag 24 days ago

Hi KAnalog , Please check in View > Windows and enable the 3D Mapper tab if not enabled.
Cancel
Vote Up 0 Vote Down

Sign in to reply

Verify Answer

Cancel
0 KAnalog 24 days ago in reply to mahimag

Hi mahimag , Thank you for your comment. I already tried it, but there was no tab in View > Windows. (I wanted to add screen capture here, but I couldn't due to error.)
Cancel
Vote Up 0 Vote Down

Sign in to reply

Verify Answer

Cancel
0 mahimag 22 days ago in reply to KAnalog

Can you check your hotfix version by going to Help > About in tool? 3D Mapper is introduced in later hotfixes for 17.4
Cancel
Vote Up 0 Vote Down

Sign in to reply

Verify Answer

Cancel
0 KAnalog 21 days ago in reply to mahimag

mahimag
My version is "17.4-2019 S008". Is it not supported in this version? In that case, is there a way to add a .step file?
I'd like to update the hotfix, but my support license was expired this summer. The distributor's response was extremely slow, then the license expired while we were processing the renewal, so I couldn't renew it.
Cancel
Vote Up 0 Vote Down

Sign in to reply

Verify Answer

Cancel
+1 mahimag 21 days ago in reply to KAnalog

Yes, you will not have 3D Mapper in hotfix 8. You can use Setup > Step Package Mapping dialog box.
