Accurate S-Parameter Simulations Using Spectre Simulator in Virtuoso Studio

Introduction: Designing Beyond DC and Time Domain Limits

Imagine validating high-speed interconnect or RF block operating in the multi-GHz range. Traditional modeling and simulation approaches quickly reach their limits when used to validate high speed interconnect or RF blocks operating in the multi-GHz range. When signals begin to propagate like waves, ringing and reflection dominate behavior and frequency-dependent losses become significant, resulting in issues that are only identified after integration..

In these designs, engineers use S-Parameters to describe how signals behave as traveling waves across ports, rather than simple voltages and currents at nodes. This representation is essential for modeling RF blocks, transmission lines, packages, and structures extracted using electromagnetic (EM) simulations.

The training course "S-Parameter Simulations Using Spectre in Virtuoso Studio" aims to help designers accurately model, validate, analyze, and debug S-Parameters within the Virtuoso and Spectre simulation environments. It bridges theoretical understanding with simulation-ready workflows.

Why S-Parameter Simulation Is Essential

S-Parameters are often generated from EM solvers or measured data and then reused across multiple designs. However, poor quality S-Parameter data can lead to serious downstream issues, as described in the table below.

Common Challenges Without Proper S-Parameter Validation

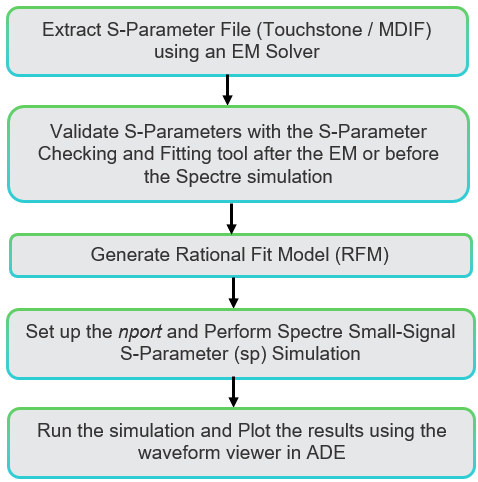

Suggested S‑Parameter Simulation Flow in Virtuoso and Spectre

This workflow ensures that Spectre-compatible, high-quality S-parameters are utilized in simulations.

The training course "S-Parameter Simulations Using Spectre in Virtuoso Studio" provides designers with the knowledge and tools necessary to work effectively with frequency-domain models in modern high-speed and RF designs. Instead of viewing S-Parameters as opaque data files, this course teaches engineers how to understand, visualize, validate, and debug them using Cadence-supported workflows.

Topics Covered in the Course

1. Introduction to S-Parameters: The course begins with foundational concepts, including:

• What S-Parameters represent in frequency domain analysis
• Reflection and transmission behavior across ports
• Understanding magnitude and phase as part of RF characterization

All the learners—whether from RF or mixed-signal backgrounds—share a common baseline.

2. S-Parameter Modeling and Small-Signal Analysis in Spectre: The core of the course is using S-Parameters directly within the Spectre simulator. Topics include:

• S-Parameter modeling best practices
• Performing small-signal S-Parameter analysis
• Understanding how Spectre consumes and interprets S-Parameter data

This section connects abstract S-Parameter modeling to real simulation workflows.

3. S-Parameter Quality Checking and Fitting Tool: One of the most important components of the course is the S-Parameter Quality Checking and Fitting Tool, designed to:

• Provide EM modelers with suggestions for more effective extraction
• Detect causality, passivity, and bandwidth issues
• Identify problematic S-Parameter datasets early
• Generate reliable Rational Fit Models (RFMs) for simulation use

The tool helps reduce downstream simulation failures by ensuring only high-quality S-Parameter data reaches Spectre.

4. Debugging and Comparing S-Parameters: In this course, you will:

• Debug issues found during S-Parameter checking
• Compare multiple S-Parameter datasets
• Evaluate differences between EM extracted, fitted, and measured data

These capabilities are critical when validating models across different extraction or measurement sources.

5. Working with MDIF Data: The final section of the course covers running the S-Parameter Quality Checking and Fitting tool on the Measurement Data Interface File (MDIF) formats.

For more details, kindly navigate to the training: S-Parameter Simulations Using Spectre in Virtuoso Studio

Take the Training Accelerated Way

The faster you finish your online training, the sooner you can claim your Digital Badge. Want to know how accelerated learning works? Our video walks you through the pre-quiz, navigation, and essential features. This is just the beginning. We're regularly adding new Accelerated Learning titles. Accelerated Learning courses are marked with this symbol in our Learning Maps

How to Enroll

This link gives you more information regarding this course, and the link to enroll: S-Parameter Simulations Using Spectre in Virtuoso Studio.

This course includes slides, audio instruction, and downloadable lab exercises, in line with the lecture content.

Earn Your Badge

This training has a Digital Badge. You can earn this badge by passing the exam for this course. Training is also available as "Blended" or "Live".
