Demystifying Standard Cell Characterization with Cadence Liberate

In the constantly evolving field of semiconductor design, accuracy and performance are essential. A key step in creating high-quality chip designs is the characterization process, which determines how circuits perform under different specified conditions, including Process, Voltage, and Temperature (PVT) variations. This is where the Characterization tool Cadence Liberate acts as a transformative solution.

Why Standard Cell Characterization Matters

Imagine you are designing a high-speed processor for a next-generation smartphone. Your design incorporates millions of standard cells, including NAND gates, NOR gates, and flip-flops. Each of these cells must be accurately characterized to ensure that the chip meets its timing, power, and noise specifications.

Let’s say you're using a BUFFER cell in a critical path; inaccurate modeling of its delay or power consumption could result in timing violations, increased power usage, or even chip failure. This is where Cadence Liberate proves to be essential. It allows you to simulate and model the behavior of these cells under various process, voltage, and temperature (PVT) conditions, as well as various slew rates and load conditions. This ensures that your design remains robust and reliable.

Why Cadence Liberate Stands Out

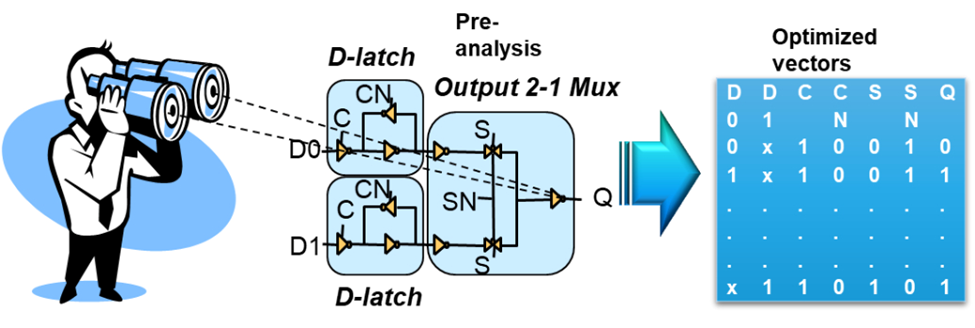

Liberate automates the creation of Liberty (.lib) files, which are essential for synthesis, simulation, and sign-off. Its unique Inside View technology extracts deep insights from SPICE netlists and process models, enabling:

• Pre-analysis at transistor level: Enhances performance by eliminating false and redundant vector sequences and automatically setting initial conditions.
• Static and dynamic techniques: Determine setup information like input/output and timing bounds.
• Embedded SKI Spectre engine: Eliminates the need for repeatedly invoking an external SPICE simulator. This is particularly impactful when running hundreds of thousands of simulations, where the cumulative overhead can become substantial. The outcome is a 2–3× speed up in simulation throughput.
• Timing accuracy: Tightens bounds for calculating timing constraints (e.g., setup and hold times) and enables efficient characterization for high-quality libraries.

Cadence Liberate supports multiple models, including NLDM, CCS, ECSM, CCSN, and LVF. It also offers manual flexibility to define arcs, loads, and waveforms for precise tuning.

Learn How to Do This Yourself

Our Characterizing Standard Cells Using Liberate Course takes you from concept to implementation, covering:

1. Timing characterization concepts and modeling
2. Power and noise characterization concepts and modeling
3. Liberty file structure
4. Setting up characterization using the Liberate tool
5. Characterization and modeling of standard cells using Liberate
6. Debug methods for timing and power characterization

The course not only teaches theory but is also deeply integrated with Cadence’s product ecosystem. Tools like Spectre for transistor-level simulation and Liberate for characterization are central to the workflow. These tools support a wide range of modeling formats, including:

• NLDM: Conventional delay modeling using 2D lookup tables
• CCS/ECSM: Advanced waveform-based timing models
• CCSN/ECSMN: Noise modeling for signal integrity
• CCSP/ECSMP: Power modeling using current waveforms

Advanced formats are essential for modern designs, especially at 7nm and below, where traditional models fall short in capturing nonlinearities and parasitic effects.

Ready to Master Standard Cell Characterization?

For lab instructions and a downloadable design, enroll in the online training courses of your interest, Characterizing Standard Cells Using Liberate
