Electrically Aware Design: Catch EM and IR Drop Issues Early with EAD

As designs move to advanced nodes, interconnect reliability is pushed to its limits. Narrower metal widths, higher current densities, and dense routing significantly increase exposure to electromigration (EM)—a failure mechanism that can unexpectedly undermine long‑term chip performance and reliability. When these issues surface late, the cost is paid in rework due to increasing wire widths, via insertions, which in turn can result in placement changes leading to schedule slip.

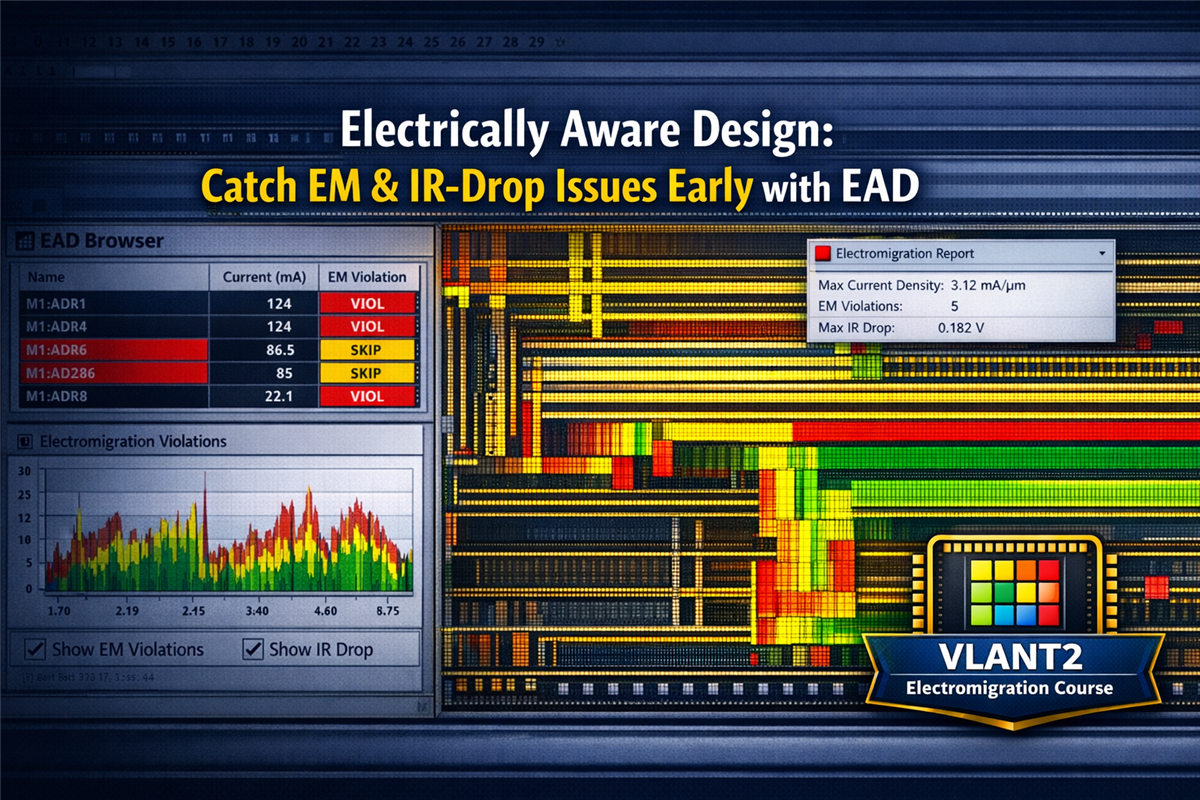

This Virtuoso Layout for Advanced Nodes: T2 Electromigration course teaches you how to use Virtuoso’s EAD flow to prevent, find, and fix electromigration issues in your layout. By identifying problems early, you can avoid rework and develop the hands‑on reliability skills needed for advanced‑node design.

Why Electrically Aware Design Matters

Traditional layout workflows rely heavily on signoff‑stage checks to flag EM and IR‑drop issues. At advanced nodes, that approach is no longer sufficient. The EAD methodology integrates electrical analysis directly into layout creation, allowing designers to evaluate reliability continuously—not just at the end.

Electrically Aware Design (EAD) enables designers to analyze EM and IR drop issues during layout creation, using real-time simulation data to ensure electrically correct designs and avoid costly late-stage rework. Building on this, Virtuoso Simulation Driven Routing (SDR) takes it further by automatically sizing wires and vias based on current, helping achieve EM-compliant, reliable layouts with a true correct-by-construction approach.

This course shows how EAD enables:

Key Topics Covered

After completing the course, you will learn how to:

• Understand and apply the Electrically Aware Design flow
• Execute simulations to create the electrical current data needed for EMIR checking
• Optionally create datasets for EM and IR-drop analysis when simulation is not yet available
• Perform pre-layout EM checks
• Run RC parasitic extraction on partial and complete layouts
• Create datasets for EM and IR‑drop analysis
• Visualize parasitics and check for violations, such as cross talk coupling, using the EAD Browser
• Run EM checks and resolve violations interactively
• Re-simulate designs in ADE Assembler using extracted parasitics at any time during layout creation
• Analyze lower-node complexities and layout-dependent effects (LDE)

These topics are reinforced through structured labs that closely mirror real-world advanced-node design challenges.

Who Should Take it?

This course is a great fit if you are:

• A student (or early‑career engineer) aiming to build job‑ready skills in advanced‑node custom layout and reliability‑aware flows.

• A layout professional working on analog/mixed‑signal/custom blocks who wants more confidence in EM/IR analysis and closure using Virtuoso^® EAD.

Conclusion

Enroll in the Course Virtuoso Layout for Advanced Nodes: T2 Electromigration to learn more about Electromigration (EAD Flow) in Virtuoso Studio.
