Accelerating AI Silicon Design with AI-Driven Flows

9 Sep 2026 • 4 minute read

AI silicon complexity is rising faster than engineering teams can scale with traditional workflows. As designs push into advanced nodes, chiplets, and 3D-IC architectures, how these designs are developed, optimized, and converged become crucial. It involves coordinating more decisions, across more domains, under tighter schedules and higher expectations for power, performance, area, reliability, and time to tapeout. In that environment, AI is no longer optional.

It is becoming essential to help engineers manage complexity, accelerate exploration, and move from tool-by-tool execution toward more intelligent, goal-driven design workflows.

In this final post in our four-part series, we focus on how Cadence is applying AI-driven technologies within TSMC-certified design flows to help customers optimize more effectively, reduce iterations, and improve designer productivity for advanced AI silicon. The foundation is the proven design infrastructure Cadence and TSMC have built together across digital, custom/analog, multiphysics, 3D-IC, and signoff. Building on that foundation, Cadence AI technologies help teams explore more options, converge faster, and move toward tapeout with greater confidence.

Why Agentic AI Is Now Essential for Advanced Semiconductor Design

Modern chip designs now span trillions of transistors, with a mix of reused IP and substantial new IP innovation integrated into increasingly complex systems. Delivering these designs requires thousands of engineers running millions of simulations and formal tests, consuming billions of compute hours each year. Individual IP projects can take months to complete, with verification and debugging cycles often stretching to several weeks.

As design complexity continues to accelerate, the traditional model is reaching its limit, creating the urgency for a fundamentally new approach. Engineers can no longer rely on manual handoffs and isolated optimization steps when decisions made in one part of the flow immediately affect results somewhere else. What used to be a sequence of tasks is becoming a system-level coordination problem.

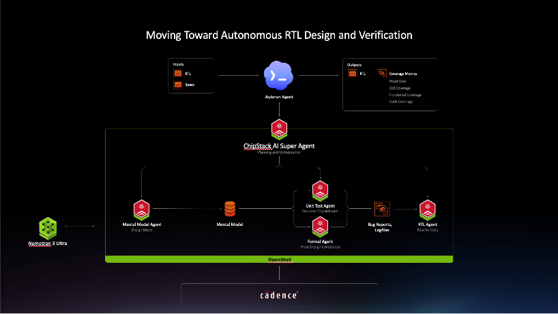

This is why agentic AI is becoming indispensable in semiconductor design. The industry is moving beyond AI as a narrow assistant and toward systems that can help reason across the workflow, automate more of the repetitive coordination work, and guide execution based on engineering intent. That shift is what makes the idea of the autonomous engineer so relevant now.

For semiconductor teams, the value is practical. AI can help accelerate exploration, reduce manual iterations, and improve how design decisions are coordinated across implementation, verification, analysis, and signoff. In other words, it helps teams keep pace with a level of complexity that is no longer manageable through manual effort alone.

AI-Driven Optimization Leveraging TSMC-Certified Flows

A key outcome of Cadence’s collaboration with TSMC is a broad set of TSMC-certified design flows spanning digital implementation, custom/analog design, multiphysics analysis, 3D-IC, and signoff. That certified infrastructure is the foundation. It provides customers with proven, signoff-ready flows designed to reduce iterations, improve correlation, and accelerate tapeout-quality results for advanced AI and HPC designs on TSMC technologies.

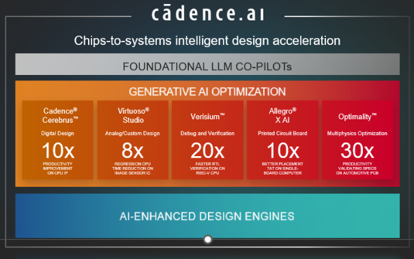

Cadence AI technologies build upon the foundation of those certified flows to improve optimization and designer productivity. They help engineers explore more design choices, converge faster on better trade-offs, and reduce the manual effort needed to move through implementation.

The digital implementation flow is a strong example of how this works in practice. Cadence has enhanced the Genus Synthesis Solution, Innovus Implementation System, and Cerebrus Intelligent Chip Explorer to support TSMC NanoFlex^TM Pro standard cell architecture. It enables designers to fine-tune speed and power efficiency during floorplan, placement, and optimization stages.

Cadence has also worked with TSMC on front-end placement and back-end routing rules that improve correlation between pre-route and post-route results, reducing the number of costly design iterations. Support for TSMC A16^TM with Super Power Rail (SPR) backside routing extends that advantage further, enabling denser and faster designs by routing power nets on the backside of the chip.

AI‑Enabled Design Migration to Advanced Nodes

One of the biggest advanced-node challenges is not just designing new silicon. It is migrating proven custom and analog designs to the next process generation without losing design intent, introducing unnecessary rework, or slowing down schedules.

In custom design, Cadence has embedded agentic AI in Virtuoso Studio flows while organizing circuit optimizers for TSMC process technologies. This includes enablement for TSMC N2 process to TSMC A14 Analog Design Migration Flow.

Together, these capabilities demonstrate the real value of AI in design today-- building upon the certified flows to deliver more predictable outcomes for engineering teams.

Conclusion: AI Is Becoming the Execution Layer for Advanced Silicon Design

Across this four-part series, one theme has become unmistakable: as AI silicon complexity rises, the competitive advantage is no longer just one differentiated technology. It is a multi-layered cake of innovation and collaboration. Its foundation layer is the process and packaging technology from a world-leading partner like TSMC, the middle layer is high-performance IP that’s silicon-proven in collaboration with the foundry partner, and the latest layer is defined by how effectively engineering teams can implement, optimize, verify, analyze, and sign off designs using AI technologies within a production-ready design environment.

Cadence is working with TSMC to deliver this multi-layered competitive advantage to mutual customers by combining TSMC’s advanced process and packaging technologies, certified and signoff-ready design flows, silicon-proven IP portfolio, and AI-driven optimization with emerging agentic automation that helps teams reduce iterations, improve productivity, and move toward tapeout with greater confidence.

Learn more about how we are transforming chip design with our strategic foundry partners. Read other blogs in the series
