A Defining Moment for the Semiconductor Industry

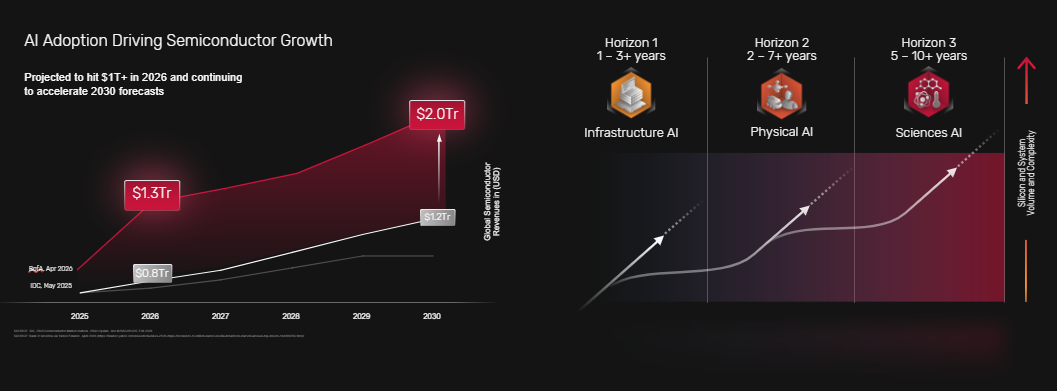

Paul’s agentic AI special address opened with a clear articulation of scale and urgency: the semiconductor industry is entering a structurally different phase of growth, driven primarily by AI infrastructure expansion. Demand for custom silicon has accelerated sharply, with market projections increasing by nearly half a trillion dollars within a year and trending toward a multi-trillion-dollar scale by the end of the decade.

This growth is anchored in data center AI infrastructure—described as massive “gigawatt-scale token factories”— but the speaker emphasizes that this is only the beginning. As AI expands into physical systems such as autonomous vehicles and humanoid robotics, current forecasts may ultimately prove conservative.

The Central Constraint: Engineering Throughput, Not Demand

Despite unprecedented opportunity, the keynote underscores a widening productivity gap across semiconductor design.

Key structural pressures include:

• Advanced process nodes moving into the 14- and 10-angstrom era, with extreme transistor density
• Chiplet-based and 3D heterogeneous packaging integrating dozens of dies per system
• Compressing development cycles that remain fundamentally misaligned with AI model iteration speeds

A critical mismatch is highlighted: while modern AI models evolve on 3–6 month cycles, silicon development often requires ~2 years from concept to production. This creates a persistent lag where deployed hardware risks being multiple generations behind contemporary workloads.

The limiting factor is no longer compute availability or funding—it is human iteration speed across increasingly complex design flows. Even aggressive scaling of engineering teams cannot linearly resolve this constraint.

Cadence Perspective: 40 Years of Abstraction and Reuse

The keynote frames Cadence’s position through two foundational principles that have historically driven EDA productivity:

Abstraction: Over decades, the industry has moved from transistor-level design to high-level hardware description languages such as SystemVerilog and VHDL. These abstractions enabled automatic synthesis into manufacturable implementations.

The next step is now emerging: specification-driven design, where agentic systems operate directly on architecture documents, block diagrams, and design intent—bridging the gap between human intent and RTL generation.

Reuse: Reuse has always been central to scalable design—across IP, verification assets, and hierarchical methodologies.

AI extends this principle into task-level reuse, where learned engineering patterns, optimizations, and verification strategies are captured and reapplied across projects. This effectively expands iteration capacity beyond human limits by transforming prior engineering effort into reusable intelligence.

Cadence AI Strategy: Three Layers of Transformation

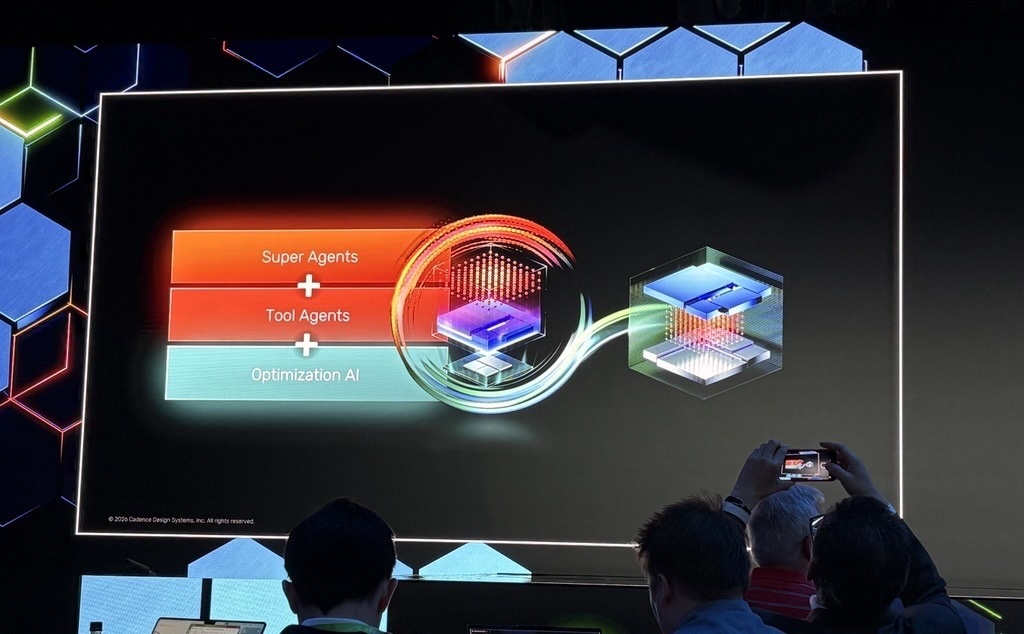

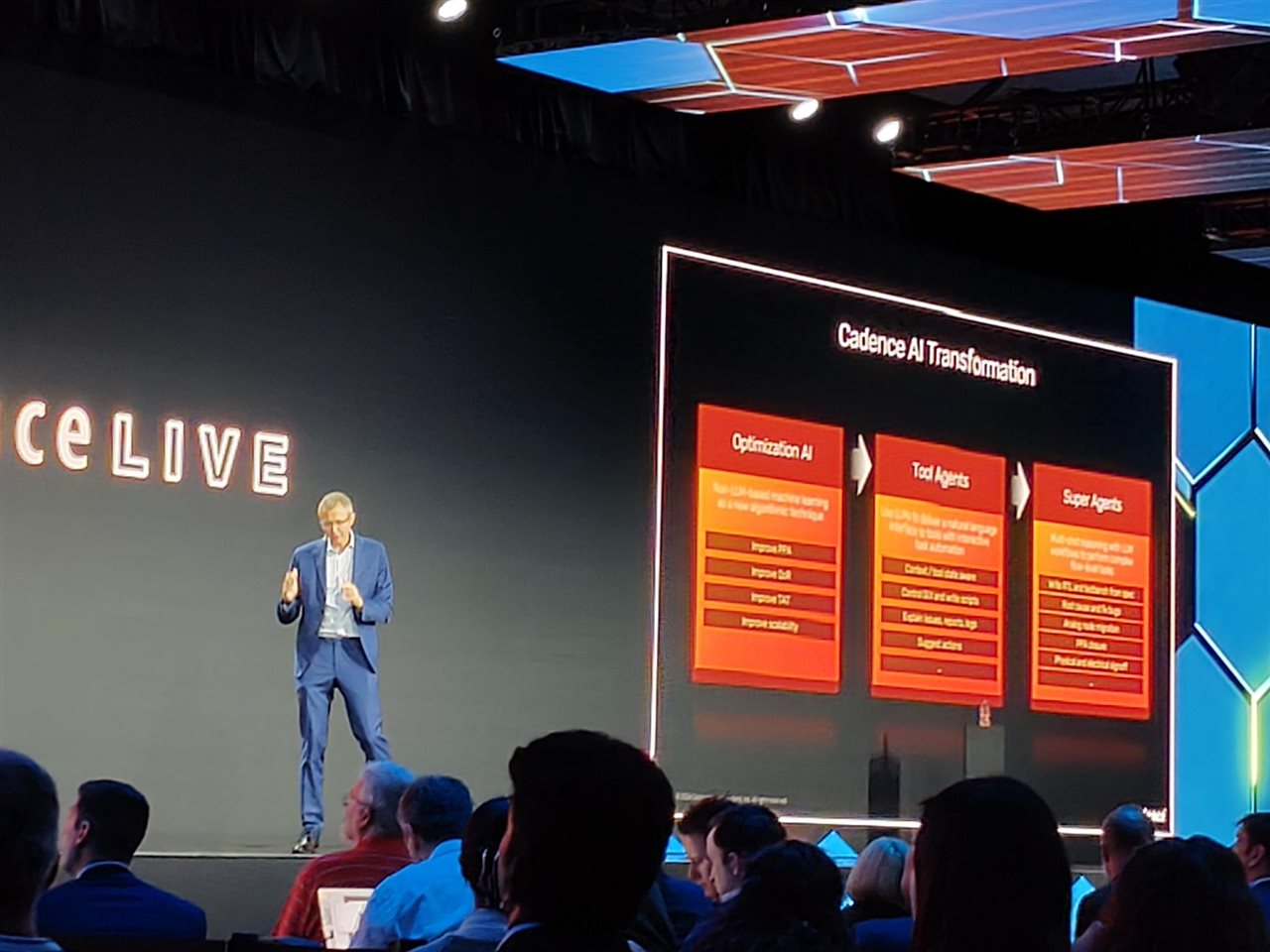

The keynote structures Cadence’s AI roadmap into three progressive layers, moving from optimization to full autonomy.

Optimization AI: Embedded Intelligence in Core Engines

Cadence’s optimization AI is built on purpose-specific neural networks, tightly integrated into EDA tools. These are lightweight, domain-trained models—not large language models—optimized for real-time reinforcement learning during active design execution.

Cadence Cerebrus: Reinforcement Learning for Physical Design

In digital implementation, Cadence Cerebrus applies reinforcement learning to explore backend design spaces autonomously.

Key capabilities include:

• Large-scale compute allocation across hundreds or thousands of CPUs for design exploration
• Expansion from block-level to full SoC-level optimization
• Cross-project learning, where prior design experiences improve future outcomes

This results in faster convergence toward optimal PPA (Power, Performance, Area) closure and significantly improved compute efficiency across design cycles.

Verisium: Reinforcement Learning for Verification

Verification remains one of the longest and most compute-intensive stages in the design flow. Traditional stimulus generation is largely random and inefficient.

Verisium introduces reinforcement learning that correlates stimulus behavior with design state coverage, enabling:

• Reduction of regression cycles from ~24 hours to 3–5 hours in representative cases
• Intelligent exploration of untested coverage regions through “hill climbing” strategies
• Faster and more deterministic convergence toward signoff-grade coverage

This transforms verification from brute-force exploration into guided, adaptive learning.

Tool Agents: Conversational Intelligence Inside EDA Flows

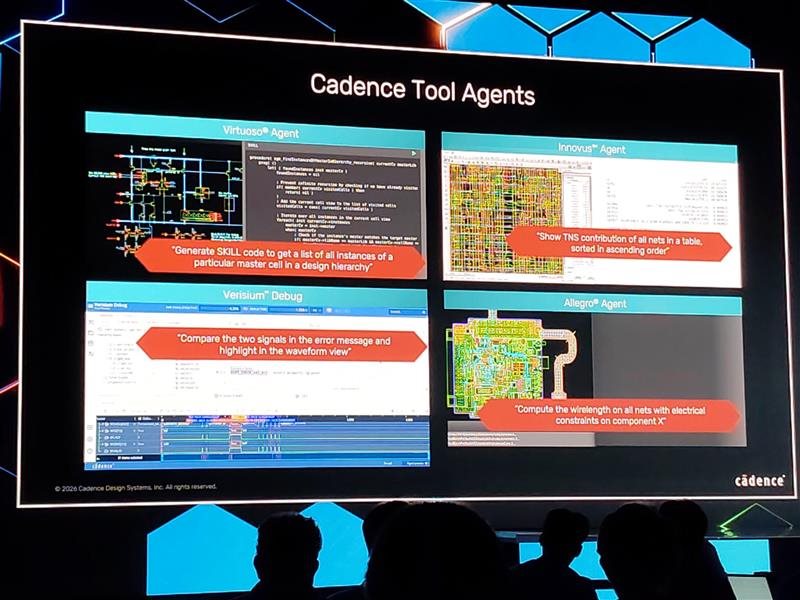

Before full autonomy, Cadence introduces tool-level agents that fundamentally change how engineers interact with EDA environments.

These agents:

• Translate complex command sequences into natural language interactions
• Maintain context awareness of design state, GUI focus, and tool history
• Reduce multi-step engineering tasks from minutes to seconds

Importantly, this layer does not replace engineering workflows—it compresses friction. Engineers retain control, while agents handle navigation, scripting, and repetitive analysis.

Over time, these agents begin to proactively suggest optimizations, debug paths, and design actions based on real-time context.

Super Agents: End-to-End Autonomous Design Systems

The keynote’s central theme is the emergence of super agents—autonomous computational systems capable of executing full design workflows.

These systems are positioned as equivalent in complexity to modern EDA tools themselves, but operate at a higher semantic level of abstraction.

Knowledge Graphs: Scaling Beyond LLM Context Limits

A fundamental challenge in semiconductor design is scale: design knowledge spans millions of tokens, far exceeding LLM context windows.

Cadence addresses this through structured knowledge graphs, which encode:

• Design hierarchy
• Semantic relationships
• Tool and flow dependencies

This allows agents to reason over large design spaces without relying on raw context windows alone.

Deterministic Control Over Probabilistic Models

To ensure reliability, Cadence wraps LLM-based reasoning in deterministic scaffolding:

• Stepwise task decomposition
• Guardrails and validation checkpoints
• Structured workflow orchestration

This hybrid model combines:

• LLM-driven reasoning (flexibility)
• Workflow determinism (predictability)
• Deep EDA tool integration (execution fidelity)

The result is a system that is both intelligent and production-safe.

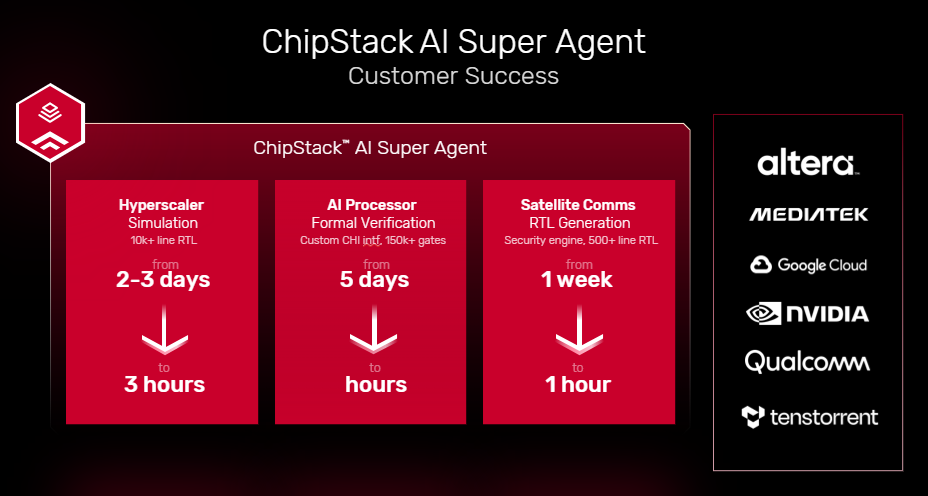

ChipStack AI Super Agent: First Production Super Agent

ChipStack AI Super Agent is introduced as the first realized super-agent, operating across RTL design and verification domains.

Internal Benchmark Example

• 12,500 lines of RTL
• 62-page specification
• 200+ LLM calls and ~10M tokens processed

ChipStack AI Super Agent autonomously:

• Builds a structured mental model of the design
• Generates verification strategies
• Produces and refines test scenarios to improve coverage

Compared to general-purpose coding assistants, the Super Agent demonstrates higher correctness and coverage due to:

• Cadence-native knowledge graphs
• Domain-specific EDA skills
• Deep toolchain integration

Cadence Designing with Cadence

Within Cadence’s silicon solutions organization, ChipStack Super Agent is already used in real IP development workflows.

A representative example:

• PCIe 7.0 controller design
• ~1 million lines of RTL
• ~6,000-page specification

ChipStack AI Super Agent actively contributes to both design and verification workflows, with internal estimates indicating:

• ~2× productivity improvement today
• Potential for up to 10× gains as systems mature

These figures are framed as engineering outcomes grounded in deployment experience.

Cadence JEDAI: Infrastructure for Secure Agent Scaling

Scaling agentic systems across enterprise environments introduces constraints around security, cost, and compliance.

Cadence JEDAI is introduced as the orchestration layer that enables controlled deployment of AI systems by:

• Supporting hybrid model usage (on-prem, open-source, and cloud frontier models)
• Enforcing data isolation for IP protection
• Providing telemetry, cost control, and observability

Technically, Cadence JEDAI operates with sub-20 millisecond overhead per LLM call, ensuring it does not become a bottleneck in agent execution pipelines.

Closing Perspective: A New Productivity Frontier

The keynote concludes by reinforcing a central tension: AI is simultaneously expanding opportunity and compressing engineering timelines. Semiconductor design must now evolve faster than both fabrication complexity and AI model iteration cycles.

Across optimization engines, conversational tool agents, and fully autonomous super agents, Cadence positions AI as the only viable path to bridging this gap.

The final message is explicit: this is not a gradual enhancement of existing tools, but a structural shift in how silicon is designed, verified, and delivered—moving from human-centered iteration to AI-augmented and increasingly AI-executed engineering systems.

The session closes with a clear invitation to engage with this transition as it unfolds across the CadenceLIVE ecosystem.

Stay Tuned for More LIVE Updates from CadenceLIVE Silicon Valley!
