What to Expect on Day 2 of CadenceLIVE Silicon Valley 2026

If you’re searching for where semiconductor design is headed next, day 2 of CadenceLIVE Silicon Valley 2026 offers definitive insights into the future of semiconductor design. Building on day 1's strategic momentum, it explores the technologies transforming how advanced systems are architected, verified, and delivered. Here’s what makes this day worth following.

Setting the Strategic Context for Physical AI

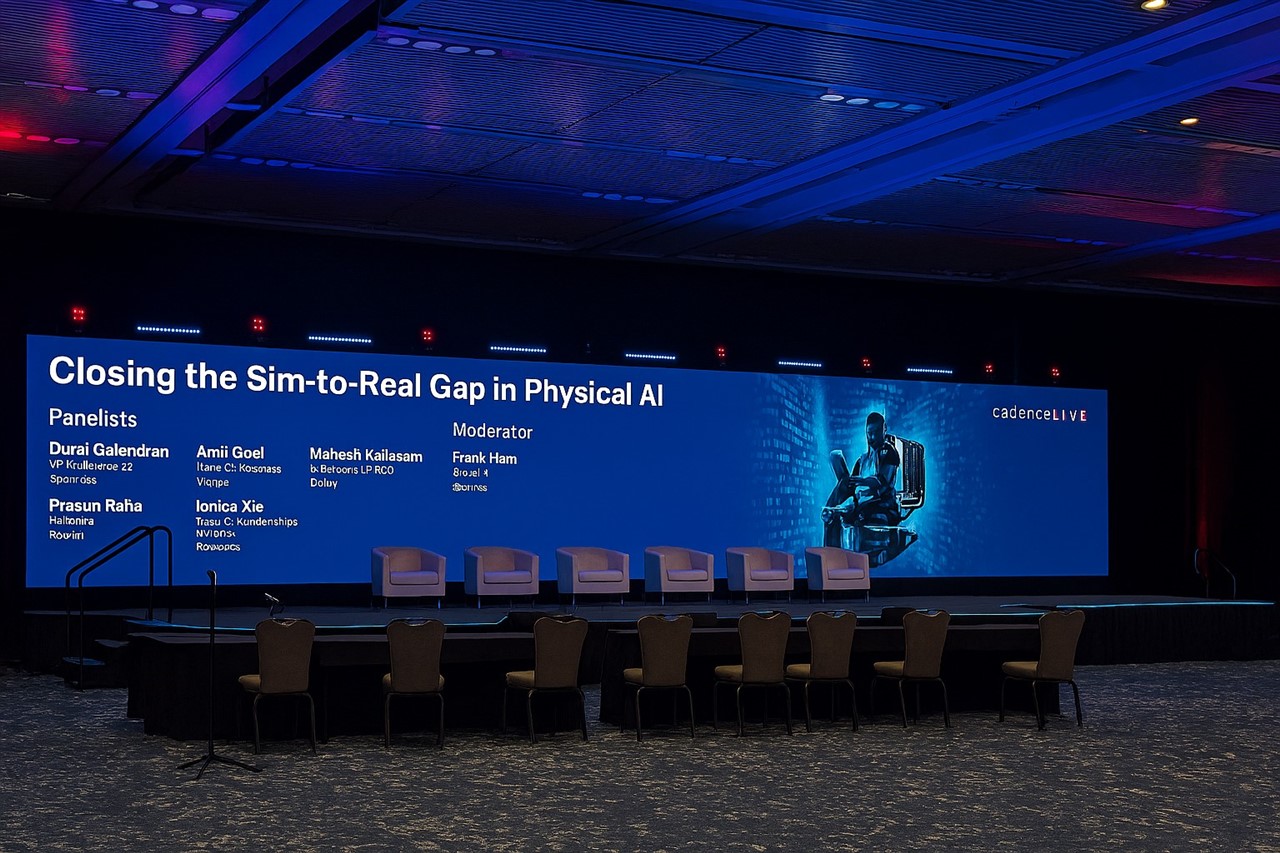

The day begins with a panel discussion on "Closing the Sim-to-Real Gap in Physical AI." This panel addresses the challenges of scaling and deploying physical AI systems, highlighting the pivotal role of data and simulation in training and provisioning.  It examines the gap between simulation and real-world performance in physical AI and discusses solutions to enable precise, synchronized actions and bridge the sim-to-real divide, enabling more and effective and scalable AI solutions.

Spotlight: 3D-IC/Chiplets

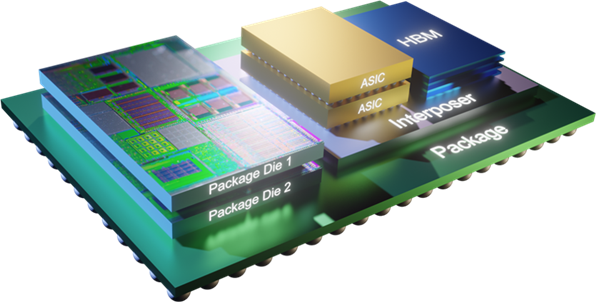

Topics such as security ownership, lifecycle management, runtime monitoring, and degradation detection reflect a shift from “Can we build it?” to “Can we trust and sustain it in production?” From security and chain of custody to physical verification with the Integrity 3D IC platform,  Pegasus, day 2 covers the full chiplet lifecycle—architecture, integration, verification, and in‑field operation.

AI-Driven Design and Verification

AI appears across day 2 not as a buzzword, but as an embedded capability delivering measurable results.

The sessions demonstrate how agentic and data-driven approaches are reshaping implementation and verification workflows.

These are practical discussions, based on real production environments, with deep dives into:

• AI-enabled PPA and yield optimization
• AI/ML‑powered diagnostics and signoff confidence

These sessions show how AI delivers measurable productivity gains across the flow.

Cloud‑Native EDA in Production

Cloud focuses on expanding operational scale and enhancing productivity. Day 2 features a strong lineup of sessions that demonstrate how teams are deploying EDA workloads in cloud environments with confidence, compressing design cycles for AI-driven silicon development.

Learn how teams are running large‑scale EDA workloads using renowned cloud platforms with a focus on scalability, efficiency, and reproducibility.

Verification at AI Scale

Verification continues to be one of the most resource‑intensive aspects of modern chip development, and day 2 addresses it head‑on. Sessions span hardware‑assisted verification, emulation accessibility, mission‑critical IP validation, and automotive digital twins, reflecting how verification strategies must adapt across markets. Major takeaways are:

• Hardware-based verification delivers orders-of-magnitude speedups over simulation, enabling exhaustive testing and higher system quality.
• Mission‑critical and safety‑sensitive systems demand this level of verification rigor due to the severe consequences of failure.
• Long-running, software-driven workloads and complex I/O interactions have outgrown the practical limits of traditional simulation.
• AI and ML scaling pressures—driven by large models, memory intensity, and energy constraints—necessitate multi‑die systems with tightly integrated compute and memory.
• Emulation enables accurate validation of complex designs under realistic power and thermal conditions, while supporting earlier HW/SW integration and reduced verification timelines.

From hardware emulation to mission‑critical IP validation, the day highlights how verification teams are keeping pace with AI‑class designs.

Custom, Analog, and Mixed‑Signal Innovation

While digital scale and AI acceleration dominate headlines, day 2 reinforces that precision design remains foundational. Sessions on Spectre X acceleration, Virtuoso‑based optimization flows, mixed‑signal IP reuse, and photonic layout extraction show how custom and analog teams are modernizing without compromising accuracy. The takeaways are as follows:

• Custom, analog, and mixed-signal innovation is increasingly driven by the need to handle growing complexity faster, without compromising accuracy or signoff confidence.
• Automation and data-centric optimization are replacing manual, time-intensive workflows, significantly accelerating design cycles and reducing reliance on deep specialist expertise.
• Intelligent circuit structure recognition and direct integration of post-layout parasitics into optimization loops enable faster and more reliable design closure.
• High-performance simulation strategies make full RC extraction, extensive corner analysis, and robust Monte Carlo verification practical even within tight compute and schedule limits.
• The tight integration of automation, accurate modeling, and scalable compute is unlocking faster, more resilient, and repeatable innovation across custom, analog, and mixed-signal design.

Advanced nodes, RF, photonics, and memory IP all get serious attention—proving that innovation isn’t limited to digital alone.

In short: Day 2 of CadenceLIVE Silicon Valley 2026 captures how modern systems are being built—across tools, teams, and ecosystems.

Stay Tuned for More LIVE Updates from CadenceLIVE Silicon Valley!
