Data Center Design and Planning

Data centers form the backbone of everything from EDA workloads to innovation and AI developments. Designing them correctly to achieve near-zero downtime requires carefully navigating data center architecture choices and assessing tier III and tier IV standards in the context of specific redundancy models. Success in operations also relies on thorough white space planning and an optimized rack layout that uses containment to control heat.

Silicon-aware data center design is another critical aspect of efficient data center design. As process nodes shrink and packaging techniques concentrate heat, the power density and thermal flux increase, creating new challenges for electrical distribution, cooling, and layout.

Data Center Design Principles

Efficient data center design is built on a foundation of core principles that guide every decision, from the physical location to the choice of equipment.

• Reliability and redundancy: Reliability is the foundation of data center operations. However, availability goals should guide redundancy at different levels, such as facility design, electrical pathways, and IT/software resilience, rather than depending on a single metric (N vs N+1 vs 2N).
• Modularity: Modular design enables these systems to be built from smaller, manageable components, providing flexible levels of detail to help with the design process.
• Scalability and flexibility: A data center must be able to grow with business demands. This forward-thinking approach prevents costly overhauls.
• Efficiency: An efficient design minimizes energy consumption by optimizing airflow using modern cooling techniques and employing power-efficient hardware.
• Security: Protecting the physical and digital assets within the data center is paramount. This includes multi-layered physical security (fences, biometrics, surveillance) and robust cybersecurity measures to guard against breaches.

Data Center Architecture Design

Data center architecture defines the logical and physical structure of IT resources. Classic three-layer architectures (access, aggregation, and core layers) were designed for North-South traffic (client-to-server). However, AI clusters are often network-bound rather than compute-bound.

• Spine-leaf topology: This topology ensures all servers are equally distant, ensuring consistent latency and bandwidth, which is vital for parallel tasks.
• Low-latency fabrics: To support high data throughput in GPU clusters, designs favor low-latency fabrics like InfiniBand or RDMA over Converged Ethernet (RoCE), which enable direct memory access between compute nodes and reduce latency.
• Co-design of network and power: Network topology now affects physical layout because high-speed copper cables (such as 800G or 1.6T) have limited reach, requiring switches to be closer to compute nodes.

Understanding Tier Standards

When planning a facility, it's essential to understand the tier certification as defined by the Uptime Institute, which verifies infrastructure topology but does not guarantee performance. Engineers should see tier standards as a baseline for infrastructure, not a substitute for operational excellence.

• Tier I offers basic capacity without redundancy, while tier II adds partial backups for key components (cooling, power). Both require shutdowns for maintenance and carry higher risks of unplanned outages.
• Tier III (Concurrent Maintainability) has multiple independent power and cooling paths, but only one is active at any given time. With N+1 redundancy, maintenance can be performed without downtime, reaching about 99.982% availability (roughly 1.6 hours of annual downtime).
• Tier IV (Fault Tolerance) is for mission-critical operations, with fully redundant systems and compartmentalized setups to handle failures. It achieves 99.995% uptime, suitable for sensitive data environments such as finance and healthcare.

Redundancy Models

Engineers must understand "N+1 vs. 2N" comparisons to understand appropriate redundancy for specific workloads:

• N+1: Often sufficient for general enterprise workloads where minor risks during maintenance windows are acceptable.
• 2N: This is often the standard for critical AI training clusters where interrupting a training run could cost millions.

Thermal Management: Rack Layout, Air Cooling, and Containment

Semiconductor thermal limits define performance thresholds, making cooling the primary challenge in data centers. Higher thermal design power (TDP) levels demand prioritized cooling strategies. Proper server rack arrangement is crucial for efficiency at densities of 15–20kW, where effective air cooling depends on strict airflow management, such as the standard hot-aisle/cold-aisle setup. This configuration, with racks facing front-to-front (cold) and back-to-back (hot), helps prevent exhaust air recirculation.

 Many data centers improve this with containment methods. Cold aisle containment (CAC) encloses the cold aisle to pool supply air. At the same time, hot aisle containment (HAC) captures exhaust air and returns it to the cooling units, reducing energy costs. However, for AI and high-performance computing (HPC) workloads exceeding 20kW, often over 100kW, air cooling cannot efficiently remove the heat.

• Hybrid cooling (rear-door heat exchangers): Liquid-cooled doors on rack backs absorb heat from air-cooled servers before it enters the room.
• Direct-to-chip liquid cooling: Cold plates on CPUs/GPUs circulate dielectric fluid or water to remove heat directly at the source, linking design to thermal needs.
• Immersion cooling: For extreme densities, servers are fully submerged in non-conductive fluid for maximum cooling, requiring significant facility and hardware changes.

Strategic Planning: Brownfield vs. Greenfield

Organizations often face a fundamental choice: upgrading an existing facility or building a new one.

Brownfield projects: Brownfield projects involve retrofitting existing data centers, which can be quicker and cheaper initially but face significant constraints. Structural columns may hinder optimal rack placement, and floor loading limits might not support heavy liquid-cooled AI racks. Additionally, upgrading power capacity is often restricted by the local utility.

Greenfield projects: Greenfield projects involve designing and constructing a new data center from the ground up. While requiring larger upfront investment and longer timelines, this offers complete freedom. Engineers can optimize the facility to meet modern requirements, such as reinforced slab floors for heavy equipment, high ceilings for heat stratification, and purpose-built infrastructure for liquid-cooling loops.

White Space Planning

"White space" refers to the usable floor area dedicated to IT equipment. Effective planning prevents stranded capacity. High-density rack planning addresses this by modeling the multivariable relationships among floor weight, power draw, and cooling distribution to ensure all resources are continuously utilized.

High-Density Rack Planning

The rapid adoption of AI and HPC is increasing data center density, causing logistical issues as more compute is squeezed into smaller spaces. This often leads to wasted capacity when resources like power, space, or cooling are exhausted early. Manual planning can't handle this level of complexity, leading to inefficient buffers. To address this, organizations are moving to high-density rack planning, which requires new approaches to floor loading and cooling.

AI-Ready Data Center Design

AI-ready design necessitates a shift from general-purpose infrastructure to specialized HPC environments. These facilities must support the massive parallel processing capabilities required for training. Key requirements include:

• Liquid cooling integration: Air cooling is physically limited in its ability to remove heat from next-generation AI silicon. Facility designs must include manifolds and piping to support liquid-cooling loops.

• Enhanced power density: AI racks can draw upwards of 100kW. The electrical infrastructure must be robust enough to deliver this power safely and efficiently.
• Structural reinforcement: The density of AI hardware results in significantly higher floor loading, requiring reinforced slab or raised floor structures.

Designing for AI requires a forward-looking approach that anticipates thermal and power densities far exceeding historical norms.

GPU-Based Data Centers Design

GPU data center design presents unique challenges, such as power transients and structural reinforcement, as compared to standard CPU-based compute. Designing for GPU clusters requires power distribution systems capable of handling rapid load steps (transients) without tripping breakers. The power distribution units (PDUs) and branch circuits must be sized for the maximum potential draw of the accelerators, not just the average load. Furthermore, the physical dimensions of GPU chassis often differ from standard servers, requiring deeper racks and reinforced mounting rails to support the additional weight.

Limitations of Traditional Methods

Modern data centers are too complex to be planned with simple blueprints or spreadsheets. The interaction between airflow, thermodynamics, electrical distribution, and network cabling requires sophisticated modeling. Manual, analog methods fail to capture the physics of high-density environments. They cannot predict how a failure in one cooling unit will affect the temperature of a specific server rack across the room, nor can they accurately model the complex airflow patterns in a facility with mixed air and liquid cooling.

Data Center Design Software

To address these challenges, engineers are turning to advanced data center design software. Cadence offers solutions that enable engineers to address planning needs comprehensively through physics-based Computational Fluid Dynamics (CFD) simulation. The Cadence Reality Digital Twin Platform enables the creation of precise digital twin models of the data center. It encompasses external modeling, flow networks, power, and data networks, creating a unified solution for efficient design.

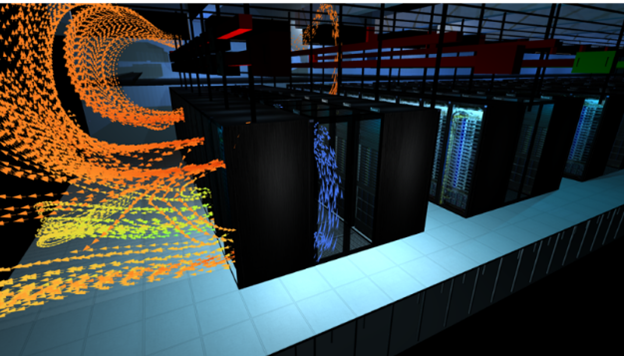

Cadence Reality Digital Twin Platform generates detailed 3D models to simulate airflow and temperature distributions. By running "what-if" scenarios, engineers can identify potential hot spots and improve cooling efficiency before a single server is installed. This predictive capability allows for the optimization of containment strategies and verification that the cooling design can handle the thermal output of high-density AI silicon.

See How Your Data Center Will Perform Before You Build or Modify It

Planning a new data center or scaling an existing facility for white space planning, higher rack densities, liquid cooling, or changing workloads? Connect with Cadence for a data center planning or assessment. Our collaborative approach helps you visualize airflow patterns, uncover thermal risk zones, assess cooling effectiveness, and understand capacity constraints—so you can make confident, data-driven decisions earlier in the design process.

Discover Cadence data center solutions:

• Cadence Reality Digital Twin Platform to simulate and optimize data center behavior across both design and operational phases.
• Cadence Celsius Studio to analyze and manage thermal performance from the rack level up to the full facility.
