Beyond Moore's Law: Advances in Modern Semiconductor Design

31 Jul 2026 • 6 minute read

The Shifting Landscape

For decades, Moore's Law delivered a simple promise: more transistors, more performance, and lower cost. Today, that equation is changing. As transistor scaling approaches physical and economic limits, innovation is shifting beyond the transistor itself—into advanced packaging, heterogeneous integration, chiplets, memory architectures, and system-level optimization.

This blog explores the major shifts shaping this transformation—from transistor architecture evolution and manufacturing complexity to chiplet-based design, UCIe standardization, and high-bandwidth memory.

Moore's Law and Its Limits

The Original Promise

Gordon Moore's 1965 observation originally described a doubling roughly every year; he later revised it in 1975 to roughly every two years. This exponential trajectory held remarkably true for decades:

  • Intel 4004 (1971): 2,300 transistors
  • Pentium (1993): 3.1 million transistors
  • Apple M1 Ultra: 114 billion transistors
  • NVIDIA Hopper: 80+ billion transistors

The Slowdown Factors

However, pure transistor scaling is no longer the whole story. Several forces are slowing traditional Moore's Law:

  • Physics limits: short-channel effects, leakage, and quantum-mechanical effects become more severe at advanced nodes.
  • Lithography complexity: increasing EUV process complexity and cost at advanced nodes
  • Economic pressure: leading-edge design and productization costs can reach extremely high levels, with advanced-node programs potentially exceeding $1B overall.
  • Power density: Dennard scaling ended circa 2006.

As a result, traditional scaling is no longer sufficient on its own.

Inverse Moore's Law and Yield Economics

Even as transistor scaling slows, the cost of delivering useful computing capability at the system level often continues to decline through architectural innovation, software optimization, and economies of scale, where the cost of delivering a given amount of functionality tends to fall over time. For example, systems that once cost millions are now consumer-grade products.

But at advanced nodes, yield economics become a major constraint:

  • Larger dies will have more defects leading to lower yield
  • Advanced nodes (3nm and below) result in exponentially higher cost per die.

This creates a critical challenge: Building larger monolithic chips is becoming economically unsustainable. This pressure drives the industry toward alternative design approaches.

Transistor Architecture Evolution

Planar MOSFET: Dominant through roughly the 28nm era

The workhorse of early semiconductor scaling. The gate sits on top of a flat channel, controlling current flow from above only. Simple and cost-effective at larger nodes, but as dimensions shrank below 28 nm, the gate lost adequate control over the channel, leading to unacceptable leakage currents.

FinFET: Mainstream at advanced nodes through the 2010s and into the 2020s

Intel introduced FinFETs at 22nm. The channel rises as a vertical "fin" with the gate wrapping around three sides, dramatically improving electrostatic control. This enabled scaling down to 5 nm with manageable leakage and better performance-per-watt. Fin height variability and patterning at tighter pitches are its key manufacturing challenges.

GAAFET: Emerging in leading-edge production and expected to expand further

Gate-All-Around FETs (nanosheets/nanowires) represent the frontier. The gate completely surrounds the channel, providing the strongest electrostatic control and the sharpest ON/OFF switching. Manufacturing requires selective layer deposition, channel release etching, and precise nanosheet thickness control—significantly more complex than FinFET fabrication.

These innovations extend Moore's Law, but at the cost of massive manufacturing complexity.

Manufacturing: FEOL, MOL, BEOL

Modern chip fabrication is divided into three precisely orchestrated stages, each building on the previous one.

The Fabless Revolution and Rising Design Costs

The semiconductor industry has undergone a fundamental structural transformation. As manufacturing complexity increases, so does cost. Where companies once designed and manufactured their own chips (IDM model), the prohibitive cost of modern fabs—often exceeding $10-20 billion has left only a small number of companies capable of operating leading-edge manufacturing facilities.

Today, leading-edge logic manufacturing is concentrated among Intel, TSMC, and Samsung.

This has fundamentally reshaped the industry.

Most other major semiconductor companies—Qualcomm, Broadcom, NVIDIA, and AMD—have transitioned to a fabless model, focusing on design while outsourcing manufacturing.

Meanwhile, IC design costs have skyrocketed. A typical chip costs $10-100M to design; a state-of-the-art microprocessor can exceed $1B. Verification can account for a significant majority of development effort in advanced SoC programs. Product revenues must be roughly 10X development costs to justify investment, creating intense pressure on first-time-right silicon.

These economic pressures demand new design methodologies.

Chiplets and Heterogeneous Integration

Instead of building a single 800 mm² die that may suffer from poor yield, manufacturers can construct a system from multiple smaller chiplets with higher individual yield and lower overall cost.

To address yield and cost challenges, the industry is moving toward building systems from multiple cooperating dies or chiplet-based architectures instead of one monolithic chip.

Chiplets 2.5D vs 3D Integration

Smaller functional dies that together form a complete system. Each chiplet implements a specific function—compute (CPU/GPU/AI), memory, IO/SerDes, or accelerators.

Key advantages:

  • Higher individual yield per die
  • Reuse across product lines
  • Mix-and-match process nodes (3nm + 7nm + 28nm)
  • Only known-good dies assembled

2.5D: Side-by-side dies on an interposer with fine-pitch routing. Better heat spreading, predictable power delivery. Ideal for logic + HBM configurations.



3D: Vertical die stacking connected via Through-Silicon Vias (TSVs) or hybrid bonding. Extremely high bandwidth and density, but poses thermal challenges as upper dies trap heat. Maximum density for memory stacks.

Chiplets mark a shift toward system-level design instead of single-chip scaling.

UCIe: The Universal Die-to-Die Standard

As chiplet adoption grows, a new challenge emerges: How do chiplets from different vendors communicate? Without standardization, proprietary interfaces limit ecosystem growth.

UCIe has the potential to do for chiplets what PCI Express did for expansion cards -create an open ecosystem where components from different vendors can interoperate through a common interface.

Universal Chiplet Interconnect Express (UCIe) is the industry's answer—an open standard that defines high-bandwidth, low-latency, power-efficient die-to-die communication inside a single package.

Interoperability Reuse and Scale Performance Simplified EDA
Build systems from a multi-vendor chiplet ecosystem Faster time-to-market, lower design risk High-performance multi-die systems at package scale Standardized signoff for die-to-die interfaces

UCIe transforms chiplets into a true modular ecosystem.

These system-level innovations introduce new verification, implementation, and signoff challenges. Engineers must now validate multi-die connectivity, advanced package interactions, thermal behavior, power integrity, and chiplet interoperability. As a result, EDA flows are expanding beyond traditional SoC implementation into system-level design and analysis.

High Bandwidth Memory: The AI Workhorse

Many AI and HPC workloads are fundamentally memory-bandwidth limited, rather than purely compute-limited.

In modern AI accelerators, compute resources often sit idle while waiting for data. HBM addresses this bottleneck by dramatically increasing memory bandwidth, allowing GPUs and AI processors to remain fully utilized.

How HBM solves this:

  • Multiple DRAM dies stacked vertically
  • Through-silicon vias (TSVs) for vertical connections
  • Silicon interposer for dense die-to-processor wiring
  • Short, fast data paths to the GPU/AI accelerator

HBM provides:

  • High bandwidth and energy-efficient data movement
  • Latency benefits depend on system architecture and access pattern

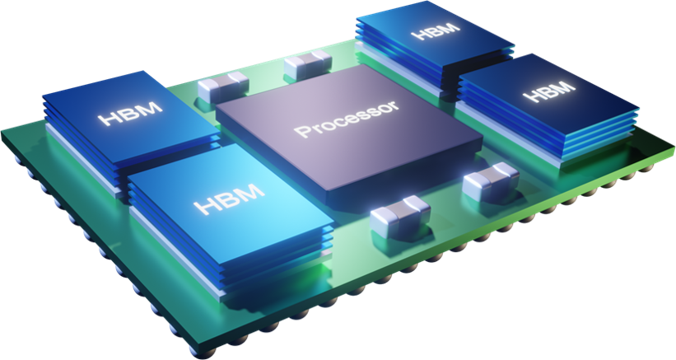

HBM in modern systems:

  • Requires advanced 2.5D/3D packaging
  • Tightly coupling memory with GPUs/AI accelerators within a single package
  • Short data paths for faster access

The Road Ahead

The future of semiconductor innovation will not be defined by transistor scaling alone. Success increasingly depends on how effectively designers integrate advanced process technologies, packaging, memory, interconnects, and software into complete systems.

Moore's Law was never just about shrinking transistors—it was about continuous progress in performance, cost, and capability.

That progress continues, but through a different paradigm:

  • GAAFETs pushing transistor scaling further
  • Chiplets overcoming yield and cost barriers
  • UCIe enabling ecosystem-level integration
  • HBM delivering the bandwidth that AI demands

In the Beyond-Moore era, the package is becoming the new system, and system-level optimization is becoming the new scaling strategy.

To learn more about advanced semiconductor topics, enroll in our Semiconductor 101 v3.0 training and earn a Cadence Digital Badge.
