Power Grid Verification Flow: A Methodology for High-Coverage Signoff

As semiconductor designs continue to scale in complexity, ensuring robust power integrity becomes one of the most important challenges in design signoff. Power grid weaknesses can appear as IR drop violations, excessive supply noise, timing degradation, or silicon correlation gaps late in the design cycle.

This blog presents a structured power grid verification flow methodology that helps detect weaknesses early, improves analysis coverage, and reduces root-cause debug effort by moving from structural input checks through static simulation and advanced dynamic analysis.

The overall objective of this methodology is to increase verification coverage stage by stage while identifying design weaknesses as early as possible in the SoC development cycle.

Why a Structured Verification Flow Matters

Power integrity verification is not just a simulation, there are many challenges, such as:

• Structural problems such as missing vias, shorts, and unconnected wires must be found before simulation.
• Weak PDN hook-up and high-resistance paths must be identified early to avoid misleading downstream debug.
• Static simulation provides broad average-current coverage but does not capture all transient effects.
• Dynamic simulation adds package, board, die, switching, and timing-dependent behavior.

It must address design completeness, PDN connectivity quality, average current delivery, peak current demand, package impact, decaps, simultaneous switching, and activity-driven dynamic noise.

Power Grid Verification Flow

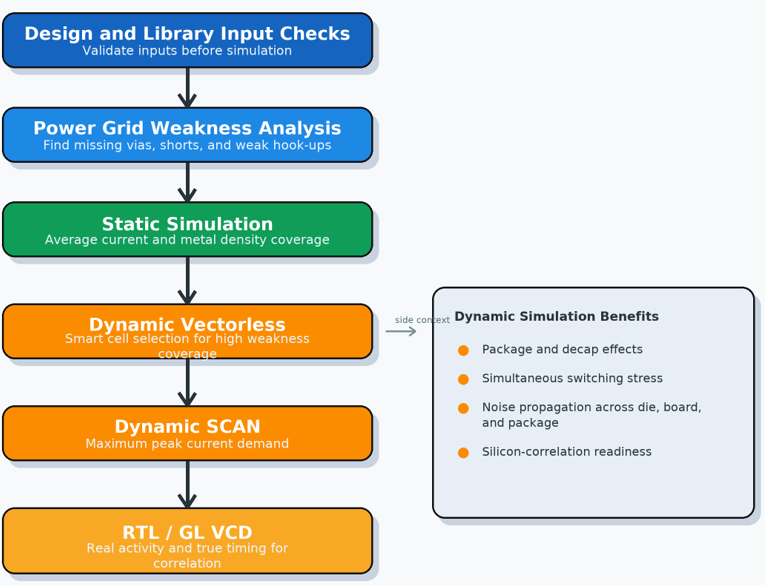

The power grid verification flow uses a progressive coverage model, where each stage builds confidence and provides a stronger foundation for the next analysis step.

Design and Libraries Input Checks

The first stage validates that all design and library inputs are available and correctly loaded. This step avoids non-relevant simulation results caused by missing or incomplete input data.

• Detect missing vias
• Detect design shorts
• Detect unconnected devices and wires
• Validate library completeness and simulation setup requirements

Power Grid Weakness Analysis

After design data is available, the methodology evaluates the quality of the power delivery network. LVS may confirm electrical connectivity, but power integrity verification must also evaluate the quality and resistance of the connection.

• Check PDN hook-up quality for each instance
• Report high-resistance paths
• Identify local regions with reduced noise immunity or increased IR drop risk

Static Simulation

Static simulation is the recommended first electrical simulation stage. It validates average current delivery and provides broad coverage for steady-state grid behavior.

• Verify that power grid metal density can supply average current demand
• Check that PAD/BUMP resources match maximum current requirements
• Validate power-gate capacity when power gates exist in the design

Extending Coverage with Dynamic Analysis : Dynamic analysis captures effects that static simulation cannot fully model: package inductance impact, planned and parasitic decap behavior, simultaneous switching activity, and noise injected through die, board, and package interactions.

Dynamic Vectorless Simulation

Dynamic vectorless simulation provides high coverage without requiring user-provided vectors. Smart cell selection is used to create high-stress switching scenarios that expose weak points in the power grid.

Dynamic SCAN Simulation

The SCAN simulation evaluates a high-peak-demand current scenario. Flip-flops switch under scan operation, creating a strong stress condition for the PDN.

Dynamic RTL VCD Simulation

Dynamic RTL VCD Simulation improves the activity and power estimation of a specific test vector that runs on silicon.

Dynamic Gate-Level VCD with True Timing

Gate-level VCD with true timing provides accurate switching time information and is the strongest candidate for silicon correlation when combined with accurate current modeling and package effects.

Shift Left: Early PDN Prototyping

Early PDN prototyping, combined with RTL-based power estimation, helps prevent large design changes late in the schedule. This approach enables design teams to validate power grid direction before backend implementation is fully mature. Key takeaways of the methodology are

• The use of structural checks before simulation avoids debugging invalid results.
• Evaluating PDN hook-up quality, not only electrical connectivity.
• Use static simulation for broad average-current validation.
• Use dynamic simulation to capture peak current, package, decap, and switching effects.
• Use gate-level true-timing VCD for accurate activity timing and silicon-correlation readiness.

Final Thoughts

A high-coverage power grid verification flow should not rely on one analysis mode. By progressing through input checks, weakness analysis, static simulation, and dynamic scenarios, design teams can find problems earlier, improve signoff confidence, and reduce time spent on root cause analysis.

Ready to transform your power integrity expertise? Download the Cadence Voltus Training Kit from the Cadence ASK portal and explore how the latest release can help accelerate your next design signoff journey.

For more information, visit the Cadence ASK portal or contact the support team for guidance on using the Voltus Training Kit.

Written by Ronen Stilkol, Senior AE Architect, Cadence
