AMBA CXS Interleaving: Shared Transport for Multi-Protocol, Multi-Node Systems

Modern SoCs bring together CPUs, GPUs, AI accelerators, coherent memory devices, PCIe controllers, and chiplet interfaces, all generating packet traffic with different latency, ordering, and delivery requirements. When these flows converge on a shared transport, a basic first-in, first-out packet path can create avoidable blocking and leave expensive link bandwidth underused.

AMBA CXS addresses this challenge with a credited, packetized streaming interface optimized for wide datapaths. Along with packing multiple packets into a flit, CXS can distinguish independent streams and define where traffic from another stream may be inserted. Earlier CXS revisions enabled protocol-aware sharing through CXSPRCLTYPE and controlled insertion through CXSLAST. Issue D extends stream identity with CXSSRCID and CXSTGTID, allowing the same link concepts to scale into multi-node networks.

The architectural value is straightforward: independent traffic can share a high-bandwidth link while preserving the ordering and contiguity guarantees required by each stream. Verification is more complex because the design must identify stream boundaries, preserve in-stream order, prevent illegal insertion, maintain protocol and node identity across flits, and honor credit and continuous-delivery constraints under stress.

Overview of CXS Interleaving

Consider a shared link carrying a long packet sequence while a short, latency-sensitive packet from another independent stream is ready. If the second stream must wait for the first sequence to drain, the system experiences head-of-line blocking. The effect becomes more visible as packet sizes vary, traffic sources multiply, and endpoints operate at different service rates.

Interleaving allows upstream arbitration to select traffic from another stream at a legal insertion point. This can improve responsiveness and keep the link active without violating the ordering of the original stream. CXS, therefore, does not treat interleaving as arbitrary flit switching. It identifies the stream and constrains insertion using protocol type, source ID, target ID, CXSLAST, and the CXSCONTINUOUSDATA property.

Why CXS Needs Stream-Aware Interleaving

Unrestricted switching can violate packet continuity or ordering, while overly conservative arbitration can preserve correctness but unnecessarily reduce link efficiency. CXS resolves this tension by distinguishing independent traffic streams and identifying the boundaries at which another stream can be inserted safely. The result is controlled sharing: the link can carry independent flows without losing the context needed for packet reconstruction, ordering, route attribution, or continuous delivery.

CXS Interleaving Protocol Architecture

Protocol-Aware Stream Identification with CXSPRCLTYPE

CXS issue B added support for multiple protocol streams. When CXS_PROTOCOL_TYPE is True, the optional 3-bit CXSPRCLTYPE signal identifies the protocol type carried by a valid flit. The specification defines encodings for protocol type 0 and protocol type 1; other values are reserved.

• A packet spanning multiple flits must use the same protocol type on every flit.
• If one flit contains multiple packets, all packets in that flit must have the same protocol type.
• When CXSCONTINUOUSDATA is false, flits with different protocol types can be interleaved on any cycle.
• When CXSCONTINUOUSDATA is true, the protocol type can change only after CXSLAST is asserted.

These rules allow a receiver to route, decode, or account for traffic without parsing protocol-specific packet contents simply to determine the protocol stream. They also provide a directly observable basis for checking that a multi-flit packet never changes protocol identity during delivery.

Legal Insertion Boundaries with CXSLAST

CXSLAST is an optional flit-level indication that flits from another source or stream can be inserted after the current cycle. It is best understood as an insertion-permission boundary, not simply an end-of-packet indication, because CXS can require multiple complete packets to remain contiguous as a group.

CXSLAST must be de-asserted when the following packet must remain after the current packet, or when a packet has started but has not ended in the current flit. When CXSLAST is low, the receiver expects additional traffic for the protected sequence ,and another source must not be inserted. When the signal is not implemented, it is generally assumed asserted, except while a packet is incomplete in the current flit.

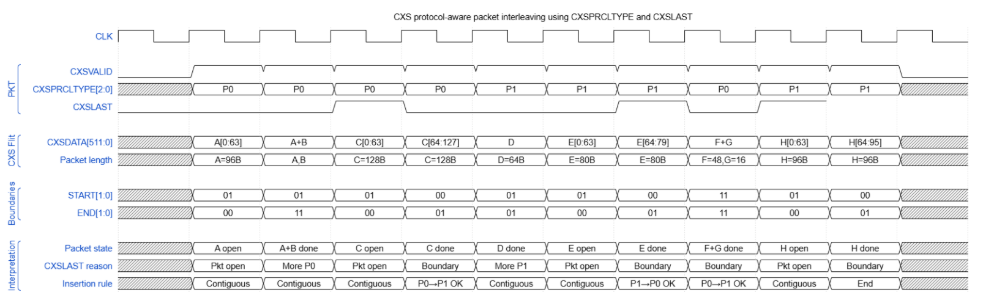

The waveform illustrates how protocol streams share the CXS link while CXSLAST marks where a stream transition is permitted. A transition must not interrupt an incomplete packet or a packet group that is required to remain contiguous.

Continuous Delivery with CXSCONTINUOUSDATA

With continuous delivery disabled, a design can switch among streams more freely while still preserving packet continuation and same-stream ordering. With continuous delivery enabled, a stream change must wait until CXSLAST is asserted. The transmitter must also avoid starting a packet unless the complete packet can be delivered in consecutive cycles while credits are available.

Multi-Node Stream Identity in CXS Issue D

Protocol type can distinguish different protocols, but it cannot distinguish two nodes carrying the same protocol. CXS issue D therefore adds optional source and target identifiers for multi-node networks. CXSSRCID identifies the node from which a flit originated, while CXSTGTID identifies the destination node. Each identifier can be configured from 0 to 8 bits, and both are valid when CXSVALID is asserted.

CXS stream identity = {CXSPRCLTYPE, CXSSRCID, CXSTGTID}

Flits from the same stream must remain in order. Flits from different streams can be inserted, subject to CXSCONTINUOUSDATA and CXSLAST. Because source and target identifiers apply to every packet in a flit, one flit cannot mix packets belonging to different source-target routes. This richer identity allows a shared transport to distinguish flows without dedicating a separate link to every node pair.

Key Protocol Features

• Protocol-aware identification through CXSPRCLTYPE
• Multi-node source and destination identification through CXSSRCID and CXSTGTID
• Controlled insertion boundaries through CXSLAST
• Compatibility with continuous-delivery constraints through CXSCONTINUOUSDATA
• Preserved ordering within each configured stream identity
• Efficient sharing of a wide link across independent traffic flows

Practical Use Cases for CXS Interleaving

Multi-Protocol Controller Connectivity

Independent protocol flows can share a wide CXS transport while retaining explicit protocol identity. This is useful for packetized communication between an on-chip interconnect and protocol controllers such as CHI, PCIe, CCIX, or CXL controllers.

Multi-Node and Modular Subsystem Fabrics

Source and target identifiers allow flows using the same protocol to remain distinguishable when multiple initiators and endpoints share the transport. This supports modular subsystem and multi-node designs without requiring a dedicated physical link for each route.

Mixed-Latency and Variable-Length Traffic

Legal insertion points allow a ready independent stream to use link capacity without waiting for an unrelated long sequence to drain. This can reduce avoidable head-of-line blocking while retaining stream-specific ordering and contiguity requirements.

These are architectural advantages rather than an automatic guarantee of performance. Realized latency and throughput also depend on buffering, credit round-trip latency, arbitration policy, packet-size distribution, and downstream service behavior.

Functional Verification Challenges

Interleaving introduces state that extends beyond a single packet. Many defects are therefore temporal and cross-flit rather than simple signal-value errors.

Stream Identity Integrity

Verification must detect changes to CXSPRCLTYPE, CXSSRCID, or CXSTGTID within a multi-flit packet and reject flits that incorrectly combine packets with different protocol or route identities.

Insertion-Boundary Correctness

The environment must detect another stream inserted after CXSLAST was Low when continuous delivery is required, as well as premature assertion of CXSLAST while a packet or protected packet group remains incomplete.

Ordering and Packet Reconstruction

Flits within the same stream must remain ordered, and packet continuation must be tracked independently for every enabled stream. An incorrect model can either miss same-stream reordering or falsely impose ordering across independent streams.

Credit and Delivery Continuity

Verification must stress packet starts near credit-pressure boundaries and ensure uninterrupted delivery where continuous mode requires it. It should also identify over-constrained arbitration that blocks legal stream insertion and reduces achievable efficiency.

Verification Strategy

Protocol and Flit-Level Checking

Sample CXSPRCLTYPE, CXSSRCID, and CXSTGTID with CXSDATA and CXSCNTL whenever CXSVALID is high. Check identity stability across multi-flit packets, common identity for every packet packed into one flit, and the independent correctness of START, END, pointer, and ENDERROR fields.

Stream-Aware Scoreboarding

Key scoreboard state by the complete enabled stream identity: protocol type for earlier configurations, or protocol type with source and target identifiers for issue D. Track packet continuation, expected bytes, protected packet-group state, ordering, and insertion permission independently for each stream.

Credit and Continuity Stress

Randomize credit depth and credit-grant latency, start long packets near constrained-credit conditions, and verify consecutive delivery where continuous mode requires it. Include simultaneous credit grant and use, as well as legal transitions between independent streams.

Coverage and Negative Testing

Cross protocol type, source ID, target ID, previous and next stream, CXSCONTINUOUSDATA, CXSLAST, packet length, flit count, packets per flit, insertion outcome, and credit conditions. Add directed violations such as mid-packet identity changes, illegal insertion, premature CXSLAST, same-stream reordering, mixed identities within a flit, reserved protocol values, and identifier-width mismatches.

Cadence CXS VIP Solution

Cadence CXS Verification IP provides protocol-compliant stimulus, monitoring, checking, coverage, and debug capabilities for interleaving across multi-protocol and multi-node configurations. It enables verification environments to generate concurrent streams, validate complete stream identities, reconstruct packets independently for each stream, and check insertion, ordering, credit, and continuous-delivery behavior.

• Concurrent generation of multi-protocol and multi-node streams

• Checks for CXSPRCLTYPE, CXSSRCID, CXSTGTID, and CXSLAST rule compliance

• Stream-aware packet reconstruction and ordering validation

• Credit-pressure and continuous-delivery stress scenarios

• Functional coverage across stream identities and insertion boundaries

• Debug visibility into stream transitions, insertion points, and continuity violations

By mapping stream-aware stimulus, checking, coverage, and debug directly to CXS interleaving risks, Cadence CXS VIP helps teams validate both protocol compliance and end-to-end stream correctness across shared CXS fabrics.

Conclusion

AMBA CXS evolves a wide, credited link into a scalable shared transport for multi-protocol and multi-node traffic. Through CXSPRCLTYPE, CXSLAST, CXSCONTINUOUSDATA, CXSSRCID, and CXSTGTID, CXS enables controlled interleaving while preserving stream ordering, route identity, packet reconstruction, and required contiguity.

Because correctness depends on interactions across packets, flits, node routes, credits, and insertion boundaries, verification must be stateful and stream-aware. Cadence CXS VIP provides the stimulus, checking, coverage, and debug capabilities needed to verify these interactions as designs scale from point-to-point protocol links to multi-node fabrics.
