C-PHYv3.0 Verification, 35% Throughput Boost for Camera and Display Designs

With the evolution of advanced camera systems and higher-resolution displays for mobile devices, the challenges for MIPI (Mobile Industry Processor Interface) based systems are increasing for physical interfaces to operate efficiently over bandwidth-limited channels while supporting higher data rates, reliable signal integrity, lower power, and EMI sensitivity, along with minimal verification complexity. MIPI CPHY solution provides innovative three-phase symbol encoding methodology, enabling significant data rates with high throughput, designed specifically to connect peripherals such as displays and image sensors, with the added advantage of sharing pin-level coexistence with DPHY (Simulation VIP for MIPI D-PHY, C-PHY and A-PHY | Cadence), providing manufacturers the flexibility to build integrated devices that can support both interfaces without added silicon cost.

Introduction to CPHY

MIPI CPHY is a trio-based embedded clock physical layer interface used to connect cameras and displays to application processors. Unlike DPHY, CPHY operates on three wire lanes (A, B, and C) encoding the protocol data through transitions between different wire states instead of direct voltage levels, eliminating the need for separate clock lanes. The key advantages of using CPHY include:

• Ternary signaling architecture where each symbol is represented using one of the six valid wire states (while operating in 6-wire state mode), delivering 16 bits over seven symbols, producing a yield of 2.28 bits/symbol.
• Simplified clock recovery through timing retrieval from state transitions at symbol boundaries.
• Low Electro Magnetic Interference (EMI) due to the use of three-phase signaling, canceling common mode noise, making it an excellent candidate to be operated on with RF receivers on mobile SoCs.
• Low pin count, flexible lane allocation, and many more.

Developments in CPHYv3.0

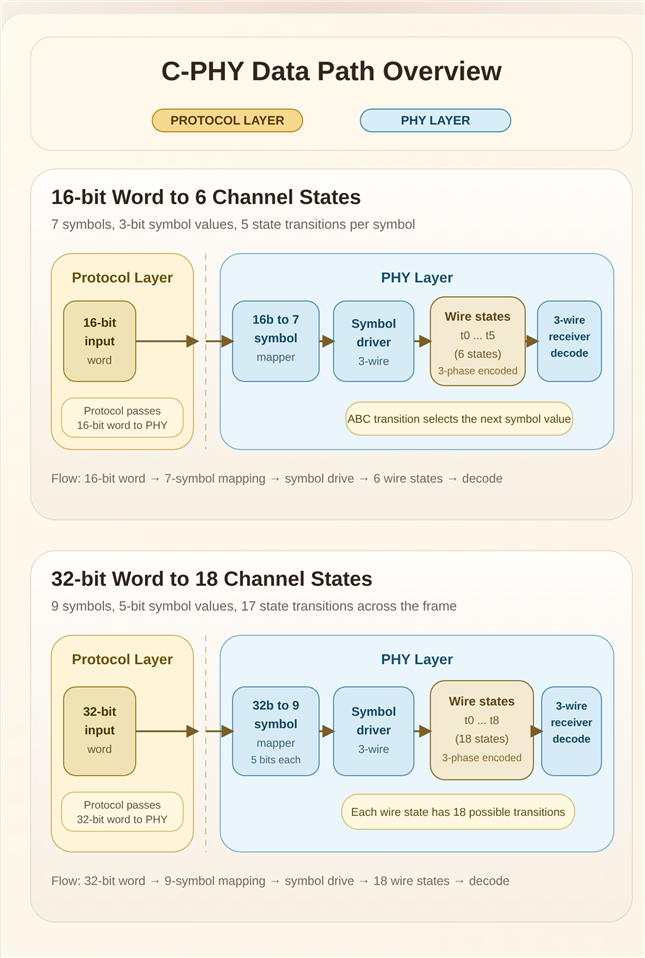

The new 18 wire state mode introduced in CPHYv3.0 opens the door to meet the demands for high-resolution display and image sensors, motion vector generators and complex compute platforms, all without adding more physical interconnects. With new encoding scheme introduced in version 3.0, we can now transport 32 bits over 9 symbols (3.556 bits/symbol) which is significant improvement in bits-per-symbol efficiency thus increasing overall performance by approximately 30-35% while maintaining proven industry leading characteristics and full backward compatibility.

The 18 wire state mode is optional and implementations can continue to use 6 wire state mode without any changes giving designers the flexibility to adopt the new mode selectively in performance critical applications while keeping the existing proven design unchanged.

In the traditional 6 wire state mode, each of three wires (A,B,C) were driven to one of three voltage levels creating constraint that at least one wire must always transition to next valid state, 18 wire state relaxes this constraint by introducing additional intermediate voltage levels and drive combinations where each symbol carries more information. The three wires still use the same physical pins but it creates challenges for transmitter and receiver across every layer of verification stack to support finer voltage discrimination and complex clock recovery logic.

Key Verification Challenges

• Encoding/decoding complexity: The mapper and demapper become substantially complex, requiring rigorous stimulus to verify all state transitions.
• Clock recovery and timing: With more states, the CDR (clock-data recovery) circuit faces more complex symbol boundaries than earlier.
• Calibration and training sequences: Operating in 18-wire state mode requires resolving tighter voltage thresholds.
• Backward compatibility and mode negotiation: Newer implementations must be capable of interoperate with legacy devices and negotiating capabilities with link partners.
• Error detection and handling: Undetected error rate is potentially higher, resulting in silent data corruption.
• Protocol layer interaction: With an effective increase in data rate, flow control, and adaptation between the protocol and PHY layer must be verified under burst and sustained traffic patterns.

The 18 wire state mode in CPHYv3.0 delivers a compelling throughput improvement, but it trades noise margins and operational complexity for bandwidth, making verification a true challenge for digital logic correctness, signal integrity, and protocol compliance at system level integration

Simplifying 18-Wire State Mode with Cadence CPHY VIP

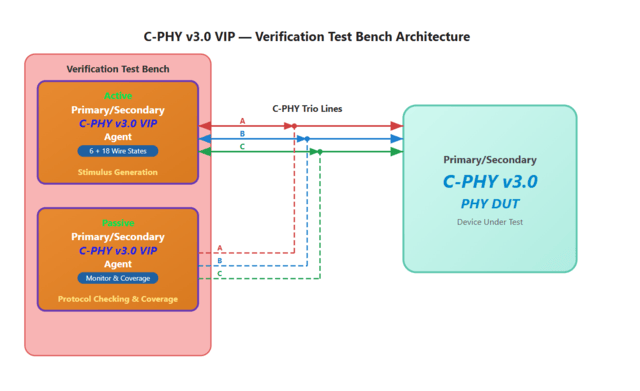

Cadence CPHY Verification IP (Simulation VIP for MIPI D-PHY, C-PHY, and A-PHY | Cadence) is built to address all the above-mentioned challenges, delivering a single, unified verification solution for CPHYv3.0 design adoption. It provides a golden reference model that can act as both primary and secondary in active/passive modes, fully compliant with the specification, supporting HS data burst with the 18-wire state mode, new ALP initialization, calibration for 18-wire state mode, PRBS mode 2, and all other features. Our Verification IP solution includes built-in protocol checks and assertions, functional coverage model, error injection and fault coverage with different levels of callbacks for scoreboarding, static and dynamic configuration support for complete simulation control, and pre-built sequences for constrained random stimulus generation with easier integration. Cadence VIP eliminates the verification gap, and customers can effectively validate their designs by leveraging these capabilities.
