Introduction

As PCIe bandwidth continues to double with every generation, complexity increases. The transition to flit mode, combined with advanced mechanisms such as replay buffers, flow control tracking, PAM4 signaling, and Forward Error Correction (FEC), has significantly improved link efficiency, but it has also made failure cause analysis far more challenging.

When performance drops unexpectedly, retry counts increase, or a switch experiences traffic congestion, debug becomes difficult, making users trace the root cause. Traditional techniques provide only a partial view of what is happening inside the link, making debug a time-consuming and often frustrating process.

To address this visibility gap, PCIe introduced the NOP.Debug flit, a standardized mechanism for transporting diagnostic information directly over the PCIe link. Instead of relying solely on external debug aids, devices can communicate valuable runtime information such as flow-control status, retry counters, buffer occupancy, trace capture triggers, and other diagnostic data through structured debug chunks embedded within a NOP.Debug flit.

Debug flits act as a built-in telemetry channel for PCIe links, rather than guessing why throughput is low or why replay activity is increasing; users can access real-time protocol state information directly from the communicating devices. The result is faster root-cause identification, improved performance analysis, and more efficient validation of complex PCIe systems.

NOP Debug Flit Layout and Details of Fields

A single debug flit can contain multiple chunks, and chunks from different vendors may coexist within the same flit. Unused space is filled using empty debug chunks.

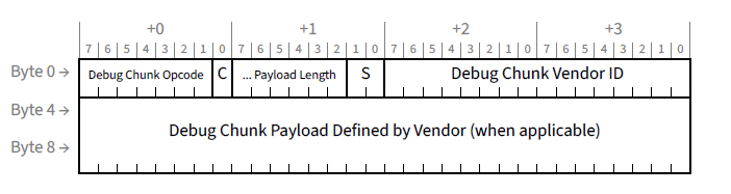

 Figure 1: NOP.Debug flit debug chunk

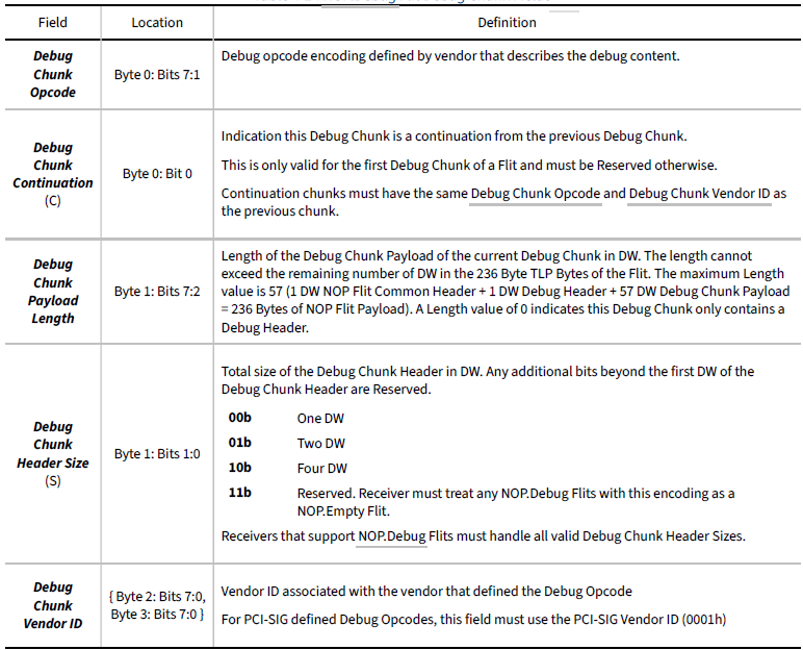

Figure 2: NOP.Debug flit debug chunk fields

Opcode

Debug chunk type

Purpose

0000000b

Empty debug chunk

Padding/alignment, contains no debug data

0000001b

Start capture trigger debug chunk

Trigger trace capture start

0000010b

Stop capture trigger debug chunk

Trigger trace capture stop

0000011b

FC information tracked by transmitter

TX flow-control debug

0000100b

FC information tracked by receiver

RX flow-control debug

0000101b

Flit mode transmitter retry flags and counters

TX retry status and counters

0000110b

Flit mode receiver retry flags and counters

RX retry status and counters

0000111b

Buffer occupancy debug chunk

Reports current buffer occupancy

0001000b

Link debug request debug chunk

Requests debug information from link partner

Table 1: PCI-SIG-defined debug chunk Opcodes

Advantages of Debug Flits

Instead of relying entirely on internal DUT signals, verification environments can now observe protocol state through architecturally defined mechanisms.

This improves:

  • Root-cause analysis
  • Debug productivity
  • Functional coverage
  • Silicon correlation
  • Interoperability testing

Debug Flits Verification

  • From a verification standpoint, debug flits introduce an entirely new feature set that must be validated.
  • The challenge is not simply verifying that a debug flit is transmitted, but one must ensure that the debug information contained within the flit accurately reflects the internal state of the DUT.
  • This shifts verification from validating protocol transactions to validating protocol introspection.

For this, some crucial negative scenarios must include:

1. Stress Testing with High-Volume Traffic and Credit Starvation

This scenario verifies how the DUT behaves when flow-control credits are exhausted under heavy traffic conditions. Debug flits carrying flow control information help determine whether throughput degradation is caused by credit starvation, incorrect credit accounting, or transmission throttling.

2. Flit Replays Caused by CRC/FEC Error Injection

Creating error injection scenarios by CRC or FEC corruption, such that replay mechanism is triggered and validate retry behavior. Additionally, debug flits provide visibility into retry counters and replay activity, helping confirm that replay handling and sequence-number management are functioning correctly.

3. Handling Corrupted Debug Flit Headers

A robust PCle implementation must safely detect and discard malformed debug flits without affecting normal traffic. Verification should ensure that corrupted opcodes, invalid lengths, or malformed headers are handled gracefully and do not cause protocol errors or unexpected behavior.

4. Buffer Occupancy Reporting

Buffer occupancy debug chunks provide insight into congestion within endpoints or switches. By creating traffic hotspots and buffer pressure scenarios, validation of the reported occupancy can be done to check whether it accurately reflects the actual buffer usage and helps identify performance bottlenecks quickly.

Conclusion

As PCIe systems continue to grow in bandwidth, scale, and complexity, the ability to understand what is happening inside the link becomes increasingly important. Debug flits represent a major step forward in PCIe observability. By providing standardized access to flow-control state, retry information, buffer occupancy, and trace-capture controls, they enable engineers to debug complex protocol issues with significantly greater efficiency.

In the flit era of PCIe, debug flits are not just another protocol feature. They are a powerful visibility framework that transforms debugging from guesswork into insight. Cadence PCIe VIP solutions are proven to verify the PCIe7 features and provide a seamless usage model to cater to the verification of these complex features.
