Don’t Let Constraint Random Verification Become Your Nightmare!

Use a graphical view to help with debugging by harnessing visual tools to demystify complex verification environments

Introduction

The rapid evolution of digital systems has brought a surge in design complexity, making functional verification a cornerstone of modern hardware development. SystemVerilog has emerged as a powerful language at the heart of this verification landscape, especially with its constraint-random approach. However, the very features that make SystemVerilog constraint-random robust and flexible also introduce significant challenges. In this article, we'll explore these hurdles and discover how graphical visualization techniques offer new avenues for understanding, debugging, and optimizing constraint random verification.

The Promise and Complexity of SystemVerilog Constraint Random

SystemVerilog's constraint-random verification paradigm empowers engineers to create flexible and reusable testbenches. Instead of hand-crafting every single test case, verification engineers define constraints—rules that govern the valid states and values for variables. The simulator then creates randomized test scenarios within these constraints, uncovering corner cases that might otherwise go untested.

While this methodology boosts coverage and uncovers subtle bugs, it isn't without its pains. The constraint random approach relies heavily on the quality of constraints and the engineer's ability to reason about them. As designs grow in scale and constraints become more intricate, the verification task can feel like navigating a dense, uncharted forest.

The Core Challenges of Constraint Random in SystemVerilog

Constraint Interactions and Debugging

Unexpected behaviors can arise once multiple constraints interact, sometimes across deeply nested objects and random sequences. Constraints may conflict, overlap, or inadvertently block legal scenarios (so-called "over-constraining"), or they may be too loose, allowing illegal scenarios to slip through ("under-constraining").

Debugging constraint interactions is often non-trivial. The simulation may silently fail to generate valid random values, or worse, generate values that barely respect the intent of the verification plan. Pinpointing the source of the issue—a misplaced logical operator, a missing implication, or a subtle interaction between soft and hard constraints—can consume hours or days.

Constraint Coverage Gaps

Constraint random generation is powerful, but it isn't magical. Achieving high functional coverage depends on well-written constraints and sufficient simulation cycles. Coverage holes may remain undetected, especially if complex conditional constraints create regions of the solution space that are unreachable or rarely sampled. Engineers must answer difficult questions: Are all legal scenarios possible? Are there unreachable states due to constraint logic? Where are the gaps? In addition to constraint random, new technologies, such as Cadence's Verisium SimAI, are using AI-powered technology to reduce regression efforts and increase coverage.

Performance Bottlenecks

As constraints become more sophisticated, the time and computational resources needed for the randomization engine to solve them can balloon. Highly interdependent constraints may cause the solver to spend excessive cycles searching for valid assignments, slowing down regression runs. Poorly performing constraint solvers directly impact project schedules.

Limited Observability and Intuition

Perhaps the most insidious challenge is that SystemVerilog constraint random operates mostly as a "black box." The solver takes constraints, mixes them with seeds and randomization directives, and produces results invisibly. Engineers have limited visibility into the decision-making process, which can make it hard to build intuition about why certain values are chosen, how the constraints interact, and which regions of the solution space are heavily or lightly exercised.

The Case for Graphical Visualization

How can we tame the complexity of constraint random verification? The answer lies in making the invisible visible through graphical visualization.

Graphical visualization is more than an aesthetic add-on. It fundamentally transforms how engineers interpret, debug, and refine their verification environments. Visualization tools empower verification teams in several ways by providing tangible representations of constraints, solution spaces, randomization statistics, and coverage data.

Mapping Constraint Spaces

Graphical tools allow engineers to represent constraints and their interactions as graphs or matrices. For example, constraints on variables can be shown as nodes, with edges representing dependencies or conditional relationships. This "map" reveals at a glance where constraints converge, overlap, or might conflict. Complex hierarchies become traversable landscapes, rather than obscure code.

Spotting Conflicts and Gaps

When constraints are visualized, conflicts and unreachable scenarios often become obvious. Visualization tools can highlight "dead zones"—regions of the solution space that are impossible to generate due to contradictory constraints. Conversely, sparsely sampled regions can be identified and targeted for improved coverage. Engineers can iteratively refine constraints to eliminate bottlenecks and unreachable states.

Understanding Randomization Statistics

A graphical approach doesn't just help with static analysis—it illuminates dynamic behavior. Histograms, heat maps, and scatter plots can show the distribution of randomized values over time. This allows engineers to see if the constraint solver favors certain values or patterns, flagging potential biases or inefficiencies.

Enhancing Communication and Collaboration

Complex constraint logic is notoriously hard to communicate, even among experienced verification engineers. Visualization bridges this gap, offering a common language for teams to discuss, review, and improve constraints. New team members can get up to speed more quickly, and design/verification teams can collaborate more effectively on coverage goals and debug sessions.

Accelerating Debug and Optimization

When a simulation fails to generate a scenario or produces unexpected results, visualization aids in rapid root-cause analysis. By tracing the path through the constraint graph, engineers can home in on problematic interactions and resolve them efficiently. Visualization tools that support "what-if" scenarios (e.g., turning off a constraint to see the impact) make this process even more powerful.

Integrating Visualization into the Verification Flow

The power of graphical visualization is best realized when tightly integrated into the verification environment. Cadece's Verisium Debug is a powerful, full-featured debug platform that provides a new capability to help extract constraint randomization information, with a graphical visualization. Verisium Debug enables the ability to understand the structure, relationship, and sequence of the constraint-solving process.

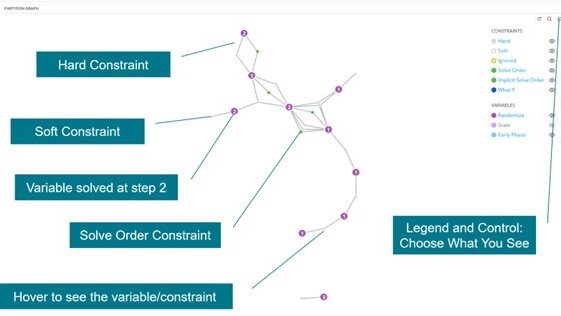

Fig. 1 Partition Graph of Constraint Randomization

The graphical representation of the randomization partition graphic makes it easier for engineers to understand the type of constraints and how variables are resolved. With the information, engineers will have a hint to understand why certain values of a variable are not properly generated.

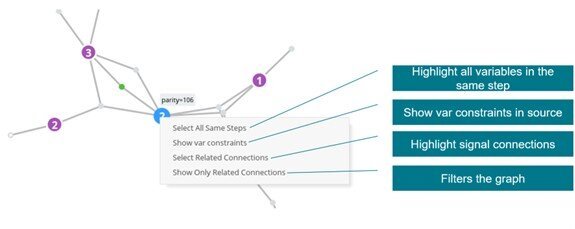

Fig. 2 Actions in the Partition Graph

In addition to the graphical view, engineers can easily link to the source code to review it to fix any issues.

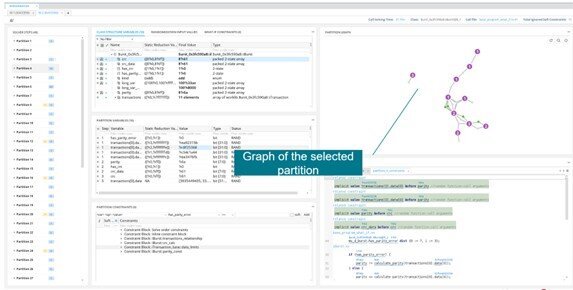

Fig. 3 Integrated Debug Environment with Partition Graph

Verisium Debug also provides the so-called "What-if" capabilities, which allow engineers to quickly turn off a selected constraint to determine if it is not properly given without actually changing the source code, recompiling, and re-running the design for simulation. The turnaround time for the engineers to get the result from the change has become so fast.

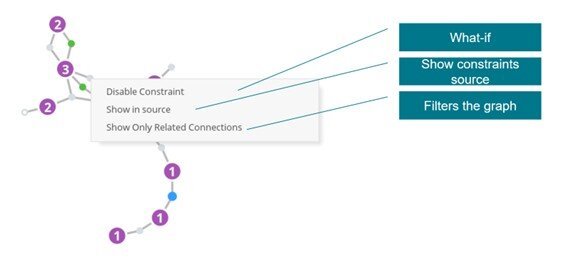

Fig. 4: What-If Analysis on Partition Graph

Conclusion

SystemVerilog constraint-random verification is both a superpower and a source of complexity for today's hardware engineers. As designs scale up and verification demands intensify, the challenges of debugging, coverage closure, and performance cannot be met by code alone. Graphical visualization brings clarity to the unseen, offering a window into the labyrinth of constraints and randomization. By embracing Verisium Debug, teams can not only master the art of constraint random verification but also deliver higher-quality designs with confidence.

The future of verification is not just about smarter code—it's about clearer insight. And sometimes, all it takes is a picture to tell a thousand lines of code.

Learn more about Cadence's Verisium AI-Driven Verification Platform and Verisium Apps.
