EUSB2 V2 Explained: Multi Gigabit Symmetric and Asymmetric Operation

8 Apr 2026 • 4 minute read

eUSB2‑V2 is stepping into the spotlight at a time when hardware designers are being asked to do something that sounds simple but deliver more performance, in less space, with lower power, and without compromising reliability. eUSB2‑V2 represents a major evolutionary step for the USB 2.0 ecosystem.  In this blog, we’ll break down what’s new in eUSB2‑V2, how it achieves multi‑gigabit HSx operation, and why symmetric/asymmetric modes unlock new design possibilities. We'll also explore the verification challenges that come with this leap

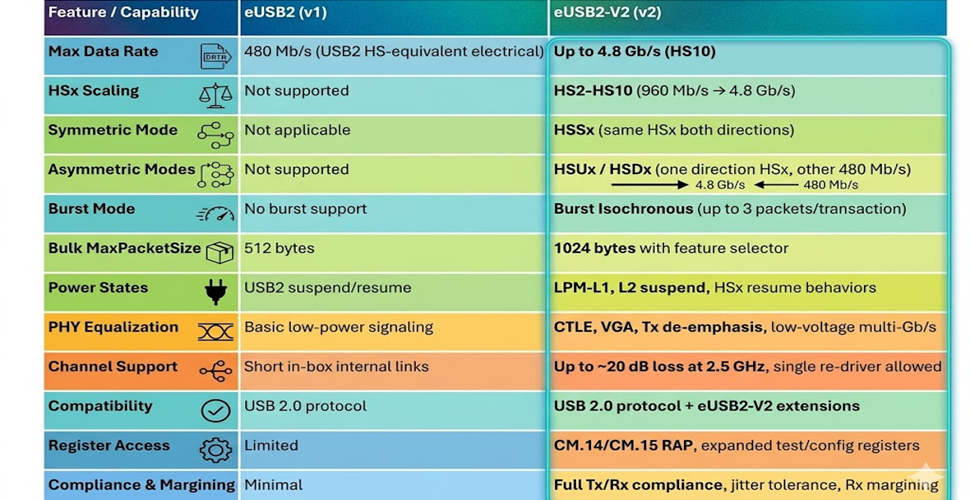

To set the stage, here’s a quick benchmark comparing eUSB2 v1 and eUSB2‑V2, highlighting just how significant this upgrade really is.

Why eUSB2‑V2 Exists in the First Place

For years, USB 2.0 has been the dependable “workhorse” interface. It’s everywhere—accessories, debugging ports, internal device links, and legacy compatibility layers. But as system‑on‑chip (SoC) platforms became more integrated, and as external connectors became less desirable inside tightly packed devices, traditional USB 2.0 wiring began to show its age. Designers needed something that could retain USB 2.0 software compatibility and ecosystem familiarity while better supporting advanced packaging, internal interconnects, and strict power constraints.

That’s where eUSB2 (embedded USB2) and its newer evolution, eUSB2‑V2, come in. It addresses the needs of internal, short‑reach connections where the “classic” USB 2.0 electrical assumptions—cables, connectors, long routes, and noisy environments—are no longer the norm. In short, eUSB2‑V2 is designed to let engineers keep the benefits of USB 2.0 while modernizing the physical layer for contemporary products.

“Multi Gigabit” — What Does That Really Mean?

At face value, “multi-gigabit – 4.8 Gb/s” is a throughput figure, and it immediately raises eyebrows because classic USB 2.0 High-Speed is known for 480 Mb/s, not multiple gigabits. The point here is that eUSB2‑V2 is discussing HSx data rates, where “HSx” signals a high-speed extended mode that can scale significantly beyond the original 480 Mb/s signaling rate.

Even if your final application won’t always run at the absolute peak rate, having a headroom ceiling in the gigabit range changes the design conversation. It can mean:

  • Faster internal transfers between modules
  • More responsive accessory or peripheral interactions
  • Better support for higher data-rate device functions without jumping to a completely different interface
  • The ability to consolidate what previously required multiple links or parallel paths

In many products, the limiting factor isn’t just raw compute it’s how quickly data can move between blocks. A higher-speed embedded link can relieve those bottlenecks.

Symmetric vs Asymmetric HSx Operation

One of the most distinctive strengths of eUSB2‑V2 is its ability to operate in either symmetric or asymmetric high‑speed modes:

  • HSSx (Symmetric): Both upstream (device → host) and downstream (host → device) operate at the same HSx multiplier.
    Example: HSS10 = 4.8 Gb/s in both directions simultaneously.
  • HSUx (Asymmetric Upstream): Upstream runs at an HSx speed (up to 4.8 Gb/s), while downstream remains fixed at 480 Mb/s.
    Example: HSU10 = 4.8 Gb/s upstream + 480 Mb/s downstream.
  • HSDx (Asymmetric Downstream): Downstream is HSx, but upstream runs at 480 Mb/s.
    Example: HSD8 = 3.84 Gb/s downstream + 480 Mb/s upstream.

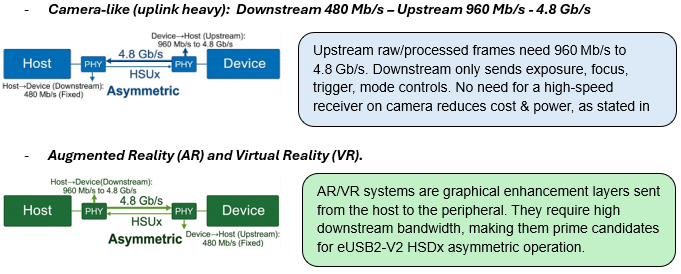

This asymmetric capability is not only unique but strategically significant. Many embedded peripherals—such as cameras—generate large upstream data flows (e.g., image streams) but need only modest downstream control bandwidth. In such cases, the SoC can eliminate the need for a high‑speed receiver on the peripheral side, reducing power, die area, and bill‑of‑materials cost. The specification explicitly states that asymmetric operation reduces peripheral complexity by avoiding the need for a gigabit‑class receiver.

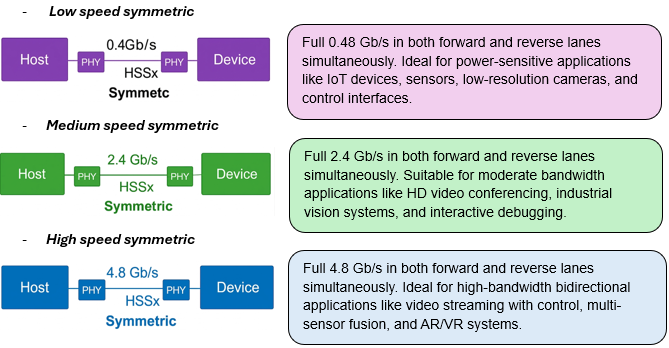

Symmetric Speed Examples (Both Directions Matched)



Asymmetric Speed Examples (Directional Optimization)



Asymmetric Link Behavior: Implications for Verification

  • Dynamic Link Speed Switching in eUSB2‑V2

In eUSB2‑V2 asymmetric mode, the link doesn’t run at the same speed in both directions. Even though the speed is different, both directions share the same physical wires (half‑duplex). This means the PHY must constantly switch between a very fast data burst (HSx) and a much slower control/handshake packet (480 Mb/s). If this switching is not perfectly timed, the receiver may not recognize the start of the next packet. This results in Wrong interpretation of SYNC, Squelch mis‑detect, Missed packet boundaries, Protocol timeouts.

  • Power‑State Interactions (L1/L2) Under Asymmetry

After L1/L2 resume, links must return to pre‑configured HSx in the fast direction and 480 Mb/s in the slow direction, with correct HSx SYNC and squelch exit sequencing. The verification hurdle is ensuring the Frequency Locked Loop (FLL) or PLL on the receiver can re-acquire the high-speed clock sync immediately upon wake-up without dropping the first few packets of the data burst. Cadence VIP addresses each of these challenges.

  • Maintains UI’s between packets: Correct UI timing between packets is automatically enforced, preventing subtle timing violations that silicon might easily miss.
  • Signal‑level recovery (SYNC + squelch) is correct at the new rate: SYNC and squelch transitions are validated at every HSx rate, ensuring reliable signal‑level behavior during dynamic speed changes
  • Scheduler visible timing (SOF/EOP) does not drift or misalign: SOF/EOP timing accuracy are checked so that host scheduling remains stable even after resume, bursts, or asymmetric transitions.
  • PHY configuration is restored exactly as before suspend operation: PHY state is tracked across suspend/resume cycles to guarantee the link reinitializes at the exact pre‑suspend configuration.
  • On‑the‑fly protocol checking: Live traffic is monitored to flag protocol issues instantly, without requiring post‑processing or manual waveform inspection.

Cadence has a comprehensive Verification IP solution for the verification of various aspects of eUSB2 Version 2.0 (eUSB2v2), with capabilities provided to do a comprehensive verification of all features. You may contact the local Cadence account team to get more details on eUSB2v2 VIP.

For more information on how Cadence eUSB2 V2 Verification IP enables users to confidently verify eUSB2 V2 designs, see our product pages on VIP for eUSB2V2

For more details, reach out to us at talk_to_vip_expert@cadence.com
