Evolution of AMBA AXI Protocol: An Introduction to the Issue L Update

26 Sep 2025 • 3 minute read

To gain a comprehensive understanding of AMBA® AXI Issue L (AXI-L) protocol update, it is essential to first study the AXI-K specification, as AXI-L is built upon and extends the features introduced in AXI-K. The AXI-L protocol inherits the foundational concepts of AXI-K while introducing enhancements such as credit-based transport and improved flow control mechanisms.

Historically, all versions of the AXI protocol have employed the VALID/READY handshake mechanism across all channels to manage data transfer. However, in AXI-L, AMBA has introduced a new credit-based transport mechanism, replacing the traditional VALID/READY handshake. This marks a significant shift in the protocol's transport methodology.

By adopting the new credit-based transport mechanism introduced in AXI-L, users can benefit from several key advantages over the traditional VALID/READY handshake approach:

Attribute	VALID/READY Handshake	Credit-Based Transport
Transport Mechanism	Handshake using VALID and READY signals	Pre-issued credits for transaction control
Throughput Efficiency	May suffer from idle cycles due to handshake delays	Higher throughput with better pipelining
Latency	Increased latency due to per-transaction handshakes	Reduced latency by allowing multiple outstanding transactions
Flow Control	Reactive, based on READY signal	Proactive, based on available credits
Scalability	Less efficient at high frequencies or bandwidths	More scalable for high-performance systems
Predictability	Less deterministic due to dynamic READY assertion	More deterministic and predictable behavior
Complexity	Simpler to implement and debug	Slightly more complex due to credit management
Use Case Suitability	Suitable for simpler or lower-bandwidth designs	Ideal for high-throughput, low-latency, and real-time applications

AMBA has introduced a new property named AXI_Transport in the AXI5 specification. By default, this property is set to use the traditional VALID/READY handshake mechanism. However, when explicitly configured by the user, it enables the new credit-based transport mechanism. This feature is applicable only to AXI5 and is not supported in earlier versions of the AXI protocol. It is important to note that when the credit-based transport is enabled, the wakeup_signal is not supported.

The flow control rules for the credit-based mechanism are defined in the AMBA specification:

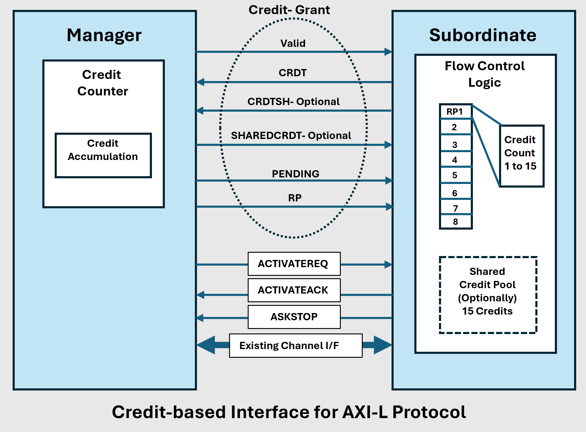

The minimum number of credits that a receiver can allocate is 1 per Resource Plane (RP).
The maximum number of credits that a receiver can allocate is 15 per RP, along with an additional 15 shared credits.

To maintain transaction integrity, the following constraints apply:

For any given write transaction, the AW (Write Address) and W (Write Data) channels must use the same RP number.
The B (Write Response) and R (Read Data) channels are restricted to a single RP, ensuring consistent response routing.

Additionally, channels that support multiple RPs may optionally implement shared credits. This mechanism enhances buffer utilization efficiency, particularly in scenarios where throughput varies across different RPs. AXI-L explicitly supports shared credit compatibility, allowing for more flexible and efficient flow control in complex system designs.

The key advantages of AXI-L include:

1. Enhanced Transport Efficiency

Credit-based transport replaces the traditional VALID/READY handshake, reducing latency and improving throughput.
Enables better pipelining and fewer idle cycles, especially in high-performance systems.

2. Support for Write Interleaving

Introduction of the Resource Plane allows write interleaving, which was not supported in AXI3.
Improves memory bandwidth utilization and parallelism in write operations.

3. Shared Credit Mechanism

Shared credits across multiple RPs allow dynamic buffer utilization, adapting to varying traffic patterns.
Enhances system flexibility and performance under bursty or uneven workloads.

4. Improved Flow Control

Flow control is more deterministic and scalable, with clearly defined credit limits.
Reduces the complexity of managing READY signal timing and backpressure.

5. Optimized for AXI5

Tailored for AXI5 architecture, aligning with modern SoC requirements such as low latency, high throughput, and real-time responsiveness.

6. Better Resource Utilization

Credit-based flow control enables predictable resource allocation, improving quality of service (QoS) and system-level scheduling.

AXI-L is fully supported by Cadence VIP. For any additional clarification or technical assistance, users are encouraged to reach out through talk_to_vip_expert@cadence.com.
