UCIe Manageability: The Hidden Control Plane of Chiplet Systems

Chiplet-based architectures are quickly becoming the foundation of next-generation silicon systems. While most attention goes to high-bandwidth die-to-die links and data protocols like PCIe or CXL, an equally important layer operates quietly in the background: System Manageability.

Section 8 of the Universal Chiplet Interconnect Express (UCIe) Specification introduces the manageability architecture, which defines a standardized framework for discovering, configuring, and controlling chiplets inside a System-in-Package (SiP).

For system architects and verification engineers, this layer effectively functions as the control plane of a chiplet system, enabling firmware, debug tools, and system software to interact with chiplets using a consistent management infrastructure.

Why Manageability Matters in Chiplet Systems

Unlike monolithic SoCs, chiplet-based systems often integrate dies from multiple vendors, each with different internal architectures. Without a common management framework, system-level operations such as configuration, monitoring, and debug would require vendor-specific solutions, complicating system integration.

UCIe manageability addresses this by defining a management network spanning all chiplets within the package. Through this network, system firmware can perform essential operations including:

• Chiplet discovery during system initialization
• Chiplet ID assignment and topology configuration
• Remote register access and telemetry collection
• Firmware loading and system configuration
• Debug and diagnostic access
• Security configuration

Core Components of Manageability Architecture

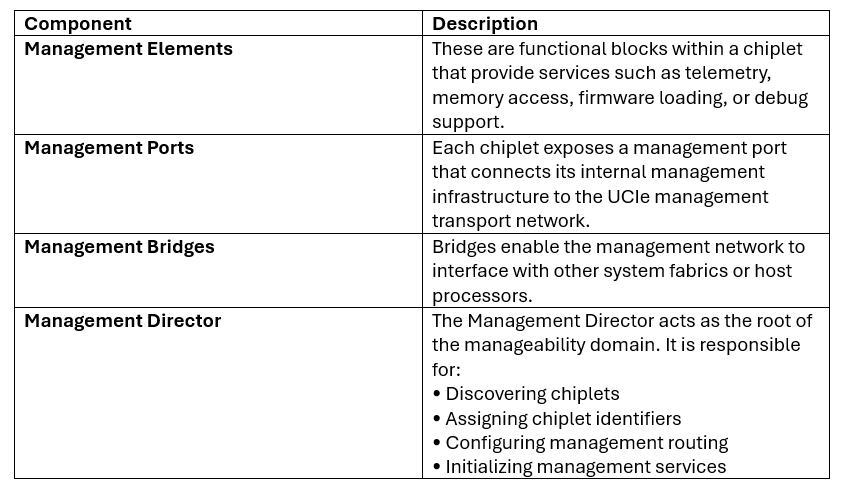

At a high level, UCIe manageability defines a distributed management infrastructure composed of several architectural elements.

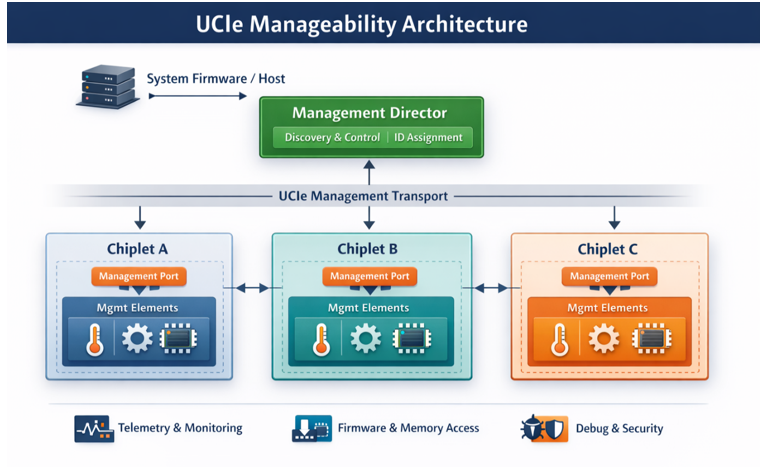

Conceptually, the architecture can be visualized as a management network connecting chiplets across the package:

How Management Communication Works

UCIe defines a dedicated Management Transport protocol that enables communication between management entities across chiplets.

Each management entity is identified by a Management Network ID, composed of:

• Chiplet ID
• Entity ID

This addressing scheme allows management messages to be routed to any management element across the package.

The transport packets carry requests and responses for different management protocols, including memory access operations and vendor-defined services.

A Key Capability: Cross-Chiplet Memory Access

One of the most useful capabilities enabled by the manageability architecture is the UCIe Memory Access Protocol (UMAP).

UMAP allows software or firmware running on a management controller to read or write registers located inside remote chiplets.

This capability enables:

• Remote configuration of chiplet registers
• Firmware loading across chiplets
• Collection of telemetry data
• Debug access during validation and post-silicon bring-up

Because the protocol is standardized, system integrators can interact with chiplets from different vendors using a unified mechanism.

The Bigger Picture

As chiplet ecosystems mature, manageability becomes essential for enabling interoperability, scalability, and lifecycle management.

The architecture defined in the UCIe specification effectively creates a standardized control plane for chiplet systems, enabling:

• Consistent system discovery
• Vendor-agnostic management services
• Scalable debug and telemetry infrastructure

For verification teams, this means that validating a UCIe system is no longer just about link correctness—it also involves system-level management flows that span multiple chiplets and protocols. Key focus areas include:

• Management packet routing across chiplets
• Chiplet discovery and ID assignment during initialization
• Remote register access using UMAP

These topics deserve deeper exploration and will be covered in future posts. Stay tuned!
