Unraveling Embedded Clock Mode in MIPI D-PHY: Simplifying High-Speed Serial Link

As flagship smartphones push camera sensors beyond 200 megapixels and display resolutions beyond 4K, and as automotive applications demand ever-higher bandwidth, the physical layer interfaces connecting these components must evolve in lockstep. The MIPI D-PHY specification—the dominant high-speed serial interface for camera and display subsystems—introduced Embedded Clock Mode (ECM) in version 3.5 to address exactly this challenge. ECM eliminates the dedicated clock lane, embeds timing information directly into each data lane, and uses encoding to enable robust clock data recovery at the receiver. This improves overall throughput. This blog post explores how ECM works, what it means for SoC designers, and how Cadence Verification IP provides comprehensive ECM verification support.

Why Embedded Clock Mode Matters

Traditional D-PHY links operate in Forwarded Clock Mode (FCM), where a separate clock lane distributes the sampling clock alongside one or more data lanes.

Salient features of Forwarded Clock Mode (FCM):

• Easy and simple implementation need
• Bandwidth capability up to 9 Gbps
• Bus Turnaround capability
• Half-duplex operation
• Multi-channel reach support
• Conventional low power signaling
• Optional Alternate Low power mode
• Differential signal transmission

This architecture works well at moderate data rates, but at higher speeds it introduces several pain points:

• Skew management between clock and data lanes becomes increasingly difficult as frequencies rise
• Pin count grows because every link requires a dedicated clock lane pair
• Routing complexity increases on densely packed mobile SoC packages and flex-cable interconnects

ECM solves these problems by removing the clock lane entirely. Each data lane carries its own embedded timing, and the receiver uses a Clock Data Recovery (CDR) circuit to extract the clock from the incoming data stream. Because ECM reuses the same interconnect and electrical specifications as FCM (the same differential signaling, the same LP-mode control), designers can adopt it without redesigning their physical channel.

Key characteristics of ECM:

• No clock lane – Additional data lane available
• Encoding – is preferred because it provides high bandwidth efficiency with very low overhead, while still allowing the receiver to identify block type and maintain synchronization
• Data scrambling – to ensure sufficient bit transitions for CDR operation
• Control codes – use a repetitive pattern for error redundancy and DC balance
• Training Pattern – enables the receiver's CDR to lock before payload data arrives
• Alternate calibration – enables inter-symbol interference (ISI) calibration
• Enhanced EMC performance
• Overall improved throughput

Cadence Verification IP Support for D-PHY ECM

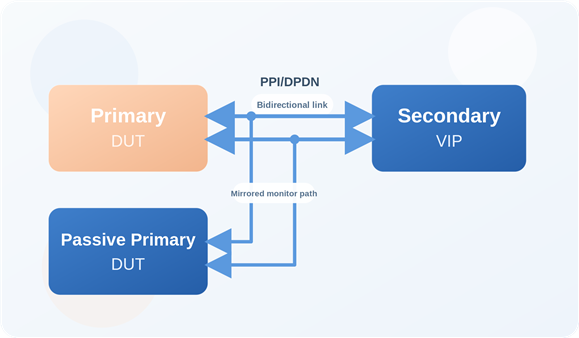

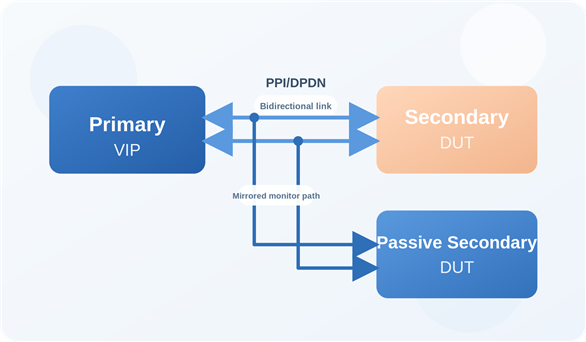

Verifying ECM compliance is complex: designers must ensure correct encoding, proper training pattern generation, control code integrity, CDR lock behavior, and adherence to timing specifications across all corner conditions. The Cadence MIPI D-PHY Verification IP (MIPIPHY_ACD) delivers comprehensive, out-of-the-box ECM verification through full feature support for the following types of topologies: Secondary as DUT and Primary as DUT for both PPI and DPDN interfaces.

The ECM features that are supported include:

• Training patterns – The VIP autonomously generates, transmits, and monitors the training sequences that the receiver CDR relies on for lock acquisition and periodic re-training, verifying both content and timing accuracy.
• Control codes – Complete generation and parsing of control codes is built in, enabling the VIP to validate correct insertion points, symbol integrity, and end-to-end interpretation at the receiver.
• Encoding and decoding – The VIP implements the full logic, allowing it to verify that every transmitted payload symbol is correctly encoded at the transmitter and decoded at the receiver, catching disparity errors and illegal symbol violations.
• Data scrambling and descrambling – ECM-critical scrambling logic is exercised to preserve data integrity.
• ECM-specific PPI signals – All protocol interface signals unique to Embedded Clock Mode are driven and monitored for protocol compliance.
• Protocol checkers – A rich set of built-in protocol checkers continuously monitors the bus for specification violations — illegal state transitions, timing infractions, corrupted control codes, and encoding rule breaches — flagging issues in real time with detailed diagnostic messages.
• Error injection via callbacks – The VIP supports callback-based hooks that allow verification engineers to corrupt control codes, training patterns, and control code headers at precise points in the transaction flow, enabling thorough negative testing of receiver error-detection and recovery mechanisms without modifying the core stimulus.

The VIP is fully configurable between FCM and ECM through a single clockmode parameter, making it straightforward to switch verification environments and achieve coverage across both operating modes. Together, these capabilities allow verification teams to move from initial bring-up to sign-off-quality ECM coverage rapidly, with confidence that both nominal operation and corner-case failure modes have been rigorously exercised.

Learn more about Cadence D-PHY Verification IP, including key features, capabilities, and benefits, by visiting our product page: Simulation VIP for MIPI D-PHY, C-PHY, and A-PHY.
