Unraveling Streamlined Virtual Channel Extended Capability (SVC)

• 6 minute read

Introduction

The Streamlined Virtual Channel Extended Capability (SVC) was introduced on Specification 6.1 to address limitations of the traditional PCIe ordering model in modern multi-host fabrics. While earlier mechanisms such as Relaxed Ordering (RO) and ID-Based Ordering (IDO) provided partial solutions, they did not fully solve the challenges associated with multiple traffic paths and fabric-wide traffic management. The traditional PCIe ordering mechanisms solve ordering at the transaction level, but they don't provide a mechanism for coordinating TC-to-VC assignments when multiple hosts and paths share switching resources. SVC introduces a standardized approach for TC-to-VC assignment across a PCIe fabric, allowing a Fabric Manager to establish consistent traffic policies and avoid conflicts that can occur when multiple hosts share the same switching infrastructure. This blog provides an overview of SVC features.

Feature Compatibility

A Port may implement the SVC Extended Capability alongside traditional Virtual Channel (VC) or Multi-Function Virtual Channel (MFVC) capabilities. However, UIO support is exclusively tied to the SVC architecture and cannot be provided through the legacy VC or MFVC mechanisms.

Although UIO operation is supported only in Flit Mode, the SVC capability itself is not limited to Flit Mode operation. In Non-Flit Mode, the SVC structure may still be used to support TC-to-VC mappings for non-UIO traffic.

Initialization and Software Control

To maintain backward compatibility with existing PCIe software, when a Link is brought up, VC0 is automatically initialized in each VC and MFVC capabilities, while VC0 within the SVC capability remains disabled. This allows software that is not aware of SVC to continue operating using the traditional VC architecture without any changes.

Although a Port may implement both SVC and VC/MFVC capabilities, the two mechanisms are mutually exclusive from an operational perspective. Hardware guarantees that SVC and VC/MFVC capabilities cannot be enabled simultaneously on the same Port.

For Ports that support both architectures, it is the responsibility of SVC-aware software to determine which mechanism should be used. Before operating with the legacy VC/MFVC architecture, software clears the Use VC/MFVC bit in the SVC Port Status register. This action immediately disables all VC resources associated with the VC/MFVC capabilities and enables VC0 in the SVC capability. Once cleared, the Use VC/MFVC bit remains in that state until the next Conventional Reset, ensuring a consistent operating model and reducing both hardware and software complexity.

In ports that implement only the SVC capability, the Use VC/MFVC bit is hardwired to 0b. As a result, VC0 within the SVC capability is automatically initialized during Link training, allowing the Port to operate directly using the SVC.

The number of available SVC Virtual Channels (besides VC0) is reported through the SVC Extended VC Count field located in the SVC Port VC Capability Register 1. Software uses this field to determine the number of extended SVC Resource registers.

Streamlined Virtual Channel Extended Capability Structure

The Streamlined Virtual Channel (SVC) Extended Capability is an optional PCIe Extended Capability structure that must be implemented by Ports supporting features that depend on it, including Unordered I/O (UIO).

The location of the SVC Extended Capability within a PCIe component depends on the Port type:

  • For an Upstream Port (USP), the SVC Extended Capability may be implemented only in Function 0. When present, that single instance applies to all Functions associated with the Port.
  • For a Downstream Port (DSP), the capability may be implemented directly within the Port.
  • The capability may also be implemented within a RCRB.

Additional implementation requirements apply to switches. If an SVC Extended Capability is implemented in a Switch Upstream Port containing one or more Switch USP Functions, the capability must also be implemented in all associated Switch Downstream Port Functions. This ensures consistent SVC behavior throughout the switch hierarchy.

For Root Complexes, implementation is flexible. A system may choose to implement the SVC Extended Capability on some Root Ports while omitting it from others, depending on the requirements of the platform.

Enabling UIO Traffic in SVC

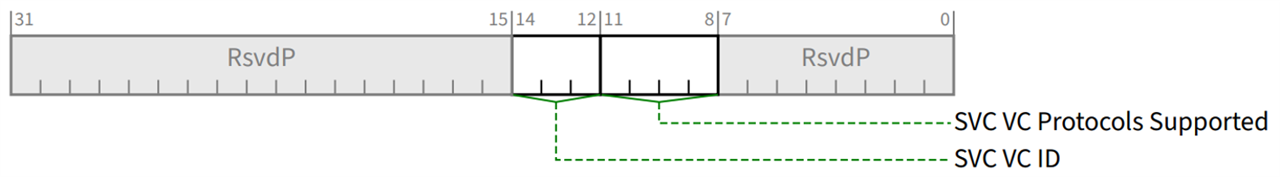

Not all Virtual Channels (VCs) support Unordered I/O (UIO) traffic. The supported protocols for each VC can be determined by examining the SVC VC Protocols Supported field (bits [11:8]) of the SVC Resource Capability Register. A value of 0010b or 0011b indicates that the VC is capable of carrying UIO traffic.

SVC Resource Capability Register

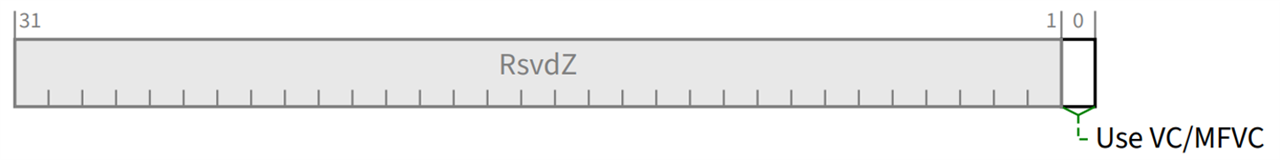

Before enabling UIO, the legacy VC/MFVC mechanism must be disabled. This is accomplished by clearing the Use VC/MFVC bit (bit 0) in the SVC Port Status Register (Offset 10h). Since this field is defined as Write-to-Clear, writing a value of 1 clears the bit and transitions the Port to SVC-based operation.

SVC Port Status Register (Offset 10h)

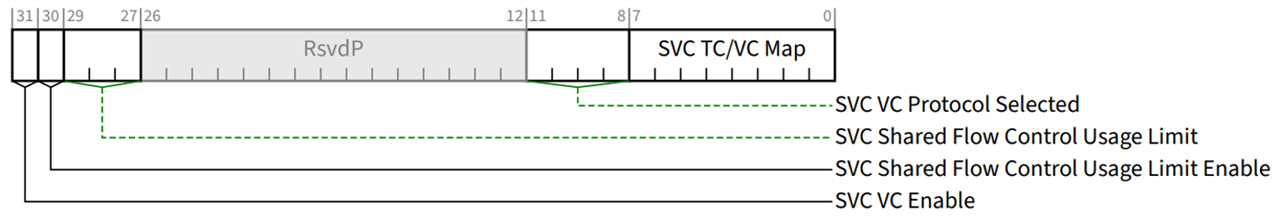

Once SVC is active, UIO can be enabled on a Virtual Channel by programming the SVC VC Protocol Selected field (bits [11:8]) in the SVC Resource Control Register to 0010b and setting the SVC VC Enable bit in the same register. This configures the selected VC to carry UIO traffic.

Traffic Classes associated with the Virtual Channel are configured through the SVC TC/VC Map field (bits [7:0]) of the SVC Resource Control Register. This field defines which Traffic Classes are mapped to the VC, allowing UIO and non-UIO traffic to be routed according to the desired fabric policy.

SVC Resource Control Register

This configuration process enables software to establish the Virtual Channels that will carry UIO traffic while maintaining explicit control over TC-to-VC mappings across the PCIe fabric.

Verification Challenges and Solutions

While the Streamlined Virtual Channel Extended Capability simplifies the deployment and management of Traffic Class to Virtual Channel mappings within a PCIe fabric, it introduces several new verification considerations. Verification environments must ensure that SVC initialization and enablement behavior strictly follows the specification requirements, particularly in implementations that support both SVC and traditional VC/MFVC capabilities. Since these mechanisms are mutually exclusive, validating the transitions between operational modes and guaranteeing that conflicting configurations cannot exist simultaneously becomes an important aspect of compliance testing.

The SVC capability introduces new configuration registers, status fields, and control mechanisms that software relies on to determine available Virtual Channel resources and control fabric behavior. Any mismatch between the implemented hardware behavior and software expectations can lead to interoperability issues that may not be immediately visible during basic functional testing.

Additional challenges arise when validating UIO support. Because UIO is exclusively associated with the SVC architecture and is limited to Flit Mode operation, verification environments must ensure that UIO traffic is correctly associated with the required Virtual Channels and that unsupported configurations are properly handled. At the same time, SVC behavior in Non-Flit Mode must also be validated, as the capability remains available for TC-to-VC mapping even when UIO functionality is not present.

The importance of SVC becomes more apparent in multi-host and fabric-based deployments. In these environments, traffic originating from multiple hosts may traverse shared Links and switching resources, making consistent TC-to-VC assignments critical for predictable system behavior. Verification must therefore extend beyond individual Port functionality and evaluate end-to-end fabric operation, ensuring that traffic classifications, Virtual Channel assignments, and routing behaviors remain consistent throughout the fabric.
