The Problem Nobody Talks About

Picture a world where 1,024 AI accelerator chips work shoulder-to-shoulder inside a single compute node - each one craving data as fast as it can process it, each one firing requests at its neighbours dozens of times every nanosecond. This is not science fiction. It is the design goal of next-generation AI and HPC infrastructure. And the moment you put that many chips together, you run headlong into one of the oldest unsolved problems in computing: "How does a sender know the receiver is ready? And what happens when it isn't?"

Get that wrong, and you get buffer overflows, data corruption, or a deadlocked fabric. Get it right, and you get one of the cleanest, highest-throughput interconnects in the industry. UALink (Ultra Accelerator Link) gets it right through a mechanism called credit-based flow control - baked into the very heart of its Protocol Level Interface (UPLI). This blog is the story of how that mechanism works, why it matters architecturally, and critically - what it actually takes to verify that it is correct in silicon.

What Is Credit-Based Flow Control? (The Human Version)

Before we dive into wires and signals, let's make this real.

Imagine a busy restaurant. Waiters (Senders) take orders from customers and pass them to the kitchen (Receiver). But the kitchen has a finite number of plates—it can only hold eight dishes at a time. So they give eight "tickets" to the waiters at the start of the shift. Each time a waiter passes an order, they hand back a ticket. When all 8 tickets are gone, no more orders go in, no matter how hungry the customers are. Once the kitchen finishes a dish and sends it out, they return the ticket. The flow is perfectly self-regulating. The kitchen never drowns, the customers never starve. That is credit-based flow control.

In UALink's UPLI, the "kitchen" is the receiver (completer or originator, depending on direction). The "tickets" are credits. The "waiter" is the sender. And the dishes being prepared are beats of protocol data - requests, write data, read responses, write acknowledgements.

The one core rule is that there are no exceptions, ever. The sender must hold at least one credit before transmitting any beat. If it has zero credits, it waits. This single rule guarantees that the receiver's buffer is never overrun, making UALink a lossless, overflow-proof protocol at the UPLI level.

Four Lanes, Four Kitchens—The UPLI Channel Model

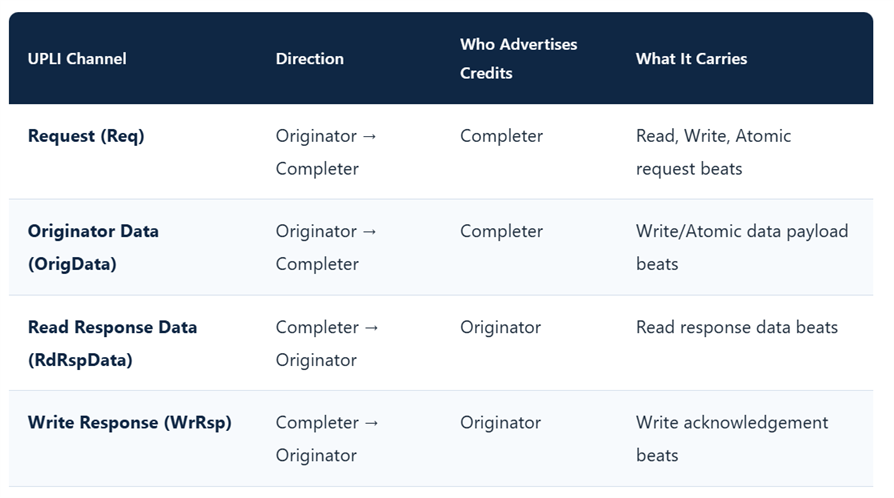

Here is where UALink gets cleverly engineered. There is not one credit pool, there are four independent credit loops, one per UPLI channel. Think of it like a restaurant with four entirely separate kitchens: one for appetizers, one for mains, one for desserts, and one for drinks. If the dessert kitchen is overwhelmed, your steak still arrives on time.

Each channel manages its own credits independently. Backpressure on write responses never stalls read requests. A slow-to-respond completer filling up the RdRspData channel cannot block new requests from flowing in on the Req channel. This isolation is not an accident - it is the architectural backbone that prevents head-of-line blocking in complex multi-accelerator workloads.

Two Flavours of Credits—Reserved Seats vs Open Floor Plan

UALink 2.0 adds a second dimension of sophistication: within each channel, credits come in two distinct types. And the analogy here is a concert venue.

Imagine a concert with 500 seats. 200 are reserved (you get a numbered seat, guaranteed). The other 300 are general admission, first come, first served, shared by everyone. Premium VIPs (Virtual Channels with strict guarantees) use their reserved seats. Everyone else uses the shared floor. The total capacity is the same, but the quality-of-service guarantee is different.

VC credits are pinned to one Virtual Channel (0–3), like a reserved seat, only that VC's traffic can use it, so a high-priority path never gets starved by a bursty one. Pool credits are shared across all VCs. Like general admission, any beat can grab one wherever demand spikes. A write request's header beat might consume a Pool credit on the Req channel while its data beats use per-VC credits, all at once, all tracked independently.

Why It's Not Optional

A fast originator can outpace a completer in microseconds, and UALink has no retransmit mechanism - so credits are the only thing standing between full line-rate traffic and an overflowed, corrupted link. In UALink, you don't recover from overflow. You architect credit flow so overflow literally cannot happen.

Per-VC credits also stop priority inversion: a bulk weight-loading transfer saturating its own VC can never block a high-priority inference request on another VC. And because a write request beat and its first data beat must land together with no gap, the originator has to hold credits on both the Req and OrigData channels before it sends a single byte.

An originator that grabs a Req credit and only then checks for OrigData credits risks a stall mid-transaction—one of the trickiest implementation details in the UPLI.

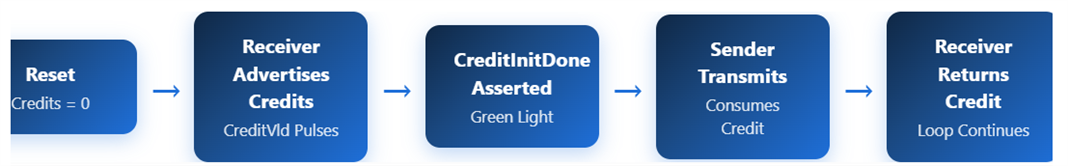

The Credit Lifecycle—From Reset to Steady State

Every time a UPLI interface comes up from reset, the credit mechanism goes through a precise, four-phase lifecycle. Miss any phase, and the protocol breaks before a single byte of data moves.

1. Reset—Zero Credits, Clean Slate

After reset, the sender starts with exactly zero credits on all channels and all VCs. No transmission is allowed. The receiver prepares its buffers and gets ready to advertise initial credit availability. The protocol is in a known, safe starting state.

2 Credit Advertisement—The Receiver Opens the Gates

The receiver begins releasing initial credits by pulsing its CreditVld signals. Each valid pulse carries 1-4 credits (encoded as value+1 on CreditNum signals). The Receiver advertises credits for VC slots, Pool slots, or both - at its own pace, in any order the implementation chooses. The sender accumulates these credits into its counters but does not yet transmit.

3 CreditInitDone—The Green Light

Once the receiver has advertised all initial credits for a channel/port, it asserts CreditInitDone. This signal means: "I have told you everything I have. You are now cleared to transmit." CreditInitDone must remain asserted until the next reset—it is a one-way gate. The sender waits for CreditInitDone to be stable for an implementation-defined number of cycles before it starts transmitting.

4 Steady State—Consume, Return, Repeat

With CreditInitDone asserted, the credit loop enters the continuous steady-state rhythm: the sender consumes one credit per beat it transmits; the receiver processes beats and returns credits by pulsing CreditVld again - replaying the exact VC and Pool type it recorded when the beat originally arrived. The sender replenishes its counter and can transmit again. This loop runs indefinitely until the next reset.

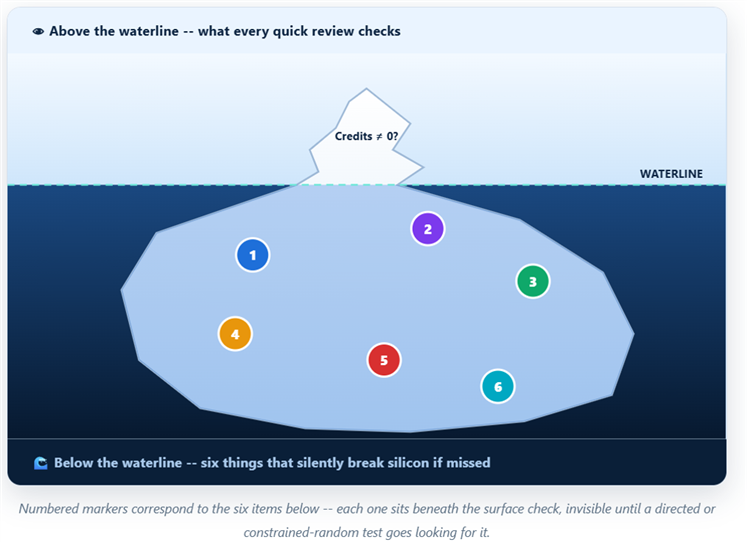

The Verification Iceberg—6 Things That Must All Be Right

UPLI credit verification spans four channels × four ports × four virtual channels × two credit types - all operating concurrently. The visible tip of the iceberg is "make sure credits are not zero before sending." Here is what else matters most.

Credit initialization correctness: The receiver must release exactly the configured number of VC and Pool credits after reset, and CreditInitDone must assert only after the last credit lands.
No transmission without credits: The golden rule: the sender must never send a beat when the corresponding credit count is zero, even under concurrent multi-VC traffic with delayed returns.
Overflow and return fidelity: Returned credits must never exceed the configured buffer depth, and each return must replay the exact VC/Pool type recorded on the original beat. A mismatch corrupts counters silently.
Multi-channel write coordination: Write operations need credits on both Req and OrigData channels simultaneously, with the first data beat contiguous to the request. This is a non-trivial pre-check under congestion.
Credit exhaustion and recovery: Fully exhaust all credits on a channel. The sender must stall cleanly, then resume seamlessly once credits are returned, with no dropped or duplicate beats.
No beat before handshake: CreditInitDone must be asserted on all required channels before the first UPLI beat is ever sent. A premature beat is an uncatchable data loss.

Why Hand-Written Tests Fall Short

These dimensions interact with each other across every channel, port, and VC - a state space that grows combinatorially. Directed tests cover the happy path. Only a systematic, constrained-random approach with exhaustive protocol checking finds the subtle bugs that matter in silicon.

The Verification Hit List—5 Scenarios Every Plan Must Include

A rigorous verification plan for UPLI credit flow must, at minimum, exercise these scenarios -- each targets a failure mode that has caused real, late-stage silicon bugs.

Credit Init - VC only/Pool only/mixed: Verify each mode initializes and tracks credits independently, with zero cross-contamination between VC and Pool counters.
Write multi-channel pre-check: Originator must hold credits on both Req and OrigData channels simultaneously before issuing a Write, with contiguous assertion and no gap.
Credit exhaustion and graceful recovery: Exhaust all credits on a channel, verify a clean stall, then confirm traffic resumes with bit-exact continuity once credits return.
Multi-VC independent tracking: Run concurrent traffic on VC 0–3 with different credit depths; VC 0 exhausting its credits must not stall VC 1–3.
End-to-end full lifecycle: Reset → full credit init → Read, write, and atomic transactions → verify consumption and return on all four channels → final credit counts match initial state exactly.

How Modern Verification IP Tackles This

The state space described above is too large for hand-crafted test benches to cover reliably. Purpose-built Verification IP for UALink addresses this in four concrete ways:

Built-in protocol checkers: Assertions continuously monitor every credit rule from the spec—overflow, exhaustion violations, return fidelity, and CreditInitDone timing—running automatically without test-specific scaffolding.
Full configurability: Credit modes, buffer depths, return delays, and release counts are exposed as test parameters, enabling exhaustive constrained-random exploration of the DUT's operating envelope.
Multi-topology support: Validated in protocol-only back-to-back topologies, protocol + transaction layer stacks, and full-stack environments, so credit correctness holds regardless of integration architecture.
Real-time credit observability: Live counters showing available credits per channel, per port, per VC, and per credit type, the difference between a two-hour debug session and a two-minute one.

Conclusion - The Invisible Foundation

Credit-based flow control in UALink UPLI is one of those mechanisms you notice only when it breaks. When it is working correctly, data flows at line rate, buffers never overflow, write transactions interleave seamlessly with reads, and 1,024 accelerators cooperate without a hiccup. The mechanism is invisible, and that is the point.

But building that invisibility takes deliberate engineering: four independent credit loops, two credit type hierarchies, per-port isolation, multi-channel coordination for write operations, and a precisely ordered initialisation sequence. Every one of these dimensions is a potential failure point in silicon.

Verification is not the final step in building UALink-compliant hardware. It is the ongoing engineering discipline that proves the invisible machinery is actually working. The scenarios described here are not a compliance checkbox. They are the minimum investment required to ship silicon you can trust.

As UALink adoption scales across the AI accelerator industry - and it will - the teams who invested in deep credit flow verification will be the ones whose chips work reliably in production. The ones who skipped it will find their bugs in the worst possible place: a customer's data centre, at 3am, at scale.

Get the credits right. Everything else follows.
