In today’s fast-paced PCB design environment, managing design changes efficiently is critical. Imagine working on a complex schematic with many collaborators, generating multiple versions. How do you ensure that every change is tracked, and older versions can be restored without any hassles? Here is where Version Control in Allegro® X PCB System Capture becomes a game-changer.

Version control with schematics is not just a convenience; it’s a necessity for maintaining integrity, enabling collaboration, and reducing costly errors. In this blog post, we’ll explore how Allegro X PCB System Capture integrates version control into its intuitive design ecosystem.

Why Version Control Matters

PCB design projects often involve iterative changes, such as component updates, connectivity modifications, and schematic refinements. Without version control:

• Tracking changes becomes cumbersome.
• Rolling back to a previous design state is nearly impossible.
• Collaboration risks overwriting critical updates.

Version control solves these challenges by:

• Capturing versioned snapshots of your design throughout the process.
• Allowing rollback to any previous version.
• Enabling check-in with comments that explain the purpose of each update.

Version Control in Allegro X PCB System Capture

The Version Control feature in Allegro X PCB System Capture is designed for simplicity and robustness. Each design version is stored with a clear revision history (major and minor), including timestamps, user information, and comments. Here’s an overview of the versioning tasks you can do:

Accessing Version Control

Navigate to File – Version Control to open the Version Control window. From here, you can:

• View all saved versions.

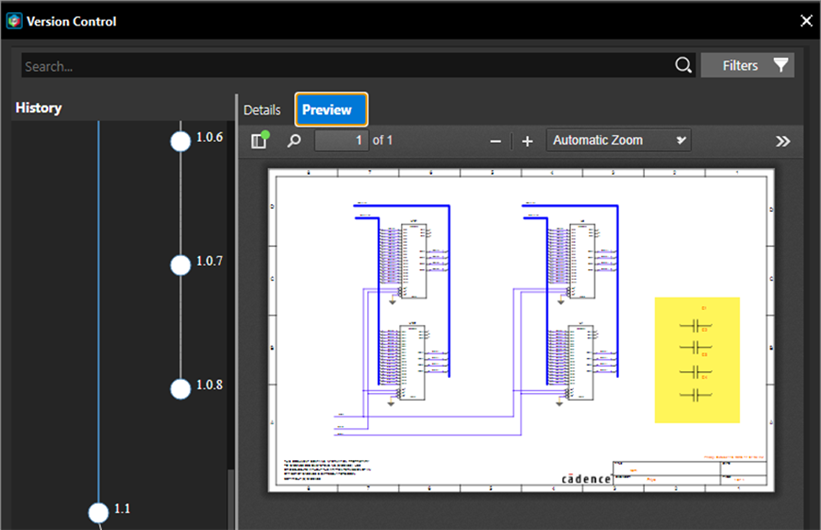

• Download and preview the PDF of any version.
• Open or roll back to a previous version with a single click.

Capturing Design Snapshots

Every check-in creates a snapshot of that version of your design. This ensures:

• A historical record of changes is always available.
• You can easily switch to any of the stable versions when needed.

Check-In and Comments

A check‑in (commit) operation captures a complete, versioned snapshot of the design in the version control system, ensuring that each meaningful milestone is formally preserved. Encouraging the addition of clear, descriptive comments strengthens team collaboration and provides valuable historical context for future design decisions. Once committed, the design is securely stored on the pulse server (or the configured version control system), giving teams the ability to browse detailed version histories, compare changes over time, and roll back to earlier states whenever needed to maintain design integrity and workflow continuity.

When committing a design:

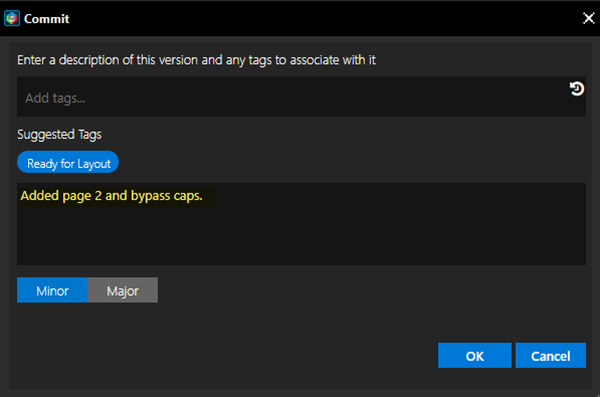

• Use File – Commit to check in the updated project.
• Add comments to describe the changes.

This is critical for team collaboration and audits, and even helps designers recall why certain changes were made in the past.

Rollback Functionality

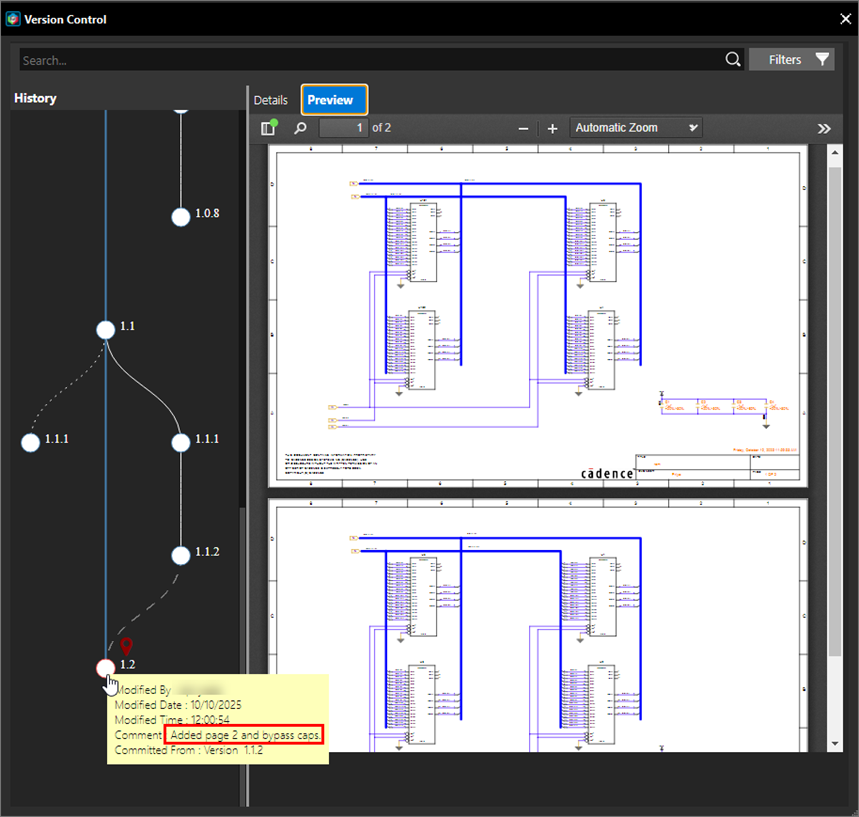

Need to revert to a previous design state? Just select the required version and choose Open Version. This feature minimizes downtime caused by incorrect changes and prevents errors from propagating to the layout.

Best Practices for Version Control

To get the best from version control in Allegro X PCB System Capture:

• Check in frequently: After major edits or before starting new tasks.
• Add meaningful comments: Helps collaborators understand the context of changes.
• Combine with Design Rule Checks (DRC): Ensure each version meets quality standards before committing.

Version control in Allegro X PCB System Capture empowers designers to manage schematic complexity with confidence. By integrating version control into your workflow, you gain complete visibility into design evolution, improve collaboration, and accelerate time-to-market.
