How to use Vertical/horizontal spacers in skill gui

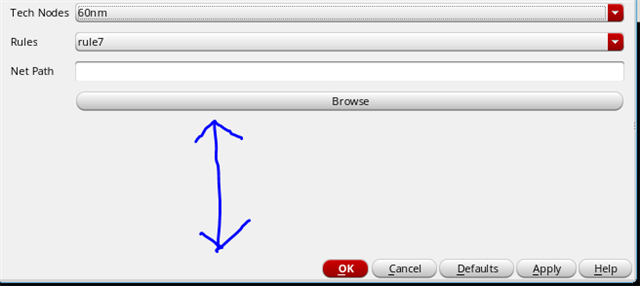

If you want fields to resize, and spacing to adjust as you alter the visibility, you really need to use the newer "layout" forms rather than coordinate-based forms (layout forms were newly added in IC617). As usual, your code doesn't run properly (the hiDisplayForm is outside of the let, so the rulesTable is no longer in scope, and the callback is trying to access a field on the form that doesn't exist any more) - it also doesn't reflect the picture you shared.

Nevertheless, I've given you an example here of using a simple layout form. I'm using hiCreateFormLayout as this is simple - it doesn't however give you the ability to have multiple columns - if you wanted that, you'd need to use hiCreateGridLayout (search on these forums for an example using that) - that would complicate matters as you really need to create separate labels rather than using the built-in prompts in the fields otherwise the fields don't line up nicely.

A key change I also had to make was to move the rulesTable into the callback function; this is because the form layouts are non-blocking, so the callback would not be able to see a local variable within the Switches function as it is no longer in scope at the time the callback is invoked.

Hope this helps - I invented some more conditions to show fields becoming visible/invisible to show the principles (I also put the fields into a let at the top so that you weren't creating global variables all over the place).

Andrew

procedure(Switches()
  let((techNodes rules net button_net_data abc_string xyz_string
      frm2 formLayout)

    net= hiCreateStringField(
      ?name 'net
      ?prompt "Net Path"
      ?value ""
    )

    button_net_data = hiCreateButton(
      ?name 'button_net_data
      ?buttonText "Browse"
      ?callback "ddsFileBrowseCB(hiGetCurrentForm() 'net \"\" 'fileOnly)"
    )

    techNodes = (hiCreateCyclicField
      ?name 'techNodes
      ?prompt "Tech Nodes"
      ?choices (list "10nm" "40nm" "50nm" "60nm" "80nm" "90nm")
      ?callback "MytechAndHideFields(hiGetCurrentForm())"
    )

    rules = (hiCreateCyclicField
      ?name 'rules
      ?prompt "Rules"
      ?choices (list "rule1" "rule4")
    )

    abc_string = hiCreateStringField(
      ?name 'xyz_string
      ?prompt "Clamp"
      ?invisible nil
      ?value ""
    )

    xyz_string = hiCreateStringField(
      ?name 'abc_string
      ?prompt "Cell"
      ?invisible nil
      ?value ""
    )

    frm2 = hiCreateFrameField(
      ?name 'frm2
      ?invisible t
      ?labelText "HV"
    )


    ; rather than using a coordinate approach, use a "layout" form.
    ; For simplicity, using a form layout (which takes care of aligning
    ; the prompts). Otherwise you might use hiCreateGridLayout but then
    ; you need to use fields without prompts and separate labels in different
    ; columns - gives more flexibility (but more complex)

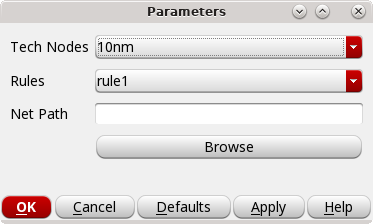

    formLayout=hiCreateFormLayout(
      'formLayout
      ?items list(
        techNodes rules net button_net_data abc_string xyz_string
      )
    )
    /*
    AppForm = hiCreateAppForm(
      ?name 'AppForm
      ?formTitle "Parameters"
      ?fields list( list(techNodes 10:1 300:10 80 1)
      list(rules 10:40 380:60 60)
      list(net 10:180 300:10 100 1)
      list(button_net_data 315:183 60:25 1 1)
      list(abc_string 10:560 300:10 100 1)
      list(xyz_string 10:600 300:10 100 1)
      list(frm2 5:550 500:140 10)
    )
    )
    */
    hiCreateLayoutForm(
      'AppForm
      "Parameters"
      formLayout
    )
    ; have to instantiate form first before changing invisibility
    ; there is a bug where ?invisible t on the fields leaves the
    ; prompt visible
    hiInstantiateForm(AppForm)
    MytechAndHideFields(AppForm)

  hiDisplayForm(AppForm)
  )
)

procedure(MytechAndHideFields(form)
  let((rulesTbl)
    ; moved the rules table here as cannot use dynamic scoping
    ; with layout forms as the forms are non-blocking by design
    rulesTbl = (makeTable 'rulesTbl nil)
    rulesTbl["60nm"] = rulesTbl["50nm"] =rulesTbl["90nm"] = (list "rule7" "rule2" "rule9")
    rulesTbl["10nm"] = rulesTbl["40nm"] =rulesTbl["80nm"] = (list "rule1" "rule4")

    form->rules->choices = rulesTbl[form->techNodes->value]
    case(form->techNodes->value
      ("10nm"
        form->abc_string->invisible=t
        form->xyz_string->invisible=t
      )
      ("60nm"
        form->abc_string->invisible=t
        form->xyz_string->invisible=t
      )
      ("50nm"
        form->abc_string->invisible=nil
        form->xyz_string->invisible=t
      )
      ("80nm"
        form->abc_string->invisible=t
        form->xyz_string->invisible=nil
      )
      (t
        form->abc_string->invisible=nil
        form->xyz_string->invisible=nil
      )
    )
  )
)

Hi Andrew,

Can you please provide any example in which includes how to create (group box ,browse to cell view in library manger) using hiCreateGridLayout??

Regards,

srv

I have no idea what you mean by "(group box ,browse to cell view in library manger)".

Andrew

Perhaps this post is what you mean?

Perhaps this post is what you mean?
