How to Add a Spacer Between Two Stacked Dies in Allegro X APD?

In many stacked-die package designs, a spacer is introduced between dies to create a defined separation within the die stack. This is commonly seen when stacking dies of different sizes, meeting assembly stack-up requirements, or providing clearance for package structures between the dies.

Steps

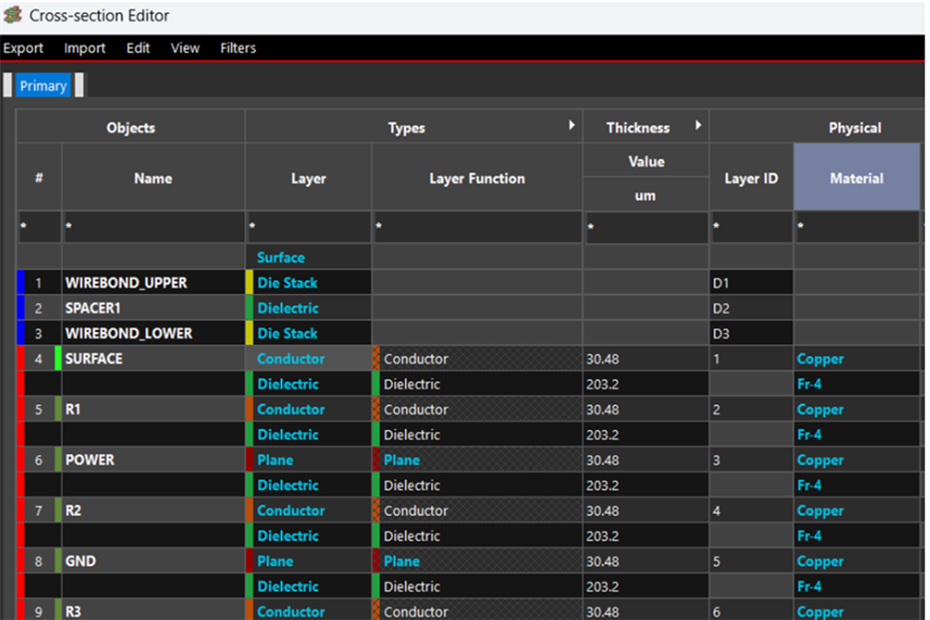

Open Setup > Cross-section and add a new layer below the required die layer.
Set the new layer's Function to Dielectric and assign a unique Layer ID (for example, D2).

Verify that the layer is visible in the Visibility pane.

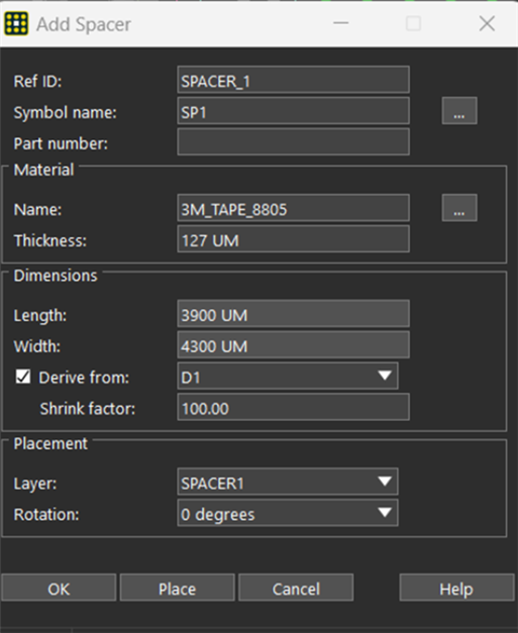

Select Add > Spacer and define the spacer properties, including material, thickness, and dimensions.
Specify the spacer size either manually or using the Shrink Factor option based on the die dimensions.

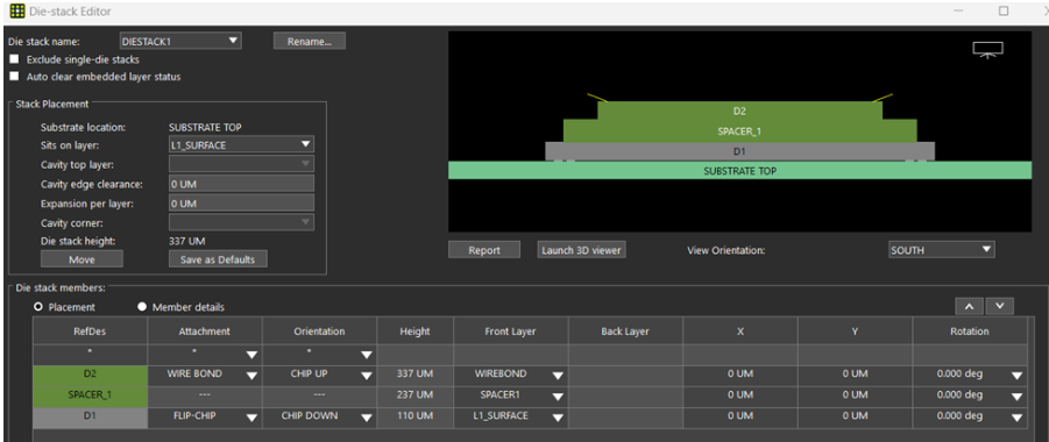

Place the spacer in the design and verify its position in Edit > Die Stack, making any alignment adjustments as needed.

Have you encountered a package design where a spacer was required to meet die-stack, assembly, or clearance requirements? Share your use case in the comments.
