The STEP file is not showing the correct component z height

Gowtham P

While exporting STEP files, the component Z-heights may not always match the package heights defined at the board level. This can occur when PACKAGE_HEIGHT_MAX is assigned to the place bound shape while the symbol definition continues to use its default package height.

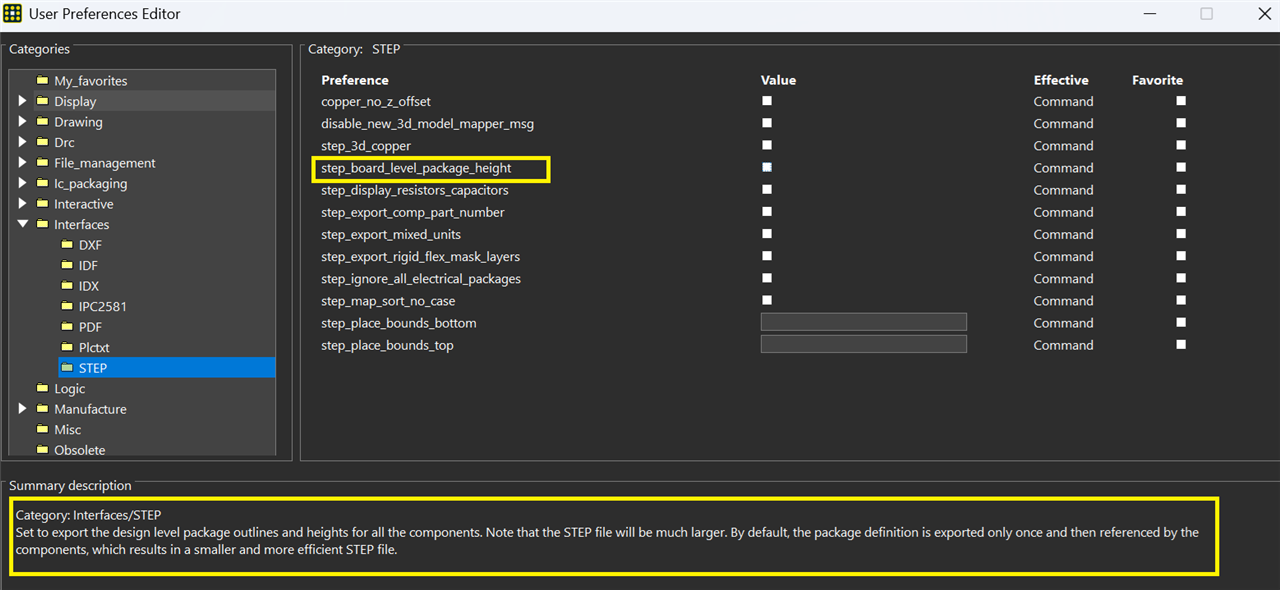

The step_board_level_package_height preference can be enabled under Setup > User Preferences > Interfaces > STEP to export the board-level place bound and height information to the STEP file. Note that enabling this option can increase the STEP file size.

Have you encountered component height differences in your STEP exports? What approach do you use to maintain the correct 3D component heights?
