ORCAD CAPTURE 17.2 Schematic Size is too large for what I have placed and the options I selected

Hi, I have put together a three page schematic and the symbols are tiny when placed on the schematic sheet. I used basic symbols straight out of the transistor library and logic library. When I zoom out enough to see the whole sheet and title block, the components are so small that I cannot make them out.

I have the sheet sizes all set for size A, but that doesn't make a difference.

The title block appears to be the correct size for the sheet size I am using. I tried closing and then reopemning the project, hoping that would set everything correctly, but nothing changed.

0 Araugel over 5 years ago

Hi Nikom,

Try millimeters instead of inches in schematic page properties and select A2 or A3 or A1 as per your need
Cancel
Vote Up 0 Vote Down

Sign in to reply

Verify Answer

Cancel
0 Nikom74 over 5 years ago in reply to Araugel

Hi, thanks for the suggestion. I tried that and it did not correct the problem. One clue I did see though was the Pin to Pin spacing in the Schematic Page properties is off by an order of magnitude.
Cancel
Vote Up 0 Vote Down

Sign in to reply

Verify Answer

Cancel
0 Nikom74 over 5 years ago in reply to Nikom74

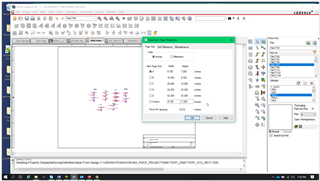

I attached a screenshot
Cancel
Vote Up 0 Vote Down

Sign in to reply

Verify Answer

Cancel
0 Araugel over 5 years ago in reply to Nikom74

can you share the screenshots of schematic page with , Schematic page properties>millimeters>A3 selected
Cancel
Vote Up 0 Vote Down

Sign in to reply

Verify Answer

Cancel
0 Nikom74 over 5 years ago in reply to Araugel

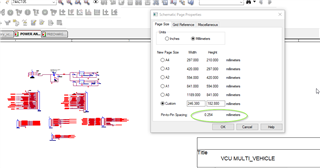

Here you go, thanks
