Equivalent AXL function for Create Artwork

kumarsanj
kumarsanj over 8 years ago

Hi,

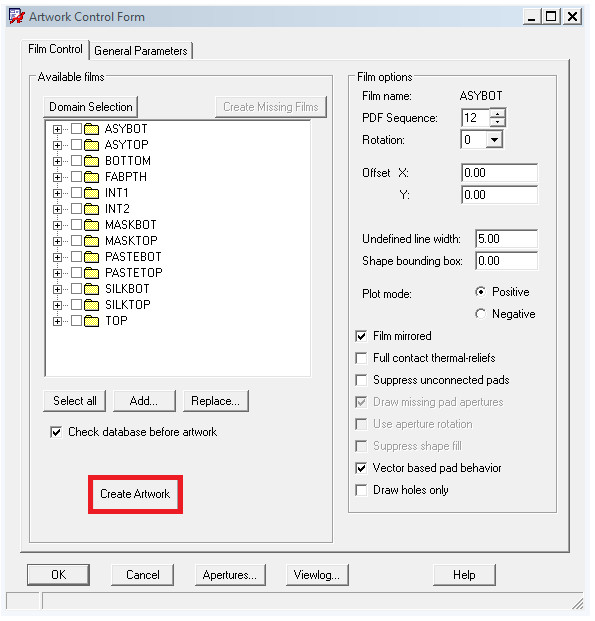

Could someone please let me know if there is an AXL function available for creating the Artwork? shown below.

Thank you.

Regards,

Sanjeev

  • Sign in to reply
  • Cancel
  • seyerfred
    seyerfred over 8 years ago
    try axlfcreate
    • Cancel
    • Vote Up 0 Vote Down
    • Sign in to reply
    • Cancel
  • kumarsanj
    kumarsanj over 8 years ago
    As per my understanding this function creates only the films. Not the gerber files. Pls correct me if I am wrong
    • Cancel
    • Vote Up 0 Vote Down
    • Sign in to reply
    • Cancel
  • seyerfred
    seyerfred over 8 years ago
    okay, try this one using axlRunBatchDBProgram
    example:
    a = sprintf(nil "artwork -f %s %s" strcat("yourfilm" ".art") strcat(getWorkingDir() "/board.brd" ))
    axlRunBatchDBProgram("cmd" a ?silent t)
    • Cancel
    • Vote Up 0 Vote Down
    • Sign in to reply
    • Cancel
  • kumarsanj
    kumarsanj over 8 years ago
    Thank you.
    Below works fine for me
    axlRunBatchDBProgram("artwork" strcat("artwork -f TOP " axlCurrentDesign(), ".brd"), ?noUnload t ?logfile "photoplot.log", ?warnProgram t)
    • Cancel
    • Vote Up 0 Vote Down
    • Sign in to reply
    • Cancel
