error SPMHDB-207

myil17
myil17 over 3 years ago

Hi everyone,

why do i get following error? and how to avoid it?
(SPMHDB-207): Hatch width cannot be greater than shape outline.

Regards

  • Sign in to reply
  • Cancel
  • Tyler
    0 Tyler over 3 years ago

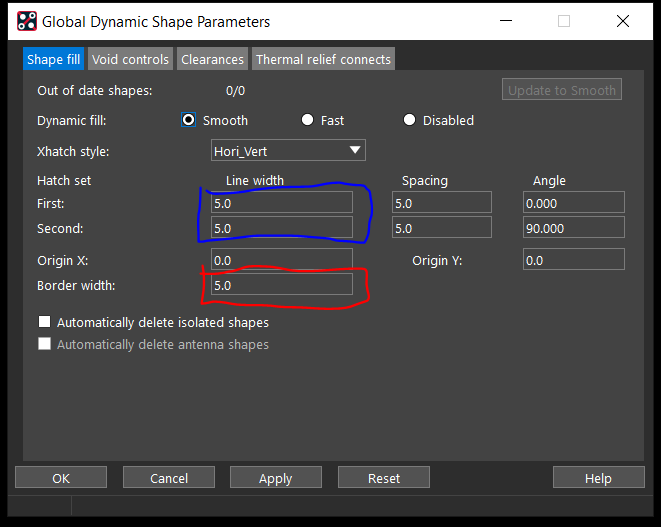

    You cannot define a cross-hatched shape where the hatching patterns' line widths are wider than the border outline's width for the shape. Otherwise, the pattern lines would extend beyond the boundary itself. Go to shape -> global dynamic params and look under the "shape fill" tab for the border width and first/second hatch line widths. The border must be >= the hatch line width.
