Allegro – Tip of the Week: Looking for an option to cut clines at some areas of the route path?

PCBTech
PCBTech over 3 years ago

You can leverage two commands located under the Manufacture menu to make cuts in your route path.

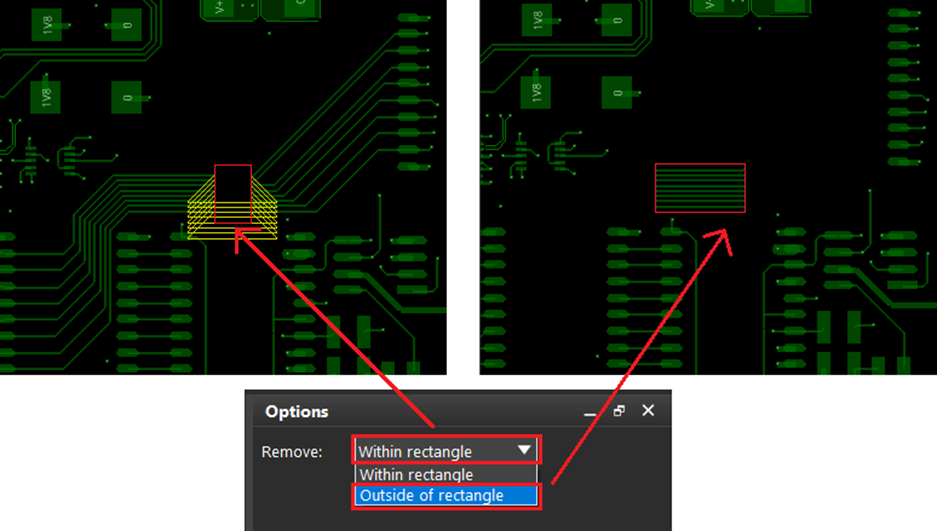

1) Manufacture > Drafting > Delete by Rectangle

  • Select the routes you wish to cut.
  • Draw the cut rectangle in the area where you want to cut clines. You can cut clines within or outside of the rectangle by making the appropriate selection in the Options.

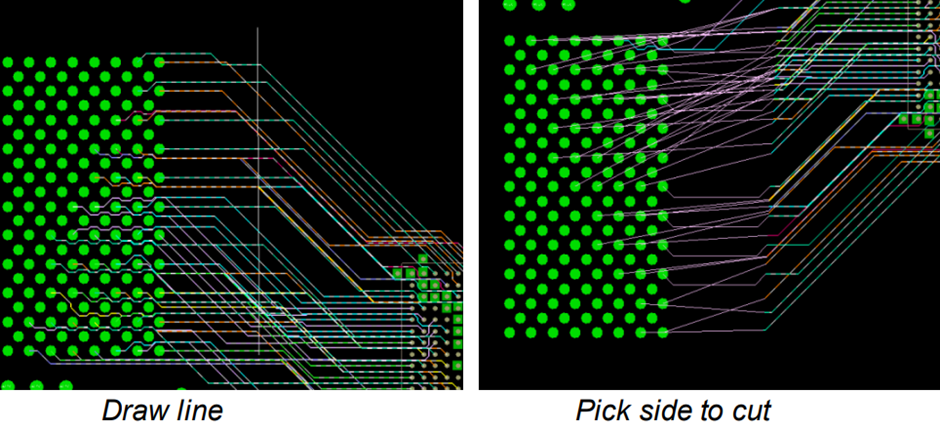

2) Manufacture > Drafting > Delete by Line

  • Select the routes you wish to cut.
  • Draw a line across the routes in the area where the cut is to be made.
  • Select/Click on that side of the line where you want clines to be removed.

 cut clines delete by rectangle
