PCB Editor Allegro Copper Etch is Highlighted

Netsballer92
Netsballer92 over 3 years ago

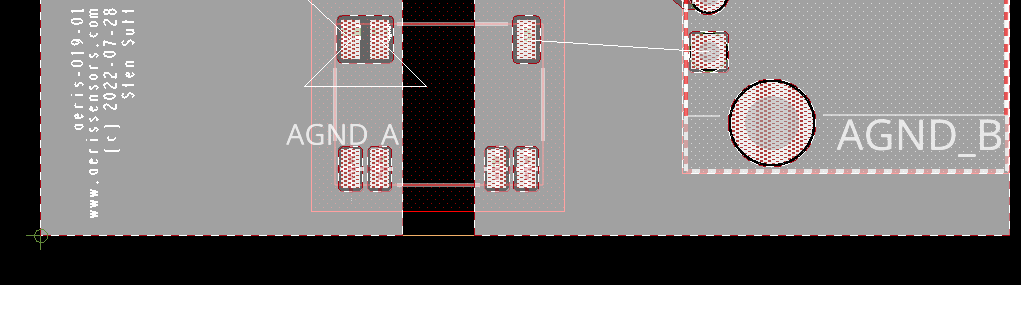

I am not sure why all the layers have copper etch highlighted and also some pins.

  • Sign in to reply
  • Cancel
  • steve
    steve over 3 years ago

    Probably because they have been selected / highlighted. Try Display - Dehighlight then in the Options pane on the right hand side click on All, if they don't change try unclicking "retain objects custome color" and see if that helps.

    • Cancel
    • Vote Up 0 Vote Down
    • Sign in to reply
    • Cancel
  • Daniel
    Daniel over 3 years ago

    Way 1: Try to select it and pick anywhere.

    Way 2: write to in alegro.inilit cove below,and then cmd: "at" to de-hilight all by skill

    axlCmdRegister( "at" `dehl_all ?cmdType "interactive")
    procedure( dehl_all()
    axlDehighlightObject('all t)
    axlVisibleUpdate(t)
    );end

    • Cancel
    • Vote Up 0 Vote Down
    • Sign in to reply
    • Cancel
