Converting Angled Routes to Curved Ones Made Easy

Method 1: Auto Interactive Convert Corner (AICC)

This method allows you to convert individual routes to curved ones with precision. To do this:

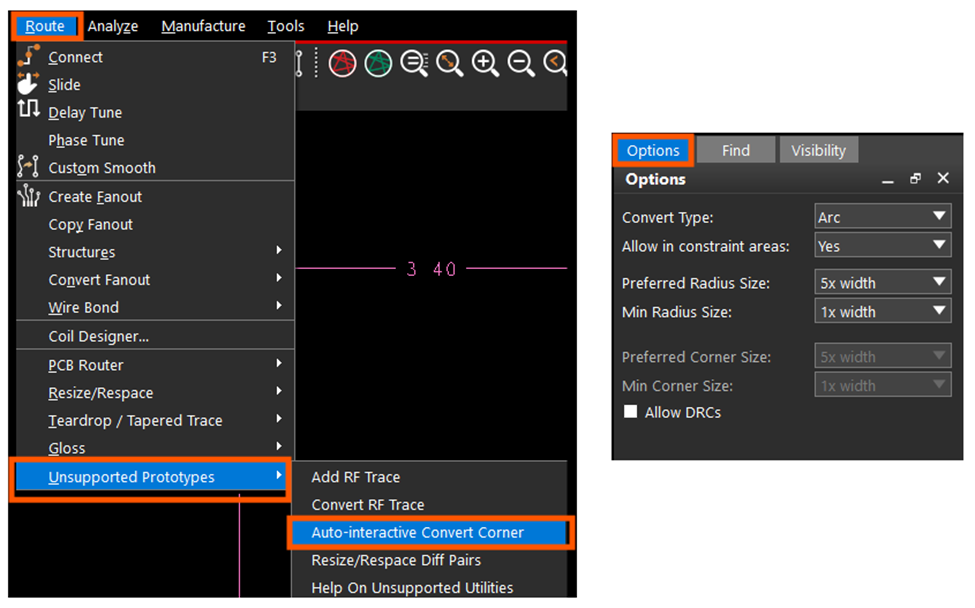

1. Go to Route > Unsupported prototype > Auto Interactive convert corner.
2. In the Options tab, set Convert type to Arc and Allow in cns area to Yes. Adjust other parameters as needed.
3. Select the trace/route you want to convert and set the Preferred Radius and Minimum Radius to achieve the desired results.

Method 2: Glossing Feature

This method offers a more comprehensive approach, allowing you to convert entire boards or selected nets to curved routing.

1. Go to Route > Gloss > Parameters and open the Glossing Controller dialog box.
2. Select Convert corner to arc and set your Minimum and Maximum Radius in the Convert Corner to Arc window.

3. Click the Gloss button to run the command and voilà - your angled routes are now curved!

Try these methods and take your designs to the next level. Happy designing!
