Find the GND connected to the pin

YW202505149337

I have a question regarding TCL in OrCAD Capture.

When a pin is connected to a wire, and that wire is connected to GND, I can use DboWire NewGlobalsIter() to get the DboWireGlobalsIter, then use DboWireGlobalsIter NextGlobal() to get the connected DboGlobal (GND).

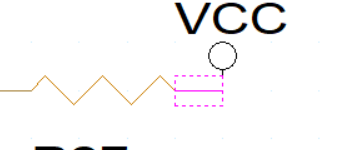

However, if the pin is directly connected to GND, is there a way to use DboPortInst to find the connected DboGlobal?

So far, I haven't found any way to use NewGlobalsIter() on DboPortInst.

Has anyone encountered a similar issue?
