Displaying page number for Multiple Levels hierarchical blocks in Allegro X System Capture

MZ20250602835

Dear ALL,

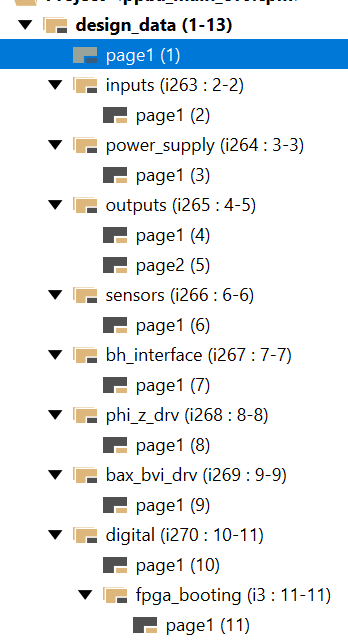

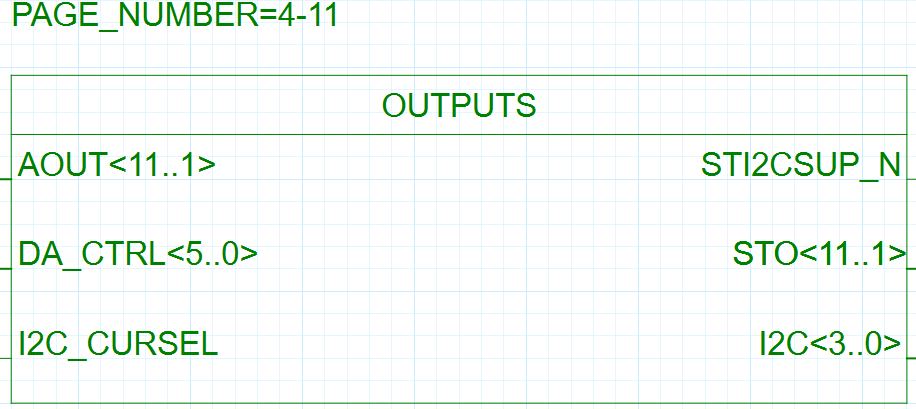

with the script within Displaying start page number for hierarchical blocks in Allegro X System Capture i can get the Page number for the blocks by Simple Hierarchy. But if i have a multiple levels of hierarchy as below i can't get the right number of blocks on page1(1). I got the wrong number for the outputs block and digital block.

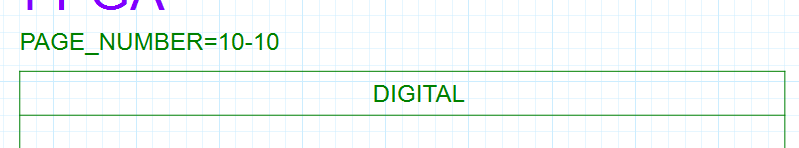

Within Page10  there is no page number for fpga_booting block.

May i ask how could i amend the script to get the right number for the block?

Many thanks

Best Regards

Moyan

Parents
  • MZ20250602835
    0

    In DE HDL there is a system variable  $CREF_TO_LIST available in schema. Is it possible to define a property with the same Funktion in system capture?

    Best Regards

    Moyan

  • CadAP
    0 in reply to MZ20250602835



    Script for simple level of hierarchy. I think you have multi-level of hierarchy.

    Please modify the script accordingly to your requirement.

    Still need any information and help from my side let me know.

  • MZ20250602835
    0 in reply to CadAP

    Dear CadAP,

    Many thanks for your reply, i attached the codes i used for the simple level of hierarchy new 1.zip

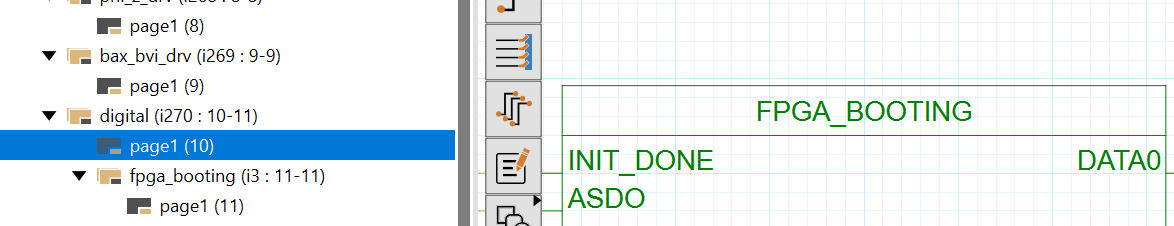

    Could you please advise me which new scripts should i used to get the Page Number of the sub block for example the sub block fpga_booting in block digital?

    Is it necessary to also add codes to check if the design is simple hierarchy or multi hierarchy?

    Many thanks and best Regards

    Moyan

Reply
  • MZ20250602835
    0 in reply to CadAP

    Dear CadAP,

    Many thanks for your reply, i attached the codes i used for the simple level of hierarchy new 1.zip

    Could you please advise me which new scripts should i used to get the Page Number of the sub block for example the sub block fpga_booting in block digital?

    Is it necessary to also add codes to check if the design is simple hierarchy or multi hierarchy?

    Many thanks and best Regards

    Moyan
