How to change the rats' (net connection wire) color in Allegro PCB Editor

Alexandra

Hi,

I'm new with Allegro (16.2), I have previously usedused Orcad layout.

I could not find the menu to change the ratsnet color. Does it exist?

This usefull while routing, to identify the GND, Power or special nets.

Thanks for any suggestion.





  • redwire

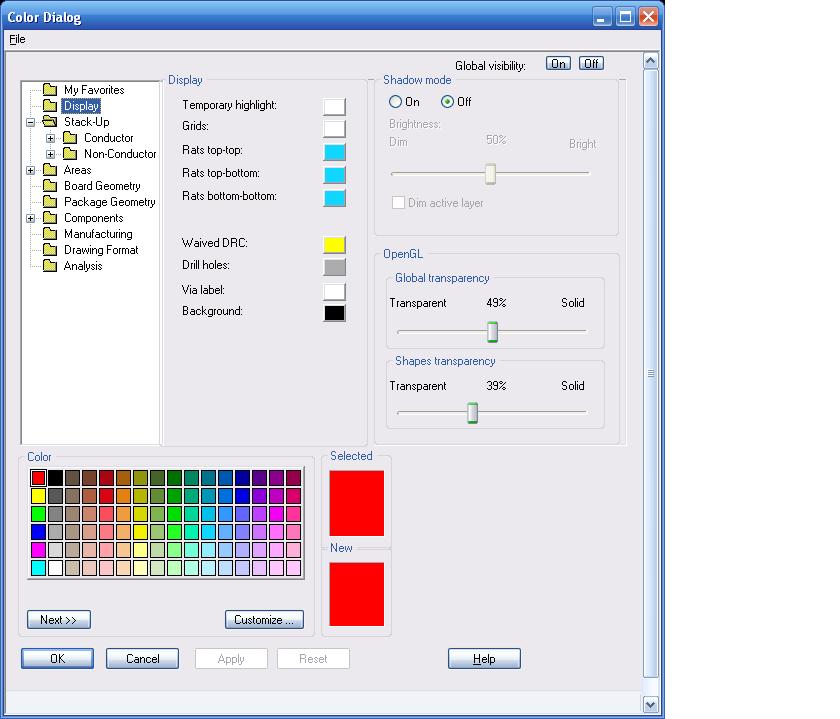

     In the Display->Color menu.  See attached screenshot.  You have 3 kinds of rats to color in 16.2.  Previously just 1 kind.

  • steve

    In 16.2 You can color nets based on net names. Under Display - Color Visibility - Stackup there is a radio button for layers and nets. If you switch to nets you can color items based on net names.

  • Alexandra

    Hi Redwire,

    Thanks a lot. It works.

    Also excellent the second reply. mentioning the radio buttons for NETS. This menu allows to change the color by net name.

  • Alexandra

    Hi Steve,

     Excellent hint, it is exactly what I was looking for.

  • Alexandra

    Steve, now I noticed the 16.2 Allegro version in your email.

    True, the radio buttons are available in the 16.2 version, but not in 16.0.

    Interesting note for designers using 16.0 or earlier, I assume.
