Clearance issue

Superman89

Hi,

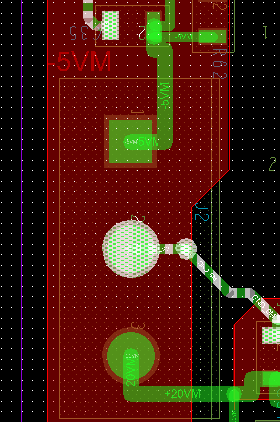

I'm using PCB Editor 16.6 but I'm not getting clearance between the the unconnected net and the copper area. I've tried setting the spacing using constraint manager as well as Global dynamic shape parameters. I was getting spacing between unconnected nets for another PCB for same settings. Could you please advice what additional settings should I check?

Thanks !
