Capacitive touch Slider/ Interlaced patterned rotary sensors.

VRN69
VRN69 over 9 years ago

Dears,

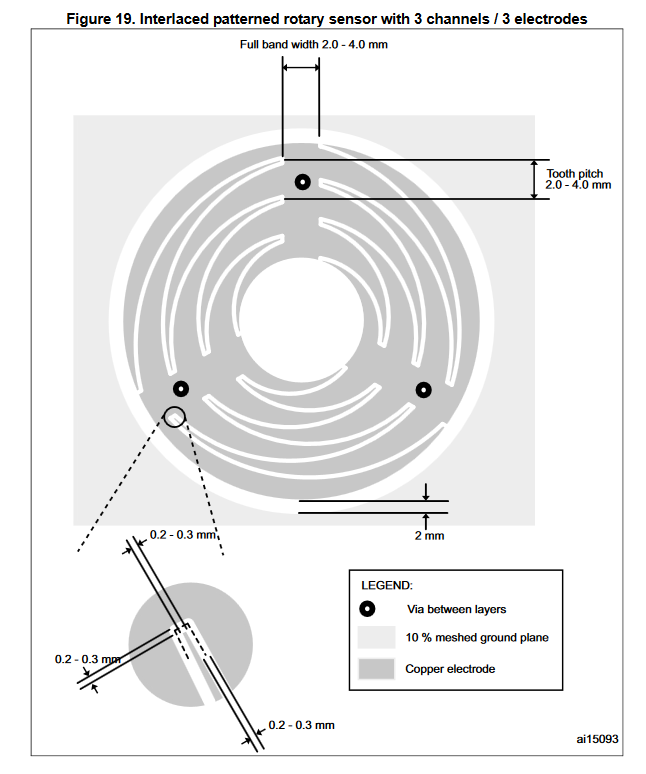

In one of my capsense design I need to implement the rotary slider (five segments). How can i recreate the same in PCB editor? Attached is for 3 segments a reference.

Need your valuable inputs,

http://www.st.com/content/ccc/resource/technical/document/application_note/46/39/d6/92/4a/4d/40/9f/DM00087990.pdf/files/DM00087990.pdf/jcr:content/translations/en.DM00087990. (page 24)

Many Thanks

LN

  • Cancel
  • tmd63
    tmd63 over 9 years ago
    Looking at the design I do not think it will be possible to create this simply in the PCB editor as it uses a complex copper shape.
    The best thing you can try is to design the pattern using a CAD package like AutoCAD, export a DXF, then import this as a custom copper area. This should get the gaps and shape correct for a reliable footprint.
    • Cancel
    • Vote Up 0 Vote Down
    • Cancel
  • Wild
    Wild over 9 years ago

    Unable to open link.  Try postng data sheet another method.

    • Cancel
    • Vote Up 0 Vote Down
    • Cancel
  • tmd63
    tmd63 over 9 years ago
    www.st.com/.../en.DM00087990.pdf
    • Cancel
    • Vote Up 0 Vote Down
    • Cancel
  • tmd63
    tmd63 over 9 years ago

    • Cancel
    • Vote Up 0 Vote Down
    • Cancel
  • Wild
    Wild over 9 years ago

    It looks like 3 exactly the same shapes.

    With this assumption, the way I would approach this issue:

    1 Create a shape in Solidworks (sorry if you don't have) or Auto CAD.

    2. Export  shape as a DXF

    3. Import into Allegro as a shape symbol

    4. Create a pad using the shape from shape symbol save.

    5. Create a new footprint from the pad.

    This is where you can rotate and add a via.

    Good luck.

    • Cancel
    • Vote Up 0 Vote Down
    • Cancel
>
