Large selection area of a schematic symbol!...

Hossein1357

Hi,

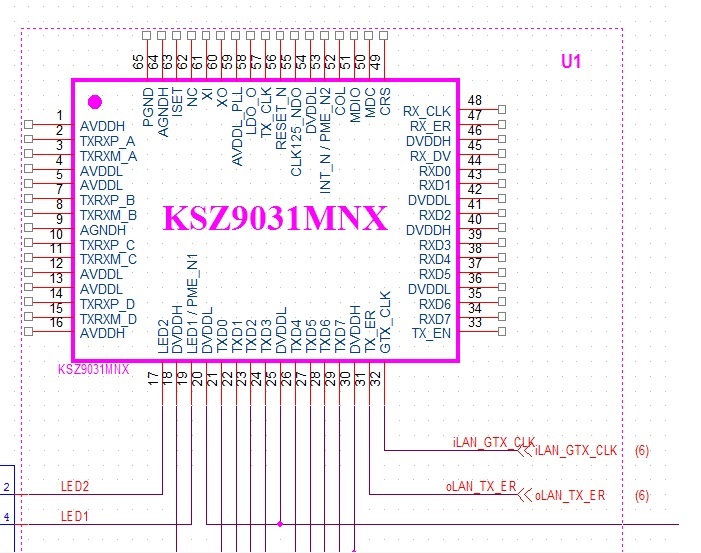

I have created a schematic symbol with right area. However, when I select it in my schematic page a large selection area appears that I don't see why?!.

I am wondering why selection area exceeds schematic symbol?

Thanks,

hossein

  • steve

    This is normally related to properties you have added (like Part Number, Value etc. Open the Symbol and look under Options - Part Properties. Any that are displayed can extend the boundary of the symbol. Move the property text closer to the main body and the boundary should shrink in size.

  • Hossein1357

    Hi,
    Thanks for your answer. I checked and updated everything so many times. However, the problem was still exist. Then I decided to remove symbol and add it again. Soon afterwards, it was OK. It seems to me that "update Cache" can't remove/modify all properties of previously placed symbol.

    Thanks again,
    Hossein
