Select vias GND

IC14 over 5 years ago

Hello,

I'm working with ORCAD PCB 17.2.

I would like to select all the vias on the net GND.

Please could you help me.

Many thanks

masamasa over 5 years ago

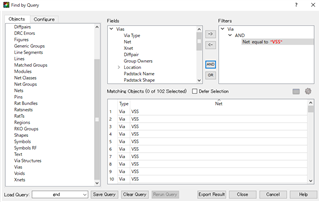

on the find filter you need to open "Find by query"

then set up the filter and save the query as shown below.

when you select the object, you check "By Saved Query" and select the one created.

in my case i created a query named "gnd."
Cancel
Vote Up +1 Vote Down

Cancel
IC14 over 5 years ago in reply to masamasa

Hi masamasa,

Many thanks for your help!! It works.

Best regards
Cancel
Vote Up 0 Vote Down

Cancel
