PCB Editor: Component value class not showing on render

eddoh

Hi there

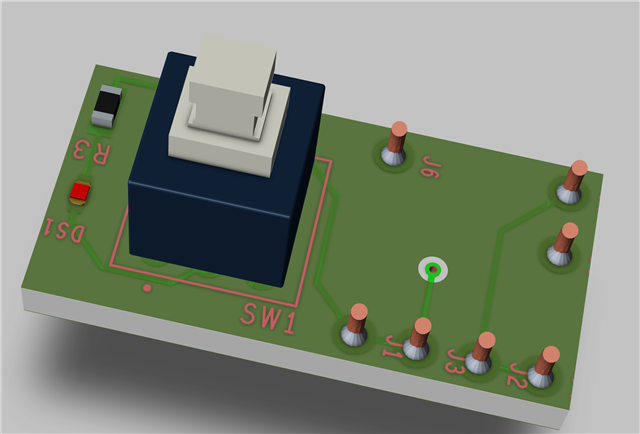

I'm trying to show values on the silkscreen, using the Component value class. Problem is that apparently the values do not show up in the renderer (not sure how this affects Gerbers etc yet) unlike the RefDefs class.

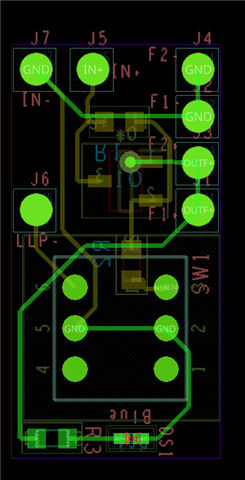

See example below. The text of the Component Value>Silkscreen_top and RefDefs>Silkscreen_top have the same size and Photo width. One shows, unlike the other. Visibility set to Global On



Refdefs (Jx) show up, Compval (IN+ etc) does not.
What could be the setting to fix this?

Thanks
