sigrity speedem simulator animation

twopoint2k

I am playing with the speedem simulator in ESD mode and using a very simple circuit to simulate what happens in the case of an ESD discharge on one trace to close by traces.

I did that with a 4 layer board and i was able to get some nice 3 animations that were showing what is happening voltage wise over time.

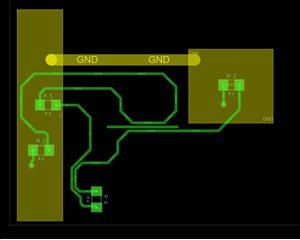

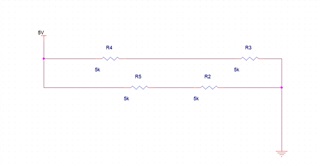

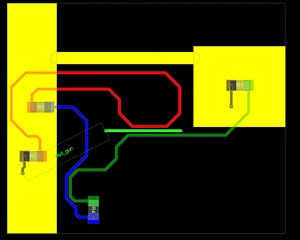

This simple circuit i get no animation at all. the simple circuit is just 4 resistors on a two layer board. see attached images.

I did the same setup steps as with the 4 layer board.

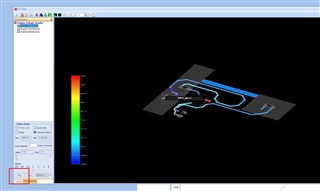

the 2D graph shows what happens over time , but somehow it can not be animated in 3D , the play button is grayed out.
