Trying to color a symbol in Orcad capture

digital1

Is there any way to color a capture part library component when creating or do i have to color it by part after Ive placed it on the capture canvas

For example when I create an LED i would like to create a red or a green LED for the color of the actual part

It gets a bit tedious having to edit the properties of LEDs to change the color

  • AvengerThanos

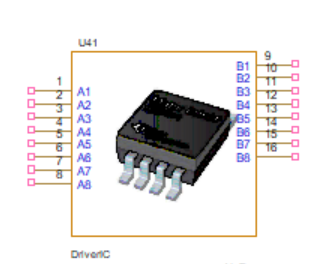

    You can actually place the images of LEDs. Its much easier that coloring each part whenever needed. In my case I place images of ICs for reference like the one shown below.
