Allegro Design Entry CIS junction (dot) too small

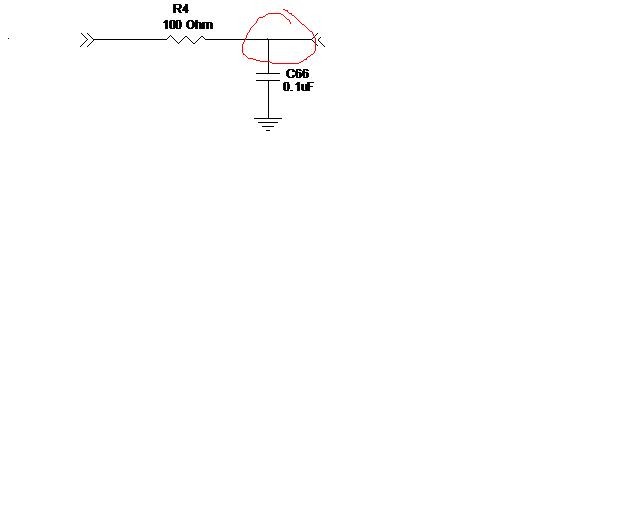

Is there a way to increase the size of the 'junction' (dot) in Allegro Design Entry CIS? We use the software for graphical communications and not necessarily just netlisting and the visibility of the 'junction' symbol is practically nonexistent.

Originally posted in cdnusers.org by layoutPL

archive over 18 years ago

If you zoom in real close it appear that it is not a dot but a dangling segment. It also appears to be off grid which would indicate you didn't have snap grid clicked on.

Originally posted in cdnusers.org by CTMusetti
Cancel
Vote Up 0 Vote Down

Cancel
archive over 18 years ago

I think that was just a distortion of the jpg image. HOWEVER, your comment led me to the answer: Options - Preferences - Grid Display - Grid Spacing - s/b 1/1 of pin to pin. THANKS!!!!

Originally posted in cdnusers.org by layoutPL
