Share Insights : Waveform Analysis

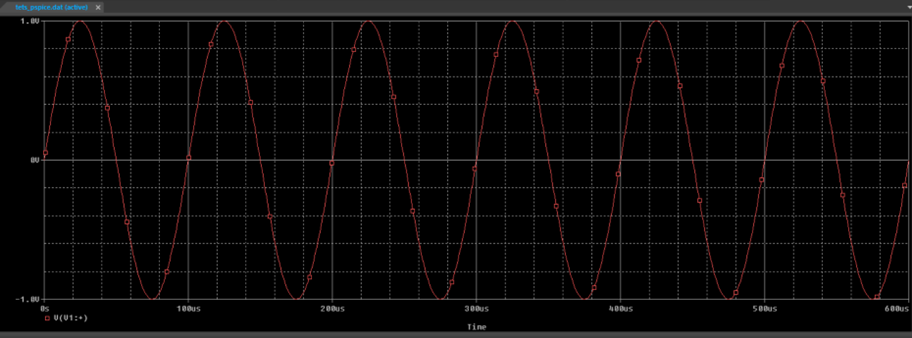

Which different methods can be used to measure the average value of a sinusoidal waveform in PSpice?

0 RohitRohan 5 months ago

Hai PCBTech,

In the PSpice Simulation window, you can go to trace >> Add Trace >> Under Functions or Macros select the dropdown and select Analog Operator and Functions.

Then Select "AVG()" and in the Left Hand Side, select the Simulation Output Variable and click on OK.

Above is one method, another is using the .MEASURE command.

Regards,

Rohit Rohan
Cancel
Vote Up 0 Vote Down

Sign in to reply

Verify Answer

Cancel
0 PCBTech 5 months ago in reply to RohitRohan

Thanks for sharing your insights Rohit !!

Can you share an example highlighting how you used .MEASURE command.
Cancel
Vote Up 0 Vote Down

Sign in to reply

Verify Answer

Cancel
