There are some problems in my .lib file, and I don't know how to solve them.

JQ202504092110

The following is my lib file device code, and I made some mistakes when I simulated it.

.SUBCKT MEMRISTOR1 Plus Minus PARAMS: Roff=16k Ron=100 D=10n uv=1e-14 p=10
Cx x 0 1p IC=0.314
E_stp stp 0 VALUE { IF(TIME >= 0, 1, 0) }
E_arg arg 0 VALUE { 0.9*(V(x)-V(stp))**2 + 0.1 }
E_f f 0 VALUE { 1 - (V(arg)**10) }
Gdx 0 x VALUE { V(Plus,Minus)/(Roff - V(x)*(Roff-Ron)) * V(f) * 1e6 }
Rmem Plus Minus R={Roff - V(x)*(Roff-Ron)}
.ENDS MEMRISTOR1

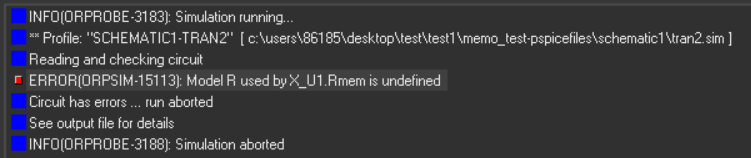

This is an error in my simulation.
