Modeling Schottky Diodes in PSpice – Understanding IS and N Parameters

Schottky diodes are indispensable part of modern hardware design. Their low forward voltage drop (typically 0.2–0.45 V versus 0.6–0.7 V for a standard PN junction) and near-zero reverse recovery time make them go-to choice in high-frequency switching power supplies, RF signal detection, OR-ing circuits, and flyback clamp networks. Wherever efficiency, speed, or tight voltage headroom matters, a Schottky is usually in the signal path.

But selecting the right device is only half the job. Simulating it accurately is the other half and that's where most designs quietly go wrong.

In PSpice, a Schottky diode's behavior is governed primarily by two model parameters: IS (reverse saturation current) and N (ideality factor). These two values define the entire shape of the I-V curve. Get them right, and your simulation predicts forward voltage drop, power dissipation, and switching behavior with confidence. Get them wrong - which happens whenever you use an unverified default model - and every downstream calculation built on that simulation is off including thermal margins, efficiency estimates and gate drive timing.

This post walks through how to tune IS and N in PSpice using nested DC sweeps, so your simulation matches the datasheet and holds up on the bench.

The diode current is governed by the equation:
I = IS (e^(V / (N·Vt)) − 1)

This indicates that both IS and N play an important role in determining the forward voltage characteristics.

IS (Reverse Saturation Current): Determines where along the voltage axis the I-V curve sits. In Schottky models, IS is typically several orders of magnitude larger than in standard PN junctions — often in the μA to mA range — which is the physical reason Schottky diodes conduct at a lower forward voltage. A lower IS shifts the curve to the right, increasing Vf for a given forward current. A higher IS shifts it left, reducing Vf.

N (Ideality Factor): Controls the steepness of the exponential rise. An ideal diode has N = 1; real Schottky devices typically fall between 1.0 and 2.2 depending on the junction technology and operating region. A higher N flattens the curve — you need more voltage to drive the same current — and also makes the forward voltage more sensitive to temperature variation.

Together, IS sets the operating point and N shapes the curve around it. Both need to be calibrated to the actual device for the simulation to be trustworthy.

Simulation Steps:

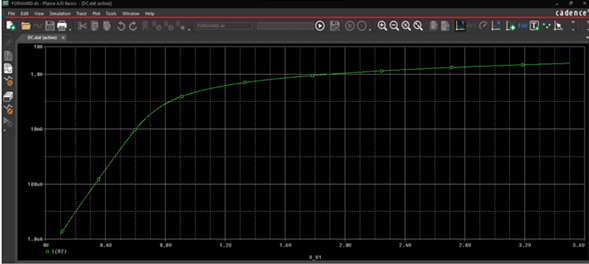

• Perform a DC sweep analysis on a forward-biased circuit.

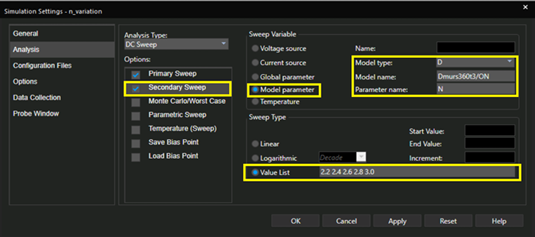

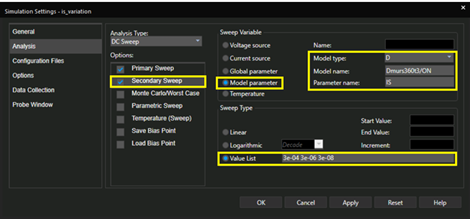

• Use Parametric sweeps to vary IS and N independently.
• Example ranges:
  • IS: 3e-04 to 3e-08
  • N: 2.2 to 3
• Observe resulting changes in forward voltage and current characteristics.

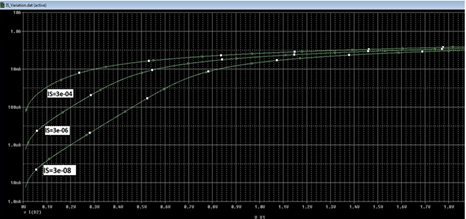

• Effect of IS (Reverse Saturation Current):

• • Forward voltage drop can be tuned by modifying IS.
  • A lower IS results in a higher forward voltage for the same current.

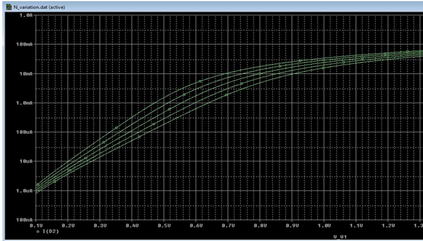

• Effect of N (Ideality Factor):
  • Controls the slope of the I-V curve.
  • Changing N modifies exponential behavior and deviation from ideal characteristics.

This approach helps in accurately matching the diode model to real device behavior and achieving reliable simulation results.

Have you run into a Schottky (or any diode) model that just wouldn’t match the datasheet or your bench data?
Drop your experience in the comments – what device, what mismatch, and how you resolved it.
