How to Visualize Normals in Actran?

Praveen Jayasheela

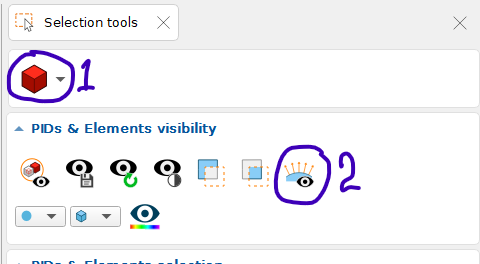

  1. Go to the bottom-right corner of the Actran VI interface and select “Selection Tools.”

  2. Choose “PID Selection Mode” from the available options.

  3. Under the Visibility toolbar, click on the “Show User Normals” icon.

  4. Then, select the PID (Property ID) of the elements for which you want to visualize the normals.
