Trouble with ADAMS/Vibration Example

I'm trying to go through an ADAMS/Vibration example. This is the 2-mass, 3-spring "Validation" model. I can get things to run but never seem to see the vibration results as shown below in the ppt. (The image below was generated from a "completed" version of the model saved in a different .cmd). How do I get this to show up? The instructions in the example just say to "Plot the magnitude frequency response from the vibration analysis" with no clues...

0 Rishikesh Mokashi over 1 year ago

Hi James,

Could you please confirm if you ae facing this issue while trying to resize/change the size of the posptprocessor window?

This is likely a bug. I have escalated this to our development team and can see that there is similar issue that has been logged on the same topic. In the meantime, I will check if there is any workaround.

Regards,
Rishi
Cancel
Vote Up 0 Vote Down

Sign in to reply

Verify Answer

Cancel
0 jpatterson over 1 year ago in reply to Rishikesh Mokashi

Rishi,

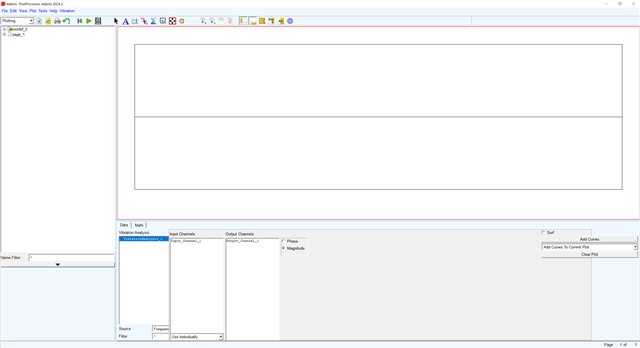

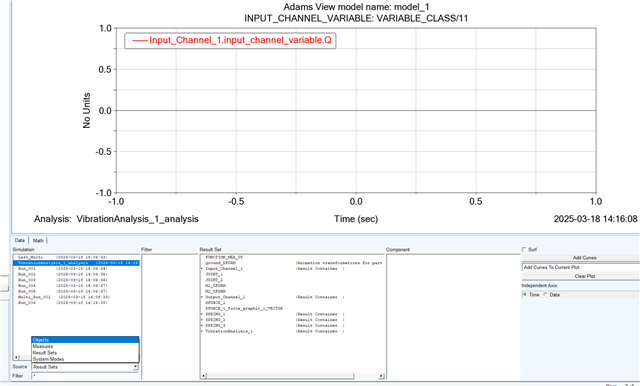

I don't see anything changing when I resize the window or if I "View>Reset GUI dimensions". Nothing ever shows up under "source" to get me to the Vibration results. I'm in ADAMS 2024.2.
Cancel
Vote Up 0 Vote Down

Sign in to reply

Verify Answer

Cancel
0 Alex Mayes over 1 year ago in reply to jpatterson

Hi James,

Just to close the loop on this for others' reference: as we discussed in the support ticket, the file being used came from an old version (circa 2003) of the Adams Vibration course. A more recent version of this file (circa 2020) works as expected with Adams v2024.2.
Cancel
