Question about Octree refinement in scFLOW?

Sunil Vytla

While defining octree it is recommended to use detailed setting to set mesh resolution for volumes/surfaces, Is there any additional way to adjust (refine/coarsen) the octree manually after generating an initial octree (without having a physical volume defined/created)? For example If I want to refine the mesh in the wake of an object, is it necessary for me to create a volume covering the wake to refine the mesh in that region?

  • 0

    Hi Sunil,

    Effectively controlling the mesh is important and refinement can be adjusted based on octree operation.
    At least you may have different way to control it:

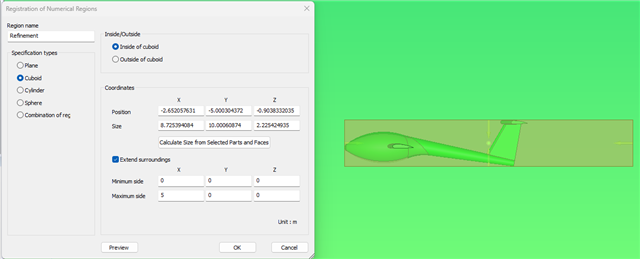

    • use of numerical region
      • this is similar to create a physical volume but it is only effective to define mesh refinement and does not over constraint mesh generation
      • this numerical region is then accessible as target volume for refinement in classic octree parameter

    • use of octree selection based on surface/level of refinement

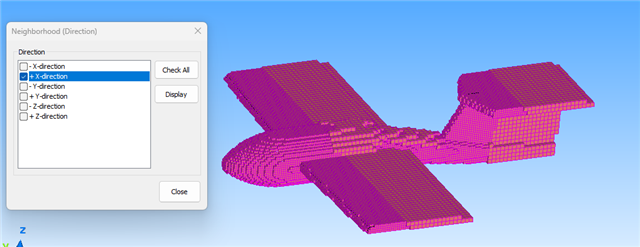

      1. octree can be displayed based on selected surface
      2. displayed octree can be propagated into specific direction +X in this case
      3. use of recursive refinement to reach certain level/target size

    Hope this is useful information for your simulation

    regards

    Laurent

  • 0 in reply to Laurent Delmas

    Thank you Laurent for your detailed reply. Between these two approaches I will be able to control my mesh refinements effectively.
