Hi everyone,
I know this question sound silly. But I'm a new user of pspice. Therefore I have a problem in finding one of the part that I needed. In which library can I found the High source? I don't know if i can call it high source because I dont really know the exact name. The model looks like digital source model but with 'HI' in it. I want to use it to make my set and reset at d-ff always 1.
Thanks in advance.
Place>Power, check that you have the SOURCE library added / selected for Place Power, you need the $D_HI symbol from the source library. (The $D_LO will be there as well)
Thank you very much.
Problem solved.
Hi,
I have another problem here. I tried to simulate my circuit but there are errors like Node is undefined and floating. But it seems that my circuit is just fine connected. Can you help me with this?

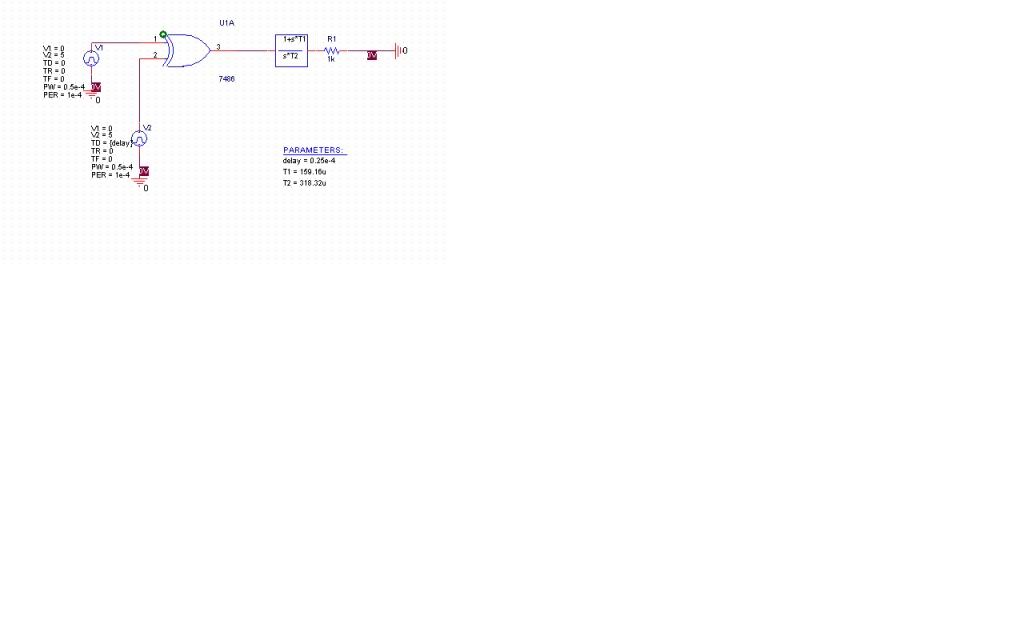

Here is the picture of my circuit:

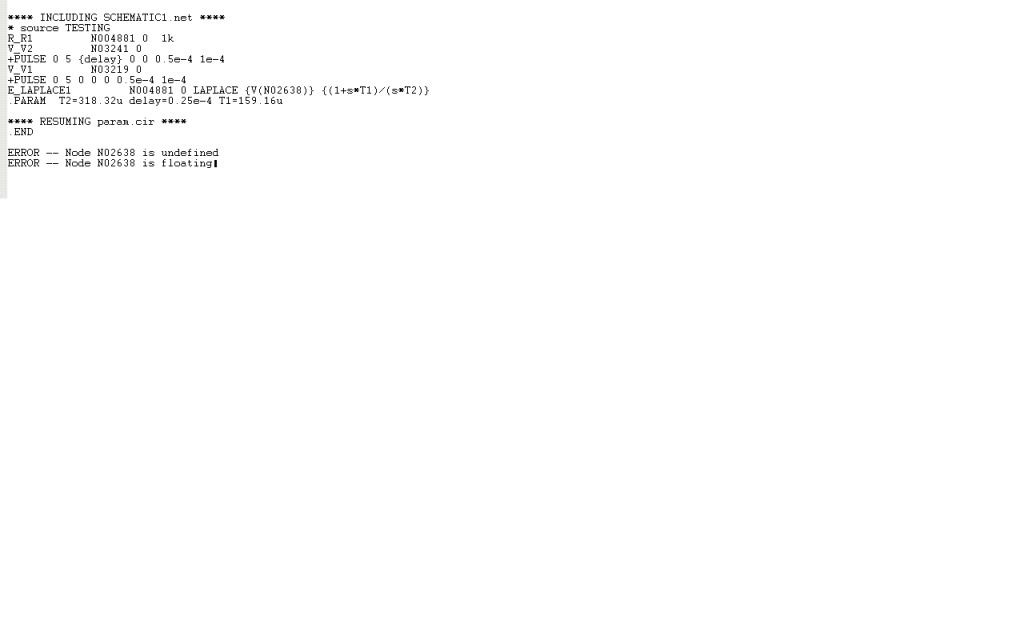

And this is the error:
The gate is from the regular Capture libraries NOT the Capture PSpice libraries, hencethe gate does not appear in the netlist and the node(s) are undefined, the error marker, green circle, on the gate will be "something like" no model found for xxx, ignoring". You need to add the relevant gate from the PSpice libraries to get teh simulation to run.
