Trouble Creating a Custom Part

Sailmike

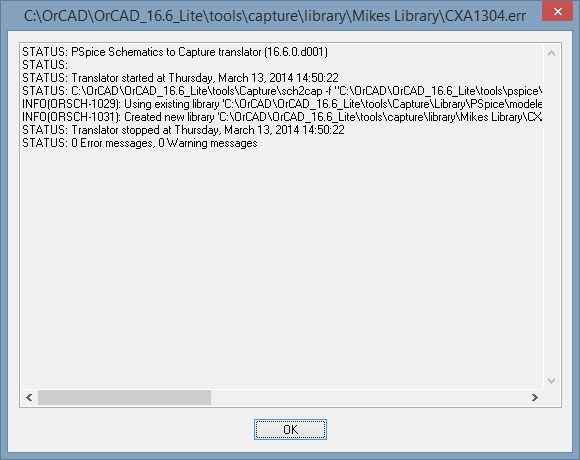

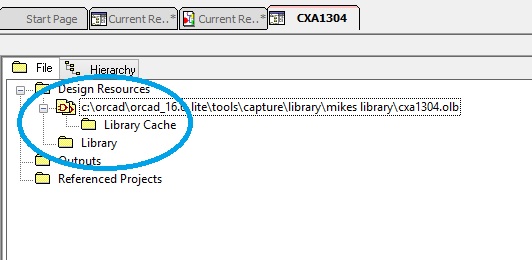

 I tried to create a custom part (CXA1304 high power LED) using the Model Editor. I used diode 1n4148 as the source in the Model Editor and named my new part CXA1304. I modified the code using the model provided by Cree. Then I exported this to the Capture Library. When I tried to edit the look of the part, no symbol showed up as the following screenshots show. What am I doing wrong?



Thanks,

Mike

Parents
  • Sailmike

     I tried using a different diode (1N4002) as the source and got the same problem. There's no symbol to redraw. What's going on?



    Thanks,

    Mike

Reply
  • Sailmike

     I tried using a different diode (1N4002) as the source and got the same problem. There's no symbol to redraw. What's going on?



    Thanks,

    Mike
